| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Programmable | Number of Bits | Settling Time | Output Type | Differential Output | Number of D/A Converters | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Mounting Style | Architecture | Supplier Device Package | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD7528CQIC DAC 8BIT A-OUT 20CDIP |
1,015 |
|
Datasheet |
- | 20-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 400ns | Current - Unbuffered | No | 2 | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | Through Hole | R-2R | 20-CERDIP | -40°C ~ 85°C | - | - |
|
AD558JDIC DAC 8BIT V-OUT 16CDIP |
3,743 |
|
Datasheet |
DACPORT® | 16-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | 8 | 3µs | Voltage - Buffered | No | 1 | Parallel | Internal | 4.5V ~ 16.5V | 4.5V ~ 16.5V | ±0.5 (Max), - | Through Hole | R-2R | 16-CDIP | 0°C ~ 70°C | - | - |
|
S-US55D2DAC |
2,368 |
|
Datasheet |
- | 68-VFQFN Exposed Pad | Tray | Active | Not Verified | 12 | - | Voltage or Current - Unbuffered | Yes | 8 | SPI | External | 3V ~ 3.6V | 3V ~ 3.6V | ±3.5 (Max), ±2 (Max) | Surface Mount | - | 68-QFN (10x10) | 0°C ~ 75°C | - | - |
|
LTC2704IGW-14#PBFIC DAC 14BIT V-OUT 44SSOP |
1,752 |
|
Datasheet |
SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 14 | 9µs (Typ) | Voltage - Buffered | No | 4 | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | Surface Mount | - | 44-SSOP | -40°C ~ 85°C | - | - |
|
AD7537LNZIC DAC 12BIT A-OUT 24DIP |
4,647 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 1.5µs | Current - Unbuffered | No | 2 | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±1 (Max) | Through Hole | R-2R | 24-PDIP | -40°C ~ 85°C | - | - |
|
AD7834ANZIC DAC 14BIT V-OUT 28DIP |
3,188 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | Not Verified | 14 | 10µs (Typ) | Voltage - Buffered | No | 4 | SPI | External | ±11.4V ~ 15.75V | 5V | ±2 (Max), ±0.9 (Max) | Through Hole | R-2R | 28-PDIP | -40°C ~ 85°C | - | - |
|
AD9775BSVZIC DAC 14BIT A-OUT 80TQFP |
4,999 |
|
Datasheet |
TxDAC+® | 80-TQFP Exposed Pad | Tray | Active | Not Verified | 14 | 11ns (Typ) | Current - Unbuffered | Yes | 2 | Parallel | External, Internal | 3.1V ~ 3.5V | 3.1V ~ 3.5V | ±1.5, ±1 | Surface Mount | Oversampling Interpolating DAC | 80-TQFP-EP (12x12) | -40°C ~ 85°C | - | - |
|
AD7547KPZIC DAC 12BIT A-OUT 28PLCC |
2,938 |
|
Datasheet |
- | 28-LCC (J-Lead) | Tube | Active | Not Verified | 12 | 1.5µs | Current - Unbuffered | No | 2 | Parallel | External | 10.8V ~ 16.5V | 10.8V ~ 16.5V | ±0.5 (Max), ±1 (Max) | Surface Mount | R-2R | 28-PLCC (11.51x11.51) | -40°C ~ 85°C | - | - |
|
MAX526CENG+IC DAC 12BIT QUAD CALIB 24-DIP |
2,773 |
|
Datasheet |
- | 24-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | 12 | 3µs (Typ) | Voltage - Buffered | No | 4 | Parallel | External | -4.5V ~ -5.5V, 10.8V ~ 16.5V | -4.5V ~ -5.5V, 10.8V ~ 16.5V | ±0.15, ±1 (Max) | Through Hole | R-2R | 24-PDIP | -40°C ~ 85°C | - | - |
|

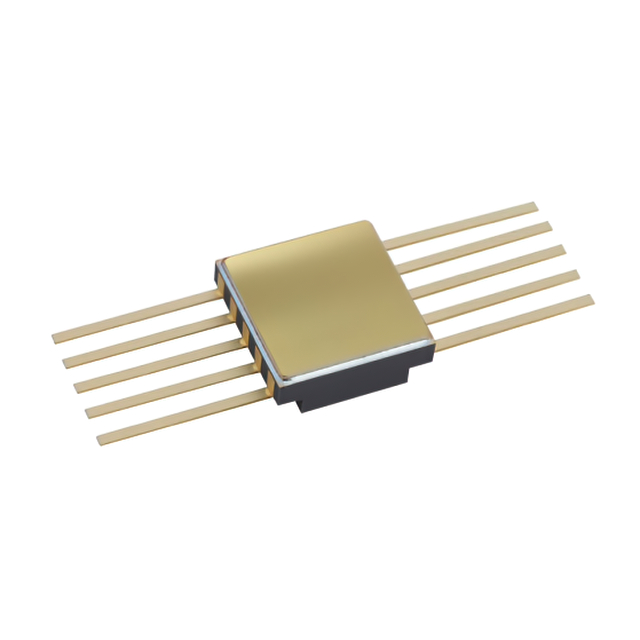

RH-DAC121K1RAD-HARD, 12-BIT D/A CONVERTER |
3,569 |
|
Datasheet |
- | 10-CFlatpack | Strip | Active | - | 12 | 13µs | Voltage - Buffered | No | 1 | SPI | Internal | 2.3V ~ 3.6V | 2.3V ~ 3.6V | ±4 (Max), ±0.7 (Max) | Surface Mount | - | 10-CFlatpack | -55°C ~ 125°C | - | - |
|
ADAU1966WBSTZIC DAC 24BIT V-OUT 80LQFP |
2,434 |
|
Datasheet |
- | 80-LQFP | Tray | Active | Not Verified | 24 | - | Voltage - Unbuffered | Yes | 16 | I2C, SPI | Internal | 5V | 2.25V ~ 3.6V | - | Surface Mount | Sigma-Delta | 80-LQFP (14x14) | -40°C ~ 105°C | Automotive | - |
|
UCC5950DIC SER D/A CONVRTR 10-BIT 8-SOIC |
675 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 8-SOIC | - | - | - |
|
DAC0806LCNIC DAC 16DIP |
545 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | Through Hole | - | 16-DIP | - | - | - |
|
|
AD45316XZ-R7SINGLE 10UA CMOS, ZERO CROSSOVER |
4,173 |
|
Datasheet |
* | - | Cut Tape (CT) | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MCP48FEB08-E/MQIC DAC 8BIT V-OUT 20VQFN |
2,718 |
|
Datasheet |
MCP | 20-VQFN Exposed Pad | Tube | Active | Not Verified | 8 | 7.8µs (Typ) | Voltage - Unbuffered | No | 8 | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.1, ±0.0125LSB | Surface Mount | - | 20-VQFN (5x5) | -40°C ~ 125°C | - | - |
|
MX7524KESEIC DAC 8BIT A-OUT 16SOIC |
100 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Not Verified | 8 | 350ns | Current - Unbuffered | Yes | 1 | Parallel | External | 4.5V ~ 5.5V, 10.8V ~ 13.2V, 13.5V ~ 16.5V | 4.5V ~ 5.5V, 10.8V ~ 13.2V, 13.5V ~ 16.5V | ±0.25 (Max), ±1 (Max) | Surface Mount | Multiplying DAC, R-2R | 16-SOIC | - | - | - |
|
TVP3703-135CFNPALETTE DAC, 1600 X 1280 PIXELS |
4,885 |
|
Datasheet |
* | - | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PM7543HPCIC DAC 12BIT A-OUT 20PLCC |
2,722 |
|
Datasheet |
- | 20-LCC (J-Lead) | Bulk | Active | Not Verified | 12 | 380ns | Current - Unbuffered | Yes | 1 | Serial | External | 4.75V ~ 5.25V | 5.25V | - | Surface Mount | Multiplying DAC, R-2R | 20-PLCC (9x9) | - | - | - |
|
DAC8228FRIC DAC 8BIT V-OUT 20DIP |
1,809 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Bulk | Active | Not Verified | 8 | 5µs | Voltage - Buffered | No | 2 | Parallel | External | 12V ~ 15V | 12V ~ 15V | ±1 (Max), ±1 (Max) | Through Hole | R-2R | 20-DIP | -40°C ~ 85°C | - | - |
|
AD5821BCBZ-REEL7IC DAC 10BIT A-OUT 9WLCSP |
1,517 |
|
Datasheet |
- | 9-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Not Verified | 10 | 250µs (Typ) | Current - Buffered | No | 1 | I2C | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5, ±1 (Max) | Surface Mount | Current Sink | 9-WLCSP (1.52x1.69) | -40°C ~ 85°C | - | - |
