| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKN0204000SWITCH SLIDE DIP SPST 0.1A 24V |
716 |
|
Datasheet |
IKN | Tape & Reel (TR) | Obsolete | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | -40°C ~ 100°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

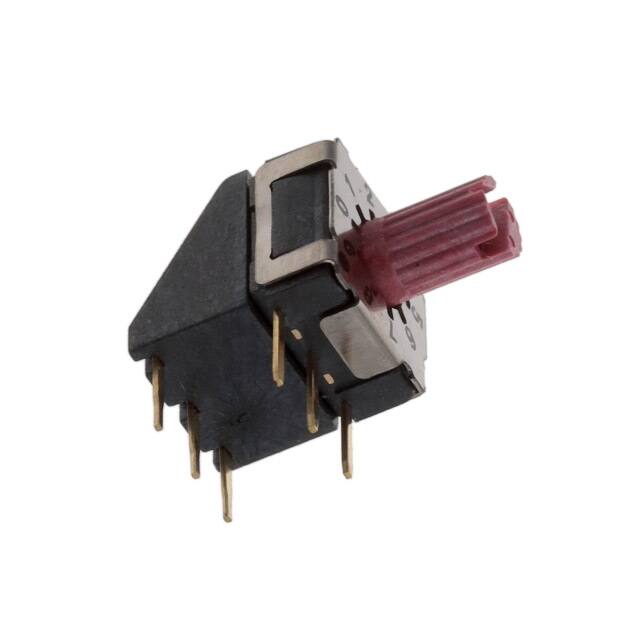

RD07B10RVBTSWITCH ROTARY DIP BCD 0.1A 50V |
193 |
|
Datasheet |
RD07 | Tube | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
DHS10CSWITCH SLIDE DIP SPST 0.1A 6V |
388 |
|
Datasheet |
DHS | Bulk | Active | SPST | 10 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | -40°C ~ 80°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
1825428-6SWITCH SLIDE DIP SPST 0.1A 24V |
2,440 |
|
Datasheet |
ARE | Tube | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
GDH10SA04SWITCH SLIDE DIP SPST 0.025A 24V |
2,289 |
|
Datasheet |
GDH | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
5161390-5SWITCH SLIDE DIP SPST 0.025A 50V |
3,123 |
|
Datasheet |
DIP | Box | Active | SPST | 5 | 50VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
90HBJ08PRTSWITCH SLIDE DIP SPST 0.025A 24V |
3,751 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
1-1825013-0SWITCH ROTARY DIP BCD 0.4VA 20V |
4,384 |
|
Datasheet |
MRD | Tape & Reel (TR) | Obsolete | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | No |
|
|
94HBB10WRTSWITCH ROTARY DIP BCD 0.1A 50V |
1,667 |
|
Datasheet |
94H | Tape & Reel (TR) | Active | BCD | 10 | 50VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
SMR7110C-1ESW ROTARY DIP BCD COMP 0.03A 15V |
1,906 |
|
Datasheet |
SMR | Tape & Reel (TR) | Active | BCD Complement | 10 | 15VDC | Rotary for Tool | Flush, Recessed | 30mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6SN-6101-R100SWITCH SLIDE DIP SPST 0.025A 24V |
114 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
90HBW05PRTSWITCH SLIDE DIP SPST 0.025A 24V |
2,185 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
CRE10ROTP1CSWITCH ROTARY DIP BCD 0.15A 42V |
3,252 |
|
Datasheet |
CRE | Bulk | Active | BCD | 10 | 42VDC | Rotary for Tool | Raised | 150mA | Brass | Gold | 0.370" (9.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6H-0102-R100SWITCH SLIDE DIP SPST 0.025A 24V |
1,890 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
JS0304PP4SWITCH PIANO DIP SPST 0.025A 24V |
4,922 |
|
Datasheet |
JS | Bulk | Active | SPST | 4 | 24VDC | Piano | Raised | 25mA | Phosphor Bronze | Gold | 0.362" (9.20mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
GDH06SATR04SWITCH SLIDE DIP SPST 0.025A 24V |
7,285 |
|
Datasheet |
GDH | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
3-5435640-0SWITCH ROCKER DIP SPST 0.06A 5V |
1,986 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 3 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
76RSB06TSWITCH ROCKER DIP SPST 0.15A 30V |
1,059 |
|
Datasheet |
76 | Bulk | Active | SPST | 6 | 30VDC | Rocker | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
78RB06STSWITCH SLIDE DIP SPST 0.15A 30V |
1,528 |
|
Datasheet |
78 | Bulk | Active | SPST | 6 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
78B05SRATSWITCH SLIDE DIP SPST 0.15A 30V |
3,465 |
|
Datasheet |
78 | Bulk | Active | SPST | 5 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
