| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-2LPSTDSWITCH SLIDE DIP SPST 0.1A 20V |
1,368 |
|
Datasheet |
210 | Tube | Active | SPST | 2 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-2MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
3,379 |
|
Datasheet |
210 | Tube | Active | SPST | 2 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-2LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,792 |
|
Datasheet |
210 | Tube | Active | SPST | 2 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-2MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,824 |
|
Datasheet |
210 | Tube | Active | SPST | 2 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-3LPSSWITCH SLIDE DIP SPST 0.1A 20V |
2,745 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

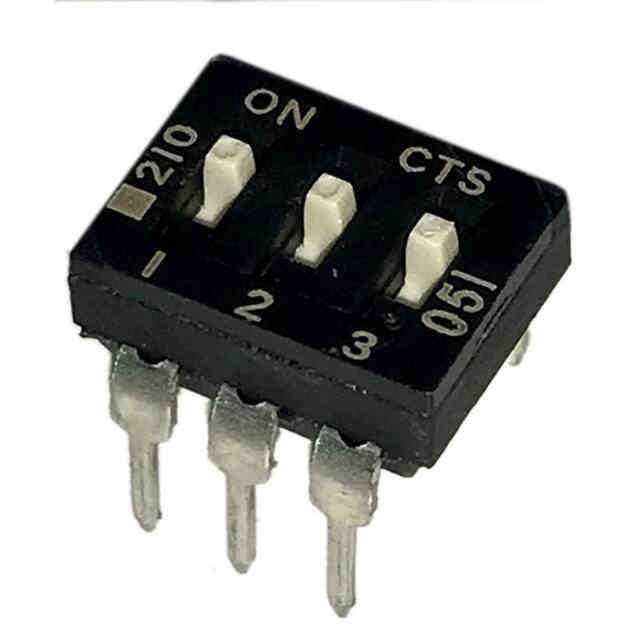

210-3ESSWITCH SLIDE DIP SPST 0.1A 20V |
1,251 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3LPSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,021 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3MSFSWITCH SLIDE DIP SPST 0.1A 20V |
4,353 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,704 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,461 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3MSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,192 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

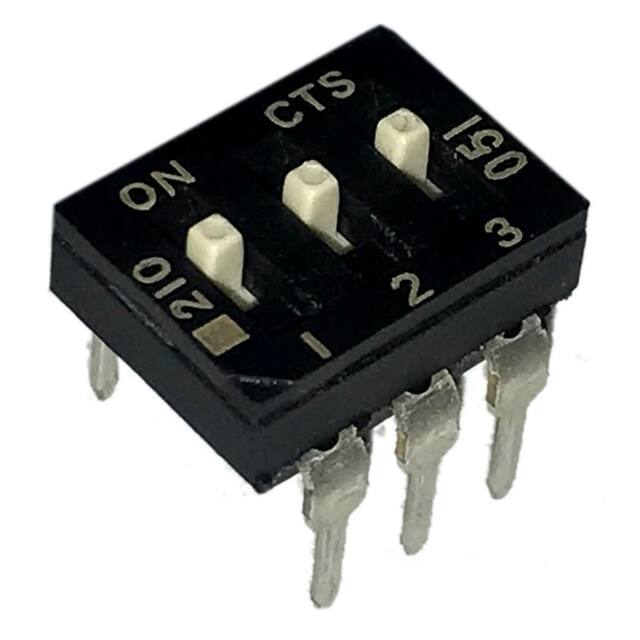

210-3ESDSWITCH SLIDE DIP SPST 0.1A 20V |
2,577 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,311 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
1,826 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
210-3ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,194 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|
QFPF07RDDIP SWITCHES / SIP SWITCHES |
2,495 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
210-3LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,891 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
210-3MSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,971 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-3LPSTFSWITCH SLIDE DIP SPST 0.1A 20V |
4,185 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
210-3MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
2,010 |
|
Datasheet |
210 | Tube | Active | SPST | 3 | 20VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
