| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-215RASSWITCH SLIDE DIP DPST 0.05A 24V |
3,054 |
|
Datasheet |
206RA | Tube | Active | DPST | 5 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals | No |
|

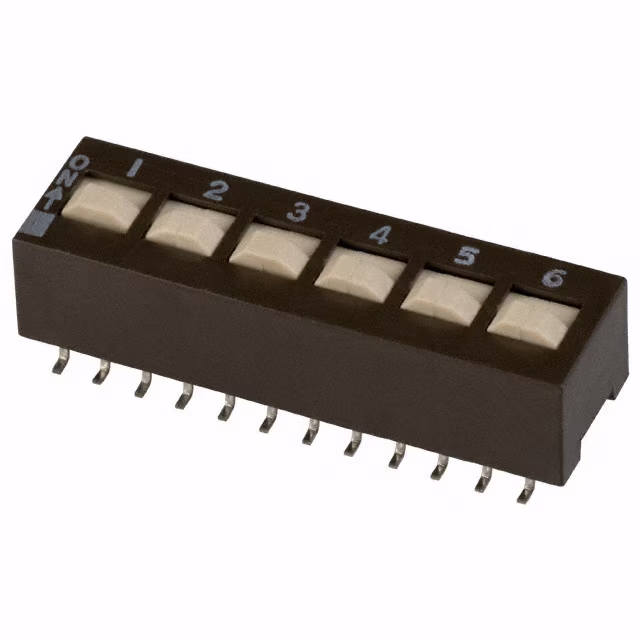

204-216STSWITCH SLIDE DIP DPST 0.05A 24V |
2,067 |
|
Datasheet |
204 | Tube | Active | DPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
NDS06VDIP SWITCH ND STANDARD |
4,177 |
|
Datasheet |
NDS | Bulk | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DM06TRDIP SWITCH DM LOW PROFILE |
1,684 |
|
Datasheet |
DM | Bulk | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
206-312RASWITCH SLIDE DIP 3PST 0.05A 24V |
2,887 |
|
Datasheet |
206RA | Tube | Active | 3PST | 2 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
194-12MSTSWITCH PIANO DIP SPST 0.05A 24V |
4,387 |
|
Datasheet |
194 | Tube | Active | SPST | 12 | 24VDC | Piano | Raised | 50mA | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
ADP02SASWITCH PIANO DIP SPST 0.025A 24V |
4,273 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 2 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
206-124RASTSWITCH SLIDE DIP SPDT 0.05A 24V |
3,204 |
|
Datasheet |
206RA | Tube | Active | SPDT | 4 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
204-122LPSTSWITCH SLIDE DIP SPDT 0.05A 24V |
2,204 |
|
Datasheet |
204 | Tube | Active | SPDT | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 50mA | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
NDI06SSWITCH SLIDE DIP SPST 0.025A 24V |
4,407 |
|
Datasheet |
NDI | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
1814424-2SWITCH SLIDE DIP SPST 0.025A 24V |
2,424 |
|
Datasheet |
ADF | Tape & Box (TB) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KR12ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,897 |
|
Datasheet |
KR | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
KR12RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,216 |
|
Datasheet |
KR | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
206-126SWITCH SLIDE DIP SPDT 0.05A 24V |
3,387 |
|
Datasheet |
206 | Tube | Active | SPDT | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
KAN1104RR-OFFSWITCH SLIDE DIP SPST 0.025A 24V |
4,289 |
|
Datasheet |
KAN | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | Yes |
|
|
204-122STRSWITCH SLIDE DIP SPDT 0.05A 24V |
2,284 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPDT | 2 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
KAS2105ETSWITCH SLIDE DIP SPST 0.025A 24V |
1,555 |
|
Datasheet |
KAS | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
206-216STSWITCH SLIDE DIP DPST 0.05A 24V |
3,924 |
|
Datasheet |
206 | Tube | Active | DPST | 6 | 24VDC | Slide (Standard) | Raised | 50mA | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | -55°C ~ 85°C | 0.100" (2.54mm), Full | Epoxy Sealed Terminals, Tape Seal | Yes |
|
|
KAE10TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,954 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
KAE12LGGRSWITCH SLIDE DIP SPST 0.025A 24V |
4,998 |
|
Datasheet |
KAE | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Copper | Gold | 0.176" (4.47mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
