| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRE10RRDP0SRSW ROTARY DIP BCD 150MA 42VDC |
4,259 |
|
Datasheet |
CRE | Tape & Reel (TR) | Active | BCD | 10 | 42VDC | Rotary for Tool | Raised | 150mA | Brass | Gold | 0.307" (7.80mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
RDMAC16P1TSW ROTARY DIP HEX COMP 0.1A 42V |
1,992 |
|
Datasheet |
RDM | Tube | Active | Hexadecimal Complement | 16 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
|
RDMAR10P1TSWITCH ROTARY DIP BCD 0.1A 42V |
4,186 |
|
Datasheet |
RDM | Tube | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | -60°C ~ 125°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
SD04H1SBRSWITCH SLIDE DIP SPST 0.1A 25V |
1,954 |
|
Datasheet |
SD | Tape & Reel (TR) | Active | SPST | 4 | 25VDC | Slide (Standard) | Raised | 100mA | Beryllium Copper | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

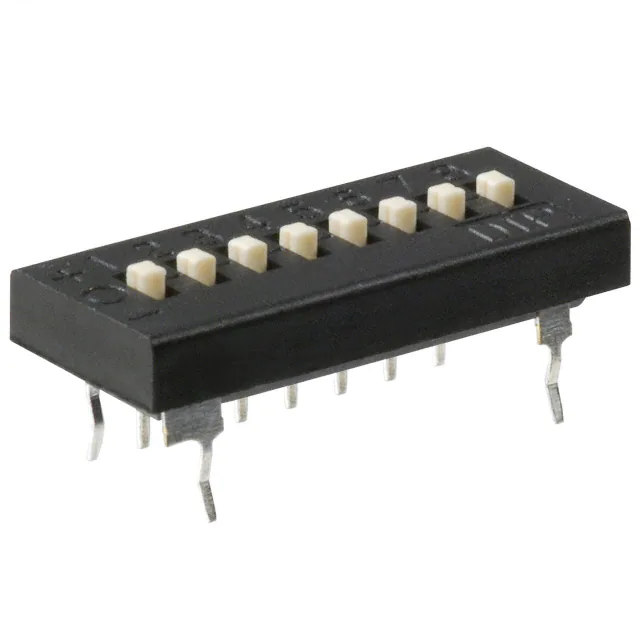

KAT1108ESWITCH SLIDE DIP SPDT 0.025A 24V |
4,212 |
|
Datasheet |
KAT | Tube | Obsolete | SPDT | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | - | 0.100" (2.54mm), Full | - | No |
|
RTE1000G34SW ROTARY DIP GRAY CODE 0.1A 30V |
2,199 |
|
Datasheet |
RTE | Bulk | Active | Gray Code | 10 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RTE10B0G14SWITCH ROTARY DIP BCD 0.1A 30V |
1,360 |
|
Datasheet |
RTE | Bulk | Active | BCD | 10 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RTE10F0G14SWITCH ROTARY DIP BCD 0.1A 30V |
3,203 |
|
Datasheet |
RTE | Bulk | Active | BCD | 10 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RTE1602G44SWITCH ROTARY DIP HEX 0.1A 30V |
2,935 |
|
Datasheet |
RTE | Bulk | Active | Hexadecimal | 16 | 30VDC | Rotary with Shaft | Raised | 100mA | Bronze | Gold | 0.322" (8.18mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CHS-08TB2SWITCH SLIDE DIP SPST 0.1A 6V |
4,066 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
CHS-08TA2SWITCH SLIDE DIP SPST 0.1A 6V |
2,528 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
CVS-03TB-1SWITCH SLIDE DIP SPST 0.1A 6V |
3,441 |
|
Datasheet |
CVS | Tape & Reel (TR) | Active | SPST | 3 | 6VDC | Slide (Standard) | Raised | 100mA | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.039" (1.00mm) | - | No |
|
|
ADP10SWITCH PIANO DIP SPST 0.025A 24V |
4,619 |
|
Datasheet |
ADP | Tube | Obsolete | SPST | 10 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADPA10SWITCH PIANO DIP SPST 0.025A 24V |
3,776 |
|
Datasheet |
ADPA | Tube | Obsolete | SPST | 10 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
CRE10RRDM0CSW ROTARY DIP BCD 150MA 42VDC |
4,024 |
|
Datasheet |
CRE | Bulk | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Brass | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
CRE10RRDM1CSW ROTARY DIP BCD 150MA 42VDC |
3,793 |
|
Datasheet |
CRE | Bulk | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | Brass | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
CRE16RRDL0SRSW ROTARY DIP HEX 150MA 42VDC |
1,890 |
|
Datasheet |
CRE | Tape & Reel (TR) | Active | Hexadecimal | 16 | 42VDC | Rotary with Shaft | Raised | 150mA | Brass | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
CAS-220A2SWITCH SLIDE DPDT 0.1A 6V |
1,075 |
|
Datasheet |
CAS | Bulk | Active | DPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | J Lead | -40°C ~ 85°C | - | - | - |
|
|
CAS-220B2SWITCH SLIDE DPDT 0.1A 6V |
2,705 |
|
Datasheet |
CAS | Bulk | Active | DPDT | - | - | Flush | - | 100mA | Copper Alloy | Gold | - | Surface Mount | Gull Wing | -40°C ~ 85°C | - | - | - |
|
|
KAN1106RSWITCH SLIDE DIP SPST 0.025A 24V |
1,300 |
|
Datasheet |
KAN | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
