| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDI09HSWITCH SLIDE DIP SPST 0.025A 24V |
3,389 |
|
Datasheet |
NDI | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
RDMAR16R2TSWITCH ROTARY DIP HEX 0.1A 42V |
1,085 |
|
Datasheet |
RDM | Tube | Active | Hexadecimal | 16 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -60°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
|
RDMAR16R1TSWITCH ROTARY DIP HEX 0.1A 42V |
2,262 |
|
Datasheet |
RDM | Tube | Active | Hexadecimal | 16 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -60°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
GDH04SSWITCH SLIDE DIP SPST 0.025A 24V |
3,054 |
|
Datasheet |
GDH | Tube | Obsolete | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
CFS-1003MCSWITCH SLIDE DIP SPST 0.1A 6V |
3,484 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
CFS-1003MBSWITCH SLIDE DIP SPST 0.1A 6V |
3,259 |
|
Datasheet |
CFS | Tube | Active | SPST | 10 | 6VDC | Slide (Standard) | Raised | 100mA | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
NDPL04VDIP SWITCH DP PIANO STYLE |
4,845 |
|
Datasheet |
NDPL | Bulk | Active | SPST | 4 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
GDB08SW ROCKER DIP SPST 0.025A 24V |
1,446 |
|
Datasheet |
GDB | Bulk | Obsolete | SPST | 8 | 24VDC | Rocker | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
435166-2SW ROCKER DIP SPST 0.025A 24V |
3,697 |
|
Datasheet |
7000 | Tube | Active | SPST | 4 | 24VDC | Rocker | Raised | 25mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
|
TDP10H0SBD1RSWITCH PIANO DIP SPST 25MA 24VDC |
1,149 |
|
Datasheet |
TDP | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
90B04TSWITCH SLIDE DIP SPST 0.025A 24V |
1,652 |
|
Datasheet |
90B | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
A6T-7102SWITCH SLIDE DIP SPST 0.025A 24V |
3,815 |
|
Datasheet |
A6T | Tube | Active | SPST | 7 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|

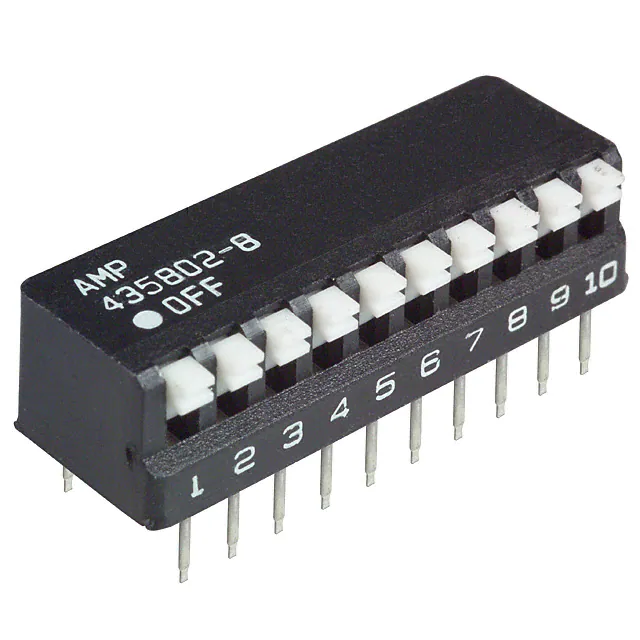

435802-8SWITCH PIANO DIP SPST 0.025A 24V |
1,118 |
|
Datasheet |
7000 | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
|
RDTGR10R2TSWITCH ROTARY DIP BCD 0.15A 42V |
1,147 |
|
Datasheet |
RDT | Tube | Active | BCD | 10 | 42VDC | Rotary with Knob | Raised | 150mA | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
RDTCR10P1TSWITCH ROTARY DIP BCD 0.15A 42V |
1,383 |
|
Datasheet |
RDT | Tube | Active | BCD | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
|
MRD10SWITCH ROTARY DIP BCD 0.4VA 20V |
2,471 |
|
Datasheet |
MRD | Tube | Obsolete | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | -10°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | No |
|
|
DRM16SWITCH ROTARY DIP HEX 0.4VA 20V |
3,208 |
|
Datasheet |
DR | Tube | Obsolete | Hexadecimal | 16 | 20VAC/DC | Rotary with Shaft | Raised | 0.4VA | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
1-1825007-8SWITCH ROTARY DIP HEX 0.4VA 20V |
3,627 |
|
Datasheet |
DRD | Tube | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.291" (7.39mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
IKN0604000SWITCH SLIDE DIP SPST 0.1A 24V |
3,511 |
|
Datasheet |
IKN | Tape & Reel (TR) | Obsolete | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | -40°C ~ 100°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
SD-2210SWITCH ROTARY DIP BCD 0.1A 5V |
1,674 |
|
Datasheet |
SD-2000 | Bulk | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
