| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD16CM0CBSW ROTARY DIP HEX COMP 0.4VA 20V |
4,490 |
|
Datasheet |
CD | Tube | Active | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | Yes |
|
2-1825013-0SWITCH ROTARY DIP HEX 0.4VA 20V |
3,552 |
|
Datasheet |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | Process Sealed | No |
|
78RB03SRATSWITCH SLIDE DIP SPST 0.15A 30V |
3,290 |
|
Datasheet |
78 | Tube | Active | SPST | 3 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
78RB06SRATSWITCH SLIDE DIP SPST 0.15A 30V |
4,794 |
|
Datasheet |
78 | Tube | Active | SPST | 6 | 30VDC | Slide (Standard) | Flush, Recessed | 150mA | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
FR01FC16PSW ROTARY DIP HEX COMP 0.1A 5V |
1,103 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
FR01KC10PSW ROTARY DIP BCD COMP 0.1A 5V |
2,131 |
|
Datasheet |
FR01 | Bulk | Active | BCD Complement | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
FR01KR16PSWITCH ROTARY DIP HEX 0.1A 5V |
2,346 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

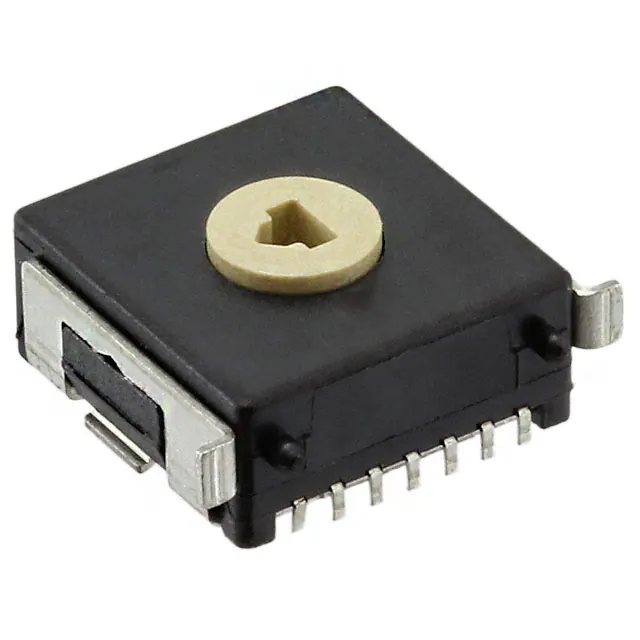

P56SMT964LTRSW ROTARY DIP GRAY CODE 0.1A 24V |
4,337 |
|
Datasheet |
P56 | Tape & Reel (TR) | Obsolete | Gray Code | 64 | 24VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.480" (12.19mm) | Surface Mount, Right Angle | Gull Wing | -25°C ~ 95°C | 0.050" (1.27mm), Half | - | Yes |
|
A6HR-6104-R100SWITCH PIANO DIP SPST 0.025A 24V |
1,648 |
|
Datasheet |
A6HR | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
|
76PRB07STSWITCH PIANO DIP SPST 0.15A 30V |
2,232 |
|
Datasheet |
76 | Tube | Active | SPST | 7 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
76PRB08STSWITCH PIANO DIP SPST 0.15A 30V |
1,215 |
|
Datasheet |
76 | Tube | Active | SPST | 8 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
ND3KR10H-RSWITCH ROTARY DIP BCD 0.1A 5V |
2,377 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | -25°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | Yes |
|
|
ND3KR16H-RSWITCH ROTARY DIP HEX 0.1A 5V |
3,244 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 5VDC | Rotary with Shaft | Raised | 100mA | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | -25°C ~ 85°C | 0.050" (1.27mm), Half | Epoxy Sealed Terminals | Yes |
|
|
76PRB10TSWITCH PIANO DIP SPST 0.15A 30V |
4,088 |
|
Datasheet |
76 | Tube | Active | SPST | 10 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
76HPSB10GWTSWITCH PIANO DIP SPST 0.15A 30V |
1,711 |
|
Datasheet |
76HP | Bulk | Active | SPST | 10 | 30VDC | Piano | Raised | 150mA | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DHNF10FTDIP SWITCH IKH HALF PITCH |
3,289 |
|
Datasheet |
DHN | Bulk | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | No |
|
78HJ04GWRTSWITCH SLIDE DIP SPDT 0.15A 30V |
2,313 |
|
Datasheet |
78H | Tape & Reel (TR) | Active | SPDT | 4 | 30VDC | Slide (Standard) | Raised | 150mA | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
147353-2SWITCH ROCKER DIP SPST |
4,697 |
|
Datasheet |
7100 | Tube | Active | SPST | 5 | - | Rocker | Flush, Recessed | - | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | - | 0.100" (2.54mm), Full | - | No |
|
|
NDA12TVDIP SWITCH DA RIGHT ANGLE |
3,549 |
|
Datasheet |
NDA | Bulk | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P60ASMT101DIP ROTARY SWITCH P60 10MM |
2,652 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
