| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65501RTDIP ROTARY SWITCH P60 10MM |
1,377 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FD02FR10H-RSWITCH ROTARY DIP BCD 100MA 5V |
1,048 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | BCD | 10 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | - | - | No |
|
|
FD02FC16H-RSW ROTARY DIP HEX COMP 100MA 5V |
4,109 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | - | - | No |
|
|
FD02FR16H-RSWITCH ROTARY DIP HEX 100MA 5V |
4,400 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | 0.126" (3.20mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | - | - | No |
|
|
FD02FC10H-RSW ROTARY DIP BCD COMP 100MA 5V |
4,677 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | BCD Complement | 10 | 20VAC/DC | Rotary for Tool | Flush | 0.4VA | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | - | - | No |
|
|
PT65301L508SWITCH ROTARY DIP BCD 0.15A 24V |
1,183 |
|
Datasheet |
PT65 | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
|
PT65302L508SW ROTARY DIP BCD COMP 0.15A 24V |
2,884 |
|
Datasheet |
PT65 | Tube | Active | BCD Complement | 10 | 24VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
|
PT65301L254SWITCH ROTARY DIP BCD 0.15A 24V |
1,871 |
|
Datasheet |
PT65 | Tube | Active | BCD | 10 | 24VDC | Rotary with Shaft | Raised | 150mA | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
|
P65SMT702DIP ROTARY SWITCH P60 10MM |
3,705 |
|
Datasheet |
P65 | Bulk | Active | BCD Complement | 10 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -60°C ~ 125°C | 0.100" (2.54mm), Full | - | No |
|
|
P36802L254DIP ROTARY SWITCH P25 7MM LOW |
3,913 |
|
Datasheet |
P36 | Bulk | Active | BCD Complement | 10 | 42VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P36106L254DIP ROTARY SWITCH P25 7MM LOW |
3,451 |
|
Datasheet |
P36 | Bulk | Active | Hexadecimal Complement | 16 | 42VDC | Rotary for Tool | Flush, Recessed | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P36801L254DIP ROTARY SWITCH P25 7MM LOW |
4,517 |
|
Datasheet |
P36 | Bulk | Active | BCD | 10 | 42VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P36302L254DIP ROTARY SWITCH P25 7MM LOW |
3,234 |
|
Datasheet |
P36 | Bulk | Active | BCD Complement | 10 | 42VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P36301L254DIP ROTARY SWITCH P25 7MM LOW |
1,616 |
|
Datasheet |
P36 | Bulk | Active | BCD | 10 | 42VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P36103L254SWITCH ROTARY DIP HEX 0.1A 24V |
1,380 |
|
Datasheet |
P36 | Tube | Active | Hexadecimal | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -50°C ~ 125°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
|
P36101L254SWITCH ROTARY DIP BCD 0.1A 24V |
1,051 |
|
Datasheet |
P36 | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 100mA | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | -50°C ~ 125°C | 0.100" (2.54mm), Full | Sealed - Flux Protection | Yes |
|
435470-5SW ROCKER DIP DPDT 0.025A 24V |
4,115 |
|
Datasheet |
7000 | Tube | Active | DPDT | 1 | 24VDC | Rocker | Raised | 25mA | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
|
P60AS706DIP ROTARY SWITCH P60 10MM |
4,425 |
|
Datasheet |
P60AS | Bulk | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | Stainless Steel | Gold | 0.244" (6.20mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
P36S301DIP ROTARY SWITCH P25 7MM LOW |
4,780 |
|
Datasheet |
P36 | Bulk | Active | BCD | 10 | 42VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.151" (3.84mm) | Surface Mount | Gull Wing | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
|

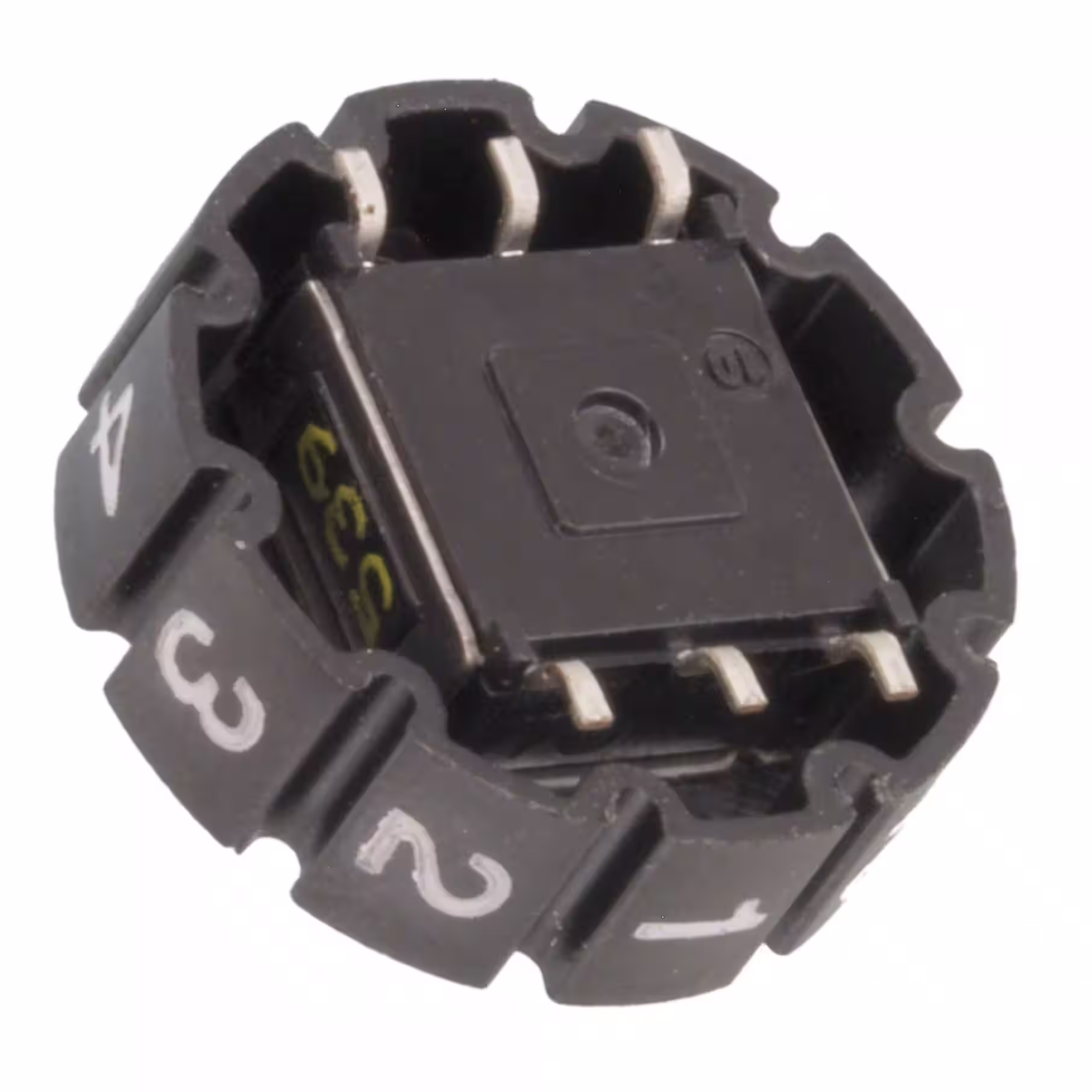

DH101ALSMT002SWITCH ROTARY DIP BCD 0.1A 42V |
1,623 |
|
Datasheet |
DH | Tape & Reel (TR) | Active | BCD | 10 | 42VDC | Rotary with Knob | Raised | 100mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -50°C ~ 125°C | 0.100" (2.54mm), Full | - | Yes |
