| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA-5071DEWSW ROTARY DIP HEX COMP 0.1A 5V |
3,863 |
|
Datasheet |
SA-5000 | Tray | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 75°C | 0.100" (2.54mm), Full | - | No |
|
|
SA-5071B1ESW ROTARY DIP HEX COMP 0.1A 5V |
3,858 |
|
Datasheet |
SA-5000 | Bulk | Active | Hexadecimal Complement | 16 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 75°C | 0.100" (2.54mm), Full | - | No |
|
|
SA-5011CEWSWITCH ROTARY DIP BCD 0.1A 5V |
2,701 |
|
Datasheet |
SA-5000 | Tray | Active | BCD | 10 | 5VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.433" (11.00mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 75°C | 0.100" (2.54mm), Full | - | No |
|
|
RRD16C3.3KSW ROTARY DIP HEX COMP 0.4VA 20V |
4,931 |
|
Datasheet |
RRD | Tube | Obsolete | Hexadecimal Complement | 16 | 20VAC/DC | Rotary for Tool | Flush, Recessed | 0.4VA | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole | PC Pin | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
79A10STSWITCH SLIDE DIP 10PST 0.125A 6V |
3,554 |
|
Datasheet |
79A | Tube | Active | 10PST | 10 | 6VDC | Slide (Standard) | Raised | 125mA | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
IKN0800000SWITCH SLIDE DIP SPST 0.1A 24V |
1,979 |
|
Datasheet |
IKN | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.157" (4.00mm) | Through Hole | PC Pin | -40°C ~ 100°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
94RB08CTSW ROTARY DIP OCTAL 0.03A 30V |
2,232 |
|
Datasheet |
94R | Tube | Active | Octal | 8 | 30VDC | Rotary with Shaft | Raised | 30mA | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
94RB10CTSWITCH ROTARY DIP BCD 0.03A 30V |
4,225 |
|
Datasheet |
94R | Tube | Active | BCD | 10 | 30VDC | Rotary with Shaft | Raised | 30mA | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
94RB16CTSWITCH ROTARY DIP HEX 0.03A 30V |
1,429 |
|
Datasheet |
94R | Tube | Active | Hexadecimal | 16 | 30VDC | Rotary with Shaft | Raised | 30mA | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|
|
94RC08CTSW ROTARY DIP OCT COMP 0.03A 30V |
1,471 |
|
Datasheet |
94R | Tube | Active | Octal Complement | 8 | 30VDC | Rotary with Shaft | Raised | 30mA | Copper Alloy | Gold | 0.480" (12.19mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Sealed | Yes |
|

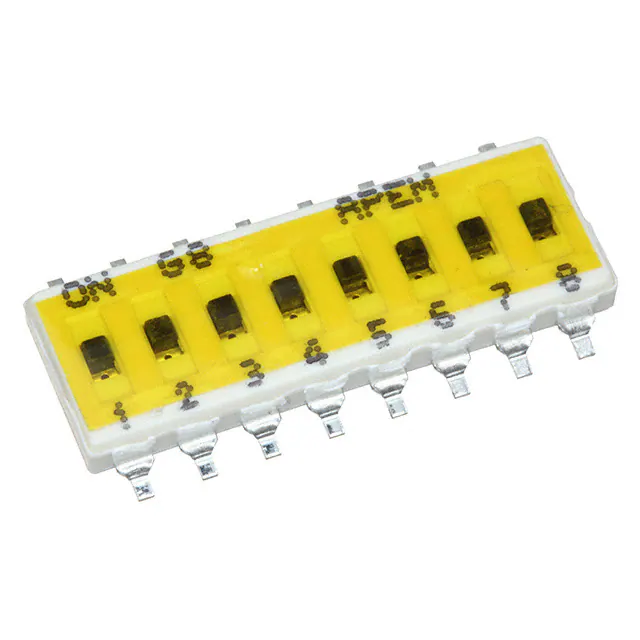

IKN0803000SWITCH SLIDE DIP SPST 0.1A 24V |
2,069 |
|
Datasheet |
IKN | Tube | Obsolete | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | -40°C ~ 100°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
2-5161390-5SWITCH SLIDE DIP SPST 0.025A 50V |
4,934 |
|
Datasheet |
DIP | Box | Active | SPST | 25 | 50VDC | Slide (Standard) | Raised | 25mA | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | -25°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
RV3AF10RVBDIP ROTARY SWITCH |
1,461 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
435470-2SW ROCKER DIP SPDT 0.025A 24V |
3,504 |
|
Datasheet |
7000 | Tube | Active | SPDT | 3 | 24VDC | Rocker | Raised | 25mA | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|
|
5-435470-3SWITCH STANDARD DIP SPDT |
4,137 |
|
Datasheet |
7000 | Bulk | Active | SPDT | 8 | - | Standard | Raised | - | - | - | - | Through Hole | - | - | - | - | No |
|
|
D5R2PUSHWHEEL SH6 |
1,173 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CR-UGD4MINI-NRSWITCH DIP DELTA ROBOT MIN 230V |
4,457 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CR-UGD4-RSWITCH DIP DELTA ROBOT ROT 230V |
1,763 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

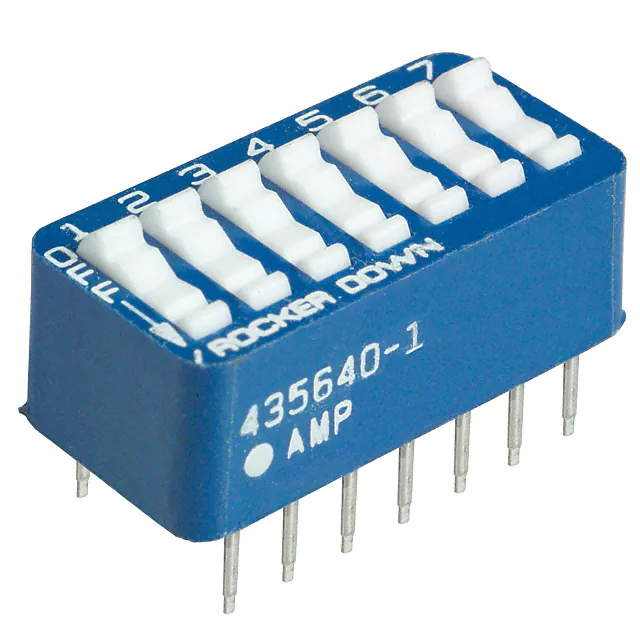

435640-1SWITCH ROCKER DIP SPST 0.06A 5V |
2,448 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 7 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | - | No |
|

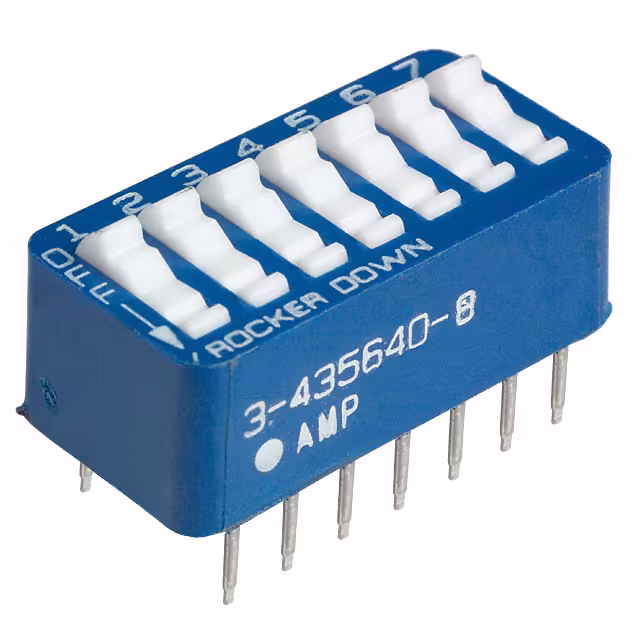

3-435640-8SWITCH ROCKER DIP SPST 0.06A 5V |
1,950 |
|
Datasheet |
7100 | Bulk | Obsolete | SPST | 7 | 5VDC | Rocker | Raised | 60mA | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | -55°C ~ 105°C | 0.100" (2.54mm), Full | Sealed | Yes |
