| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KE06RTGRSWITCH SLIDE DIP SPST 0.025A 24V |
104 |
|
Datasheet |
KE | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | Yes |
|

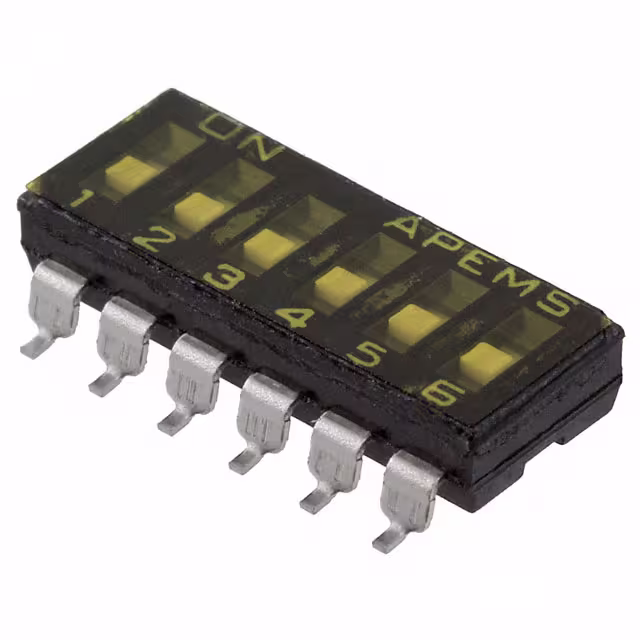

DMR06TTRSWITCH SLIDE DIP SPST 0.025A 24V |
2,650 |
|
Datasheet |
DM | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
SDA10H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
160 |
|
Datasheet |
SDA | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS03SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
941 |
|
Datasheet |
EDS | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

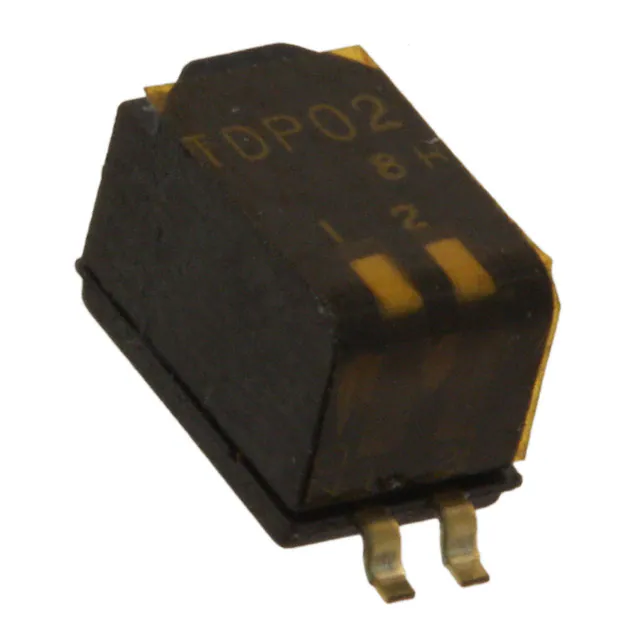

TDP02H0SB1SWITCH PIANO DIP SPST 0.025A 24V |
430 |
|
Datasheet |
TDP | Tube | Active | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.164" (4.17mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
|
A6SR-0101SWITCH PIANO DIP SPST 0.025A 24V |
175 |
|
Datasheet |
A6SR | Tube | Active | SPST | 10 | 24VDC | Piano | Flush, Recessed | 25mA | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
EDS06SGRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,022 |
|
Datasheet |
EDS | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS04SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,793 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
A6S-6104-PHSWITCH SLIDE DIP SPST 0.025A 24V |
455 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
KE10RTGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,956 |
|
Datasheet |
KE | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.050" (1.27mm), Half | - | Yes |
|
EDS08SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,333 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
A6SN-4101-PSWITCH SLIDE DIP SPST 0.025A 24V |
812 |
|
Datasheet |
A6SN | Tape & Reel (TR) | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

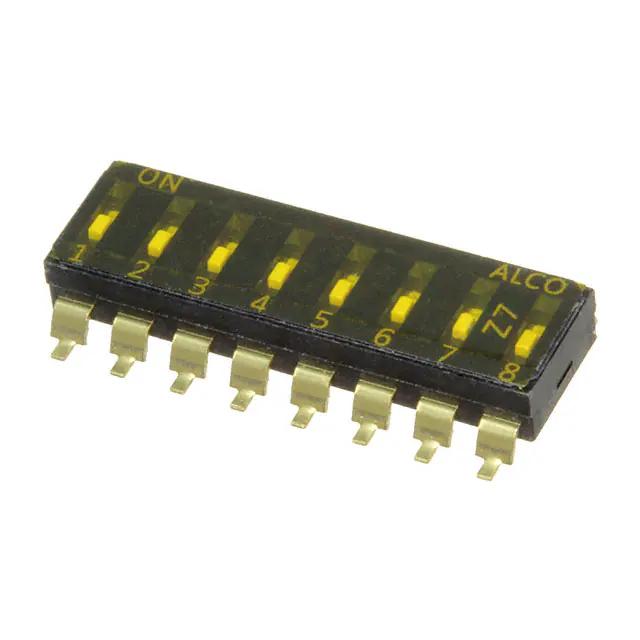

EDS08SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
354 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

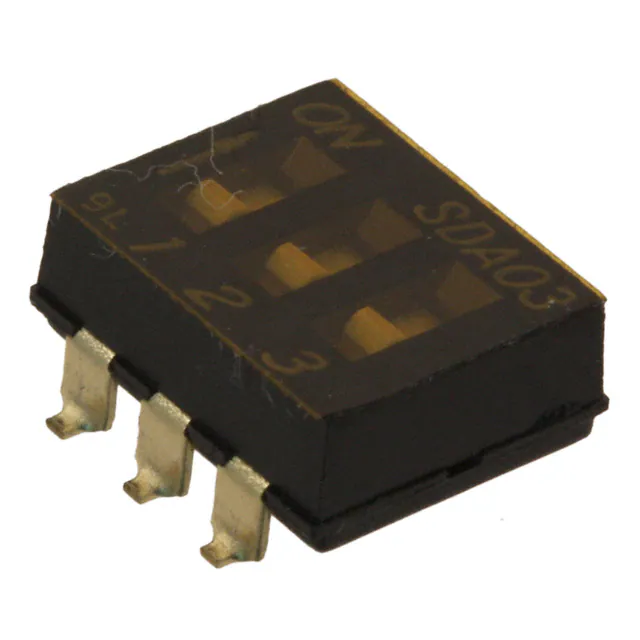

SDA03H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
439 |
|
Datasheet |
SDA | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
|
A6SR-6101-PSWITCH PIANO DIP SPST 0.025A 24V |
700 |
|
Datasheet |
A6SR | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Piano | Flush, Recessed | 25mA | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
A6HF-2102-PMSWITCH SLIDE DIP SPST 0.025A 24V |
1,218 |
|
Datasheet |
A6HF | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -30°C ~ 85°C | 0.050" (1.27mm), Half | Tape Seal | Yes |
|
EDS05SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,838 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS04SNRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
929 |
|
Datasheet |
EDS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6RS-102RFSWITCH ROTARY DIP BCD 0.025A 24V |
121 |
|
Datasheet |
A6RS | Tube | Active | BCD | 10 | 24VDC | Rotary for Tool | Flush, Recessed | 25mA | - | - | 0.185" (4.70mm) | Surface Mount | Gull Wing | -25°C ~ 80°C | 0.100" (2.54mm), Full | - | No |
|
BD06AVSWITCH SLIDE DIP SPST 0.1A 5V |
1,165 |
|
Datasheet |
BD | Tube | Active | SPST | 6 | 5VDC | Slide (Standard) | Raised | 100mA | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
