| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDSP02SGRFNTU04SWITCH PIANO DIP SPST 0.025A 24V |
111 |
|
Datasheet |
EDSP | Tube | Active | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
428521520817SW ROTARY DIP HEX COMP 0.15A 24V |
1,138 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 24VDC | Rotary for Tool | Flush, Recessed | 150mA | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
EDSP02SGRFSTU04SWITCH PIANO DIP SPST 0.025A 24V |
199 |
|
Datasheet |
EDSP | Tube | Active | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

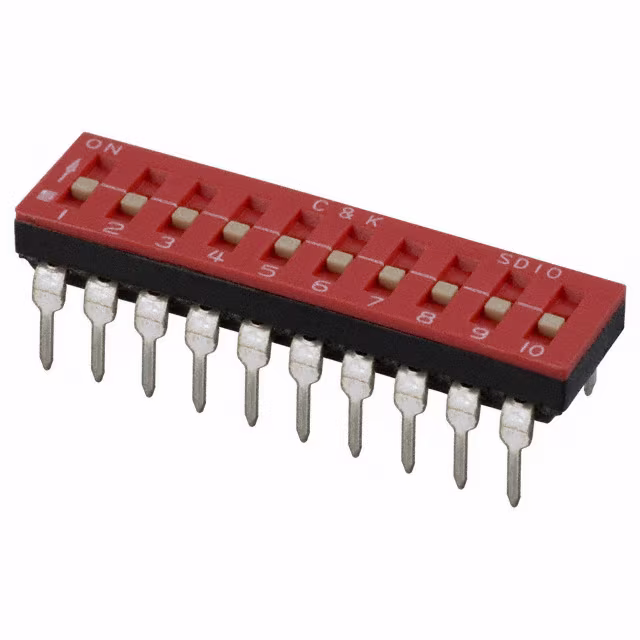

SD10H0BSWITCH SLIDE DIP SPST 0.1A 25V |
779 |
|
Datasheet |
SD | Tube | Active | SPST | 10 | 25VDC | Slide (Standard) | Flush, Recessed | 100mA | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | Tape Seal | Yes |
|
EDSP08SGLNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
188 |
|
Datasheet |
EDSP | Tube | Active | SPST | 8 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
428521420911SW ROTARY DIP BCD COMP 0.15A 24V |
138 |
|
Datasheet |
WS-ROSV | Tube | Active | BCD Complement | 10 | 24VDC | Rotary with Shaft | Raised | 150mA | - | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | IP67 - Dust Tight, Waterproof | Yes |
|
RTF10R1SSWITCH ROTARY DIP BCD 0.1A 5V |
532 |
|
Datasheet |
RTF | Tube | Active | BCD | 10 | 5VDC | Rotary with Shaft | Raised | 100mA | Phosphor Bronze | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
EDSP02SGRFSTR04SWITCH PIANO DIP SPST 0.025A 24V |
1,350 |
|
Datasheet |
EDSP | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
EDS12SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,791 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS12SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
884 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Raised | 25mA | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
A6S-8104-PMHSWITCH SLIDE DIP SPST 0.025A 24V |
344 |
|
Datasheet |
A6S-H | Tape & Reel (TR) | Active | SPST | 8 | 24VDC | Slide (Standard) | Raised | 25mA | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|

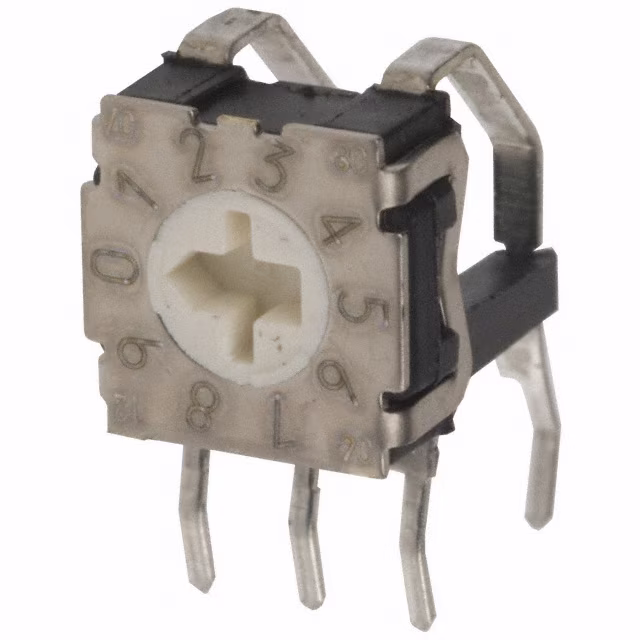

RTE1000V14SWITCH ROTARY DIP BCD 0.1A 30V |
2,959 |
|
Datasheet |
RTE | Bulk | Active | BCD | 10 | 30VDC | Rotary for Tool | Flush, Recessed | 100mA | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
RTE1002G14SWITCH ROTARY DIP BCD 0.1A 30V |
748 |
|
Datasheet |
RTE | Tape & Reel (TR) | Active | BCD | 10 | 30VDC | Rotary with Shaft | Raised | 100mA | Bronze | Gold | 0.322" (8.18mm) | Surface Mount | Gull Wing | -25°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDS12SNRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
201 |
|
Datasheet |
EDS | Tube | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

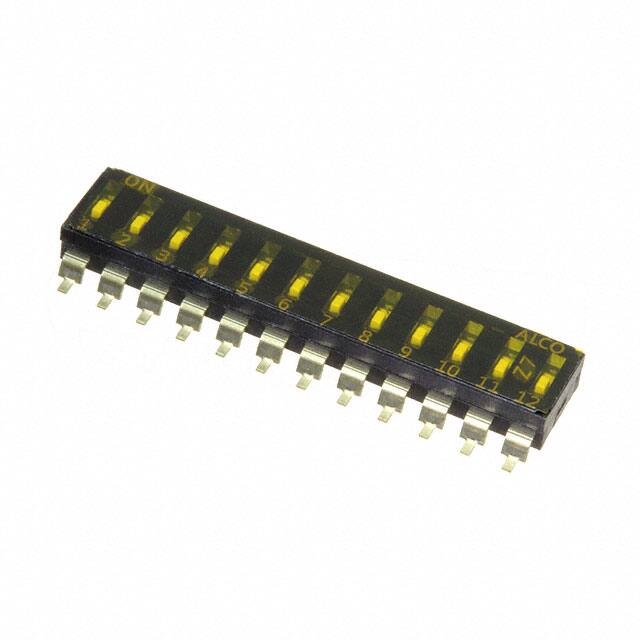

EDS12SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,764 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
EDS12SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
440 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 12 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

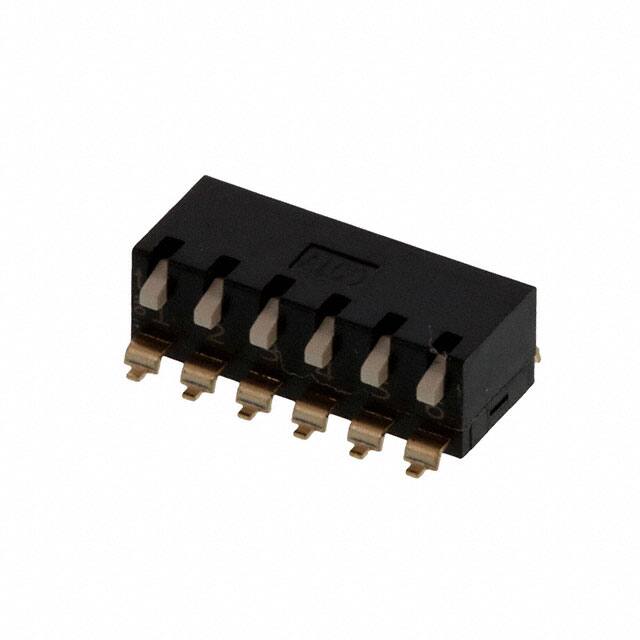

EDSP06SGLFNTU04SWITCH PIANO DIP SPST 0.025A 24V |
319 |
|
Datasheet |
EDSP | Tube | Active | SPST | 6 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDSP06SGRFNTU04SWITCH PIANO DIP SPST 0.025A 24V |
256 |
|
Datasheet |
EDSP | Tube | Active | SPST | 6 | 24VDC | Piano | Flush, Recessed | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
SDA10H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
150 |
|
Datasheet |
SDA | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
EDSP10SGLNNTR04SWITCH PIANO DIP SPST 0.025A 24V |
2,065 |
|
Datasheet |
EDSP | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Piano | Raised | 25mA | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | -20°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
