| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Current Rating (Amps) | Contact Material | Contact Finish | Height Above Board | Mounting Style | Termination Style | Operating Temperature | Pitch | Features | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219G-6MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Datasheet |
219G | Cut Tape (CT) | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | - | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
219G-6LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,941 |
|
Datasheet |
219G | Cut Tape (CT) | Active | SPST | 6 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADEN10TTU04SWITCH SLIDE DIP SPST 0.025A 24V |
1,167 |
|
Datasheet |
ADE | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
219G-8ESSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Datasheet |
219G | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
219G-8ESFSWITCH SLIDE DIP SPST 0.1A 20V |
1,980 |
|
Datasheet |
219G | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DBP 2002 NSWITCH PIANO DIP SPST 0.1A 6V |
699 |
|
Datasheet |
DBP | Tube | Active | SPST | 2 | 6VDC | Piano | Raised | 100mA | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -20°C ~ 70°C | 0.100" (2.54mm), Full | - | No |
|
|
SBS 1004DIP SWITCH 11.10 MM |
345 |
|
Datasheet |
SBS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Nickel | Gold | 0.149" (3.78mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|

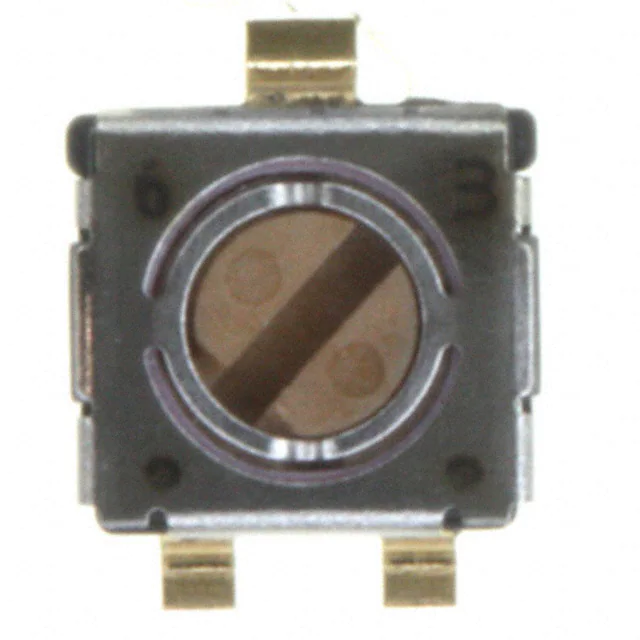

CS-4-12XTBSWITCH ROTARY DIP SPDT 0.1A 16V |
1,500 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SPDT | 2 | 16VDC | Rotary for Tool | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | -25°C ~ 70°C | - | - | Yes |
|
|
219G-8LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Datasheet |
219G | Tube | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
DBS 1003DIP SWITCH 8.56 MM |
550 |
|
Datasheet |
DBS | Tube | Active | SPST | 3 | 24VDC | Slide (Standard) | Raised | 25mA | Brass | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
ADEN10STU04SWITCH SLIDE DIP SPST 0.025A 24V |
3,601 |
|
Datasheet |
ADE | Tube | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | 25mA | Beryllium Copper | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
219G-8ESRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,900 |
|
Datasheet |
219G | Cut Tape (CT) | Active | SPST | 8 | 20VDC | Slide (Standard) | Raised | 100mA | - | Gold | 0.183" (4.65mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
SBS 9002 JTKDUAL-IN-LINE SWITCH FOR SMT, IC- |
1,100 |
|
Datasheet |
SBS | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Slide (Standard) | Flush, Recessed | 25mA | Brass | Tin | 0.126" (3.20mm) | Surface Mount | J Lead | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DBS 1004DIP SWITCH 11.10 MM |
420 |
|
Datasheet |
DBS | Tube | Active | SPST | 4 | 24VDC | Slide (Standard) | Raised | 25mA | Brass | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
SBP 8002 TDUAL-IN-LINE SWITCH END-STACKABL |
699 |
|
Datasheet |
SBP | Tape & Reel (TR) | Active | SPST | 2 | 24VDC | Piano | Raised | 25mA | Copper | Gold | 0.236" (6.00mm) | Surface Mount, Right Angle | Gull Wing | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
DBP 2104 NDUAL-IN-LINE-SWITCH, PIANO-TYPE, |
390 |
|
Datasheet |
DBP | Tube | Active | SPST | 4 | 24VDC | Piano | Raised | 25mA | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|

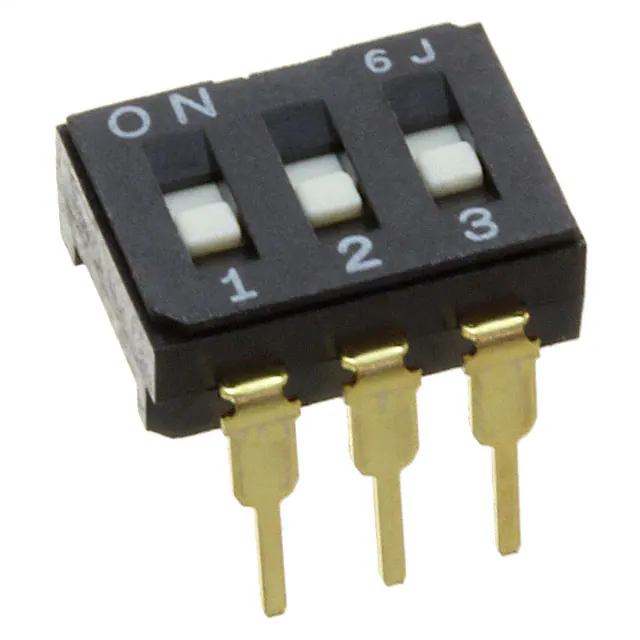

CFS-0301MCSWITCH SLIDE DIP SPST 0.1A 6V |
200 |
|
Datasheet |
CFS | Tube | Active | SPST | 3 | 6VDC | Slide (Standard) | Flush, Recessed | 100mA | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | -40°C ~ 85°C | 0.100" (2.54mm), Full | - | No |
|
|
219G-8LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Datasheet |
219G | Cut Tape (CT) | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
219G-8LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Datasheet |
219G | Cut Tape (CT) | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | - | Gold | 0.159" (4.05mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
|
|
219G-8MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,000 |
|
Datasheet |
219G | Cut Tape (CT) | Active | SPST | 8 | 20VDC | Slide (Standard) | Flush, Recessed | 100mA | - | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | -55°C ~ 85°C | 0.100" (2.54mm), Full | - | Yes |
