Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Reset Operation | Switch Function | Features | Current Rating (Amps) | Circuit | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
52G113FBSWITCH E-STOP |
3,269 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
52G114FBSWITCH E-STOP |
4,708 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SSA-EBM-12EAAQ12OTBBK30D-96385SWITCH E-STOP TWIST RESET 2A 60V |
4,734 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Twist | On-Off | - | 2A (DC) | DPST-NC | 60 V | 75 V | - | Connector | IP50 - Dust Protected | -20°C ~ 50°C | - |
|
|
52G112FDSWITCH E-STOP |
4,548 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SSA-EBM-12EAAQ12OTBBK50C-93210SWITCH E-STOP TWIST RESET 2A 60V |
3,538 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Twist | On-Off | - | 2A (AC/DC) | DPST-NC | 60 V | 75 V | - | Connector | IP50 - Dust Protected | -20°C ~ 50°C | - |
|
|
SSA-EB1PL2-12EMAQ12VTBYLK50ESWITCH E-STOP TWIST RESET 2A 60V |
3,046 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Twist | On-Off | - | 2A (AC/DC) | DPST-NC | 60 V | 75 V | - | Connector | IP50 - Dust Protected | -20°C ~ 50°C | - |
|
|
SSA-EBM-12EAAQ12OTBBK30D-93208SWITCH E-STOP TWIST RESET 2A 60V |
3,615 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Twist | On-Off | - | 2A (DC) | DPST-NC | 60 V | 75 V | - | Connector | IP50 - Dust Protected | -20°C ~ 50°C | - |
|
|
A01ESSP354B+PEA01SWITCH E-STOP 6A 250V |
3,937 |
|
Datasheet |
A01 | Tray | Active | Chassis Mount | - | On-Off | - | 6A (AC) | DPST-NC | 250 V | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|
SG-E1-02SW E-STOP TWIST RESET 10A 110V |
3,842 |
|
Datasheet |
SG-E1 | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off | - | 10A (AC), 8A (DC) | DPST-NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SG-E1-02-ESW E-STOP TWIST RESET 10A 110V |
2,400 |
|
Datasheet |
SG-E1 | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off | EMO Marking | 10A (AC), 8A (DC) | DPST-NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SG-E1-12SW E-STOP TWIST RESET 10A 110V |
3,474 |
|
Datasheet |
SG-E1 | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off, Off-On | - | 10A (AC), 8A (DC) | 3PST-2NC/1NO | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
SG-E1-12-ESW E-STOP TWIST RESET 10A 110V |
1,170 |
|
Datasheet |
SG-E1 | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off, Off-On | EMO Marking | 10A (AC), 8A (DC) | 3PST-2NC/1NO | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
A02ESH3B102IX0SW ESTOP PULL/TWST RESET 3A 250V |
2,431 |
|
Datasheet |
A02ES-H | Bulk | Obsolete | Panel Mount, Front | Pull or Twist | On-Off | - | 3A (AC), 2A (DC) | DPST-NC | 250 V | 30 V | Circular - 22.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|

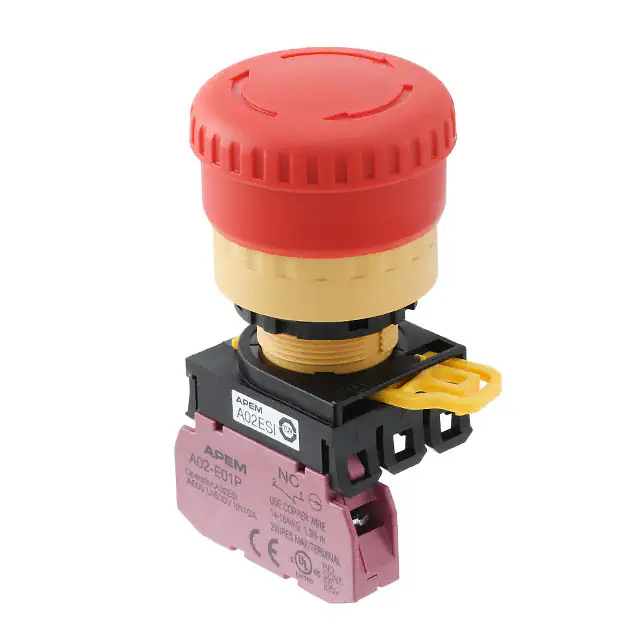

A02ESI3B101IX0SW ESTOP PULL/TWST RESET 6A 240V |
3,643 |
|
Datasheet |
A02ES-I | Bulk | Obsolete | Panel Mount, Front | Pull or Twist | On-Off | - | 6A (AC), 8A (DC) | SPST-NC | 240 V | 24 V | Circular - 22.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|
A02ESI3B102IX0SW ESTOP PULL/TWST RESET 6A 240V |
1,924 |
|
Datasheet |
A02ES-I | Bulk | Obsolete | Panel Mount, Front | Pull or Twist | On-Off | - | 6A (AC), 8A (DC) | DPST-NC | 240 V | 24 V | Circular - 22.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|
A02ESI4B101IR2SW ESTOP PULL/TWST RESET 6A 240V |
1,691 |
|
Datasheet |
A02ES-I | Bulk | Obsolete | Panel Mount, Front | Pull or Twist | On-Off | - | 6A (AC), 8A (DC) | SPST-NC | 240 V | 24 V | Circular - 22.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VDC |
|
HA1B-V2E2RSWITCH E-STOP TWIST RESET |
1,684 |
|
Datasheet |
HA | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off | - | - | DPST-NC | - | - | Circular - 16.00mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | - | - |
|
HW1E-LV4F11QD-R-24VSWITCH ESTOP PULL RESET 10A 110V |
2,347 |
|
Datasheet |
HW | Bulk | Obsolete | Panel Mount, Front | Pull | On-Off, Off-On | Illuminated (Red) | 10A (AC), 8A (DC) | DPST-NO/NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | 24 VAC/DC |
|
HW1E-TV4F02QD-R-24VSWITCH ESTOP PULL RESET 10A 110V |
1,685 |
|
Datasheet |
HW | Bulk | Obsolete | Panel Mount, Front | Pull | On-Off | Illuminated (Red) | 10A (AC), 8A (DC) | DPST-NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | 24 VAC/DC |
|
HA1E-V2S2RSWITCH E-STOP TWIST RESET |
4,383 |
|
Datasheet |
HA | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off | - | - | DPST-NC | - | - | Circular - 16.00mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | - | - |
