Emergency Stop (E-Stop) Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Reset Operation | Switch Function | Features | Current Rating (Amps) | Circuit | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AYLD39920DN-W-6VSWITCH E-STOP 30MM |
4,252 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
A02ESIFB1W57YCSW ESTOP PULL/TWST RESET 6A 240V |
2,854 |
|
Datasheet |
A02ES-I | Bulk | Obsolete | Free Hanging | Pull or Twist | On-Off | Control Box Enclosure, Illuminated (Yellow) | 6A (AC), 8A (DC) | DPST-NC | 240 V | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|

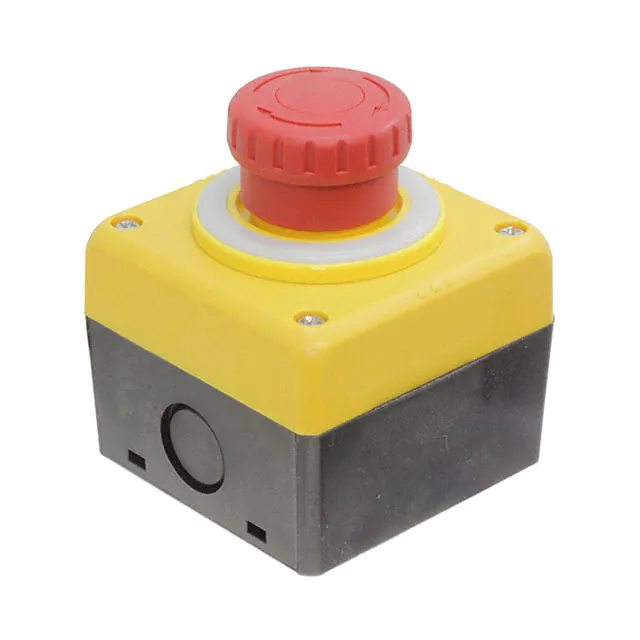

A02ESHFB1W57YCSW ESTOP PULL/TWST RESET 3A 250V |
4,515 |
|
Datasheet |
A02ES-H | Bulk | Obsolete | Free Hanging | Pull or Twist | On-Off, Off-On | Control Box Enclosure, Illuminated (Yellow) | 3A (AC), 2A (DC) | 3PST-2NC/1NO | 250 V | 30 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
VAA-2E1A-PM-SSW E-STOP TWIST RESET 40MA 26.5V |
1,014 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off | - | 40mA (DC) | DPST-NC | - | 26.5 V | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
W22PP-MR-0122MM PP, 40MM MUSH CAP RED, 1 NC |
2,523 |
|
Datasheet |
22 | Bag | Active | Panel Mount, Rear | Pull | On-Off | - | 10A (AC), 2.5A (DC) | SPST-NC | 72 V | 28 V | Circular - 22.50mm Dia | Screw Terminal | IP66 - Dust Tight, Water Resistant | -40°C ~ 55°C | - |
|
BAM02HAB10D (EN ISO 13849-1)=0,1 MIL. S |
4,577 |
|
Datasheet |
- | Bag | Active | Chassis Mount | Twist | On-Off | Control Box Enclosure | 3A (AC/DC) | DPST-NC | 24 V | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
PPFN1P4N-1NCEMERGENCY STOP PUSH BUTTON, PUSH |
2,315 |
|
Datasheet |
Pegasus | Tape & Box (TB) | Discontinued | Panel Mount, Front | Pull | On-Off | - | 10A (AC) | SPST-NC | 600 V | - | Circular - 22.00mm Dia | Spring Terminal | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C | - |
|
|
HA1B-V2E2VRSW E-STOP TWIST RESET 100MA 125V |
4,843 |
|
Datasheet |
HA | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off | - | 100mA (AC/DC) | DPST-NC | 125 V | 30 V | Circular - 16.20mm Dia | PC Pin | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
HA1B-V2E1RSWITCH ESTOP TWIST RESET 5A 125V |
4,271 |
|
Datasheet |
HA | Bulk | Obsolete | Panel Mount, Front | Twist | On-Off | - | 5A (AC), 3A (DC) | SPST-NC | 125 V | 30 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
A02ESI3B103IX0SW ESTOP PULL/TWST RESET 6A 240V |
1,828 |
|
Datasheet |
A02ES-I | Bulk | Obsolete | Panel Mount, Front | Pull or Twist | On-Off | - | 6A (AC), 8A (DC) | 3PST-NC | 240 V | 24 V | Circular - 22.50mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|
|
YW1B-V4E03RSW ESTOP PULL/TW RESET 10A 120V |
3,325 |
|
Datasheet |
YW | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off | - | 10A (AC), 8A (DC) | 3PST-NC | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|
|
HW1E-LV4F02QD-R-120VSWITCH E-STOP |
2,142 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW1E-BV4F11-ENG-EMOSWITCH E-STOP |
3,738 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XW1E-BV411MFRH-EMOSW ESTOP PULL/TWST RESET 5A 125V |
3,262 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off, Off-On | - | 5A (AC), 2A (DC) | DPST-NO/NC | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C | - |
|
|
XW1E-TV403Q4MFRSW ESTOP PULL/TWST RESET 5A 125V |
4,099 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off | Illuminated (Red) | 5A (AC), 2A (DC) | 3PST-NC | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | 24 VAC/DC |
|
1301260199Emergency Stop Switches / E-Stop |
1,709 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME-2201SWITCH E-STOP 22MM 5A 250V |
3,246 |
|
Datasheet |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME-1901SWITCH E-STOP 19MM 5A 250V |
2,105 |
|
Datasheet |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME-1601E-STOP SWITCH 16MM SPDT 5A 250V |
3,786 |
|
Datasheet |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M22-PVL-K01-230RILL E-STOP PUSH-PULL 85-264VAC 1 |
3,614 |
|
Datasheet |
M22 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
