| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Reset Operation | Switch Function | Features | Current Rating (Amps) | Circuit | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YW1B-V4E02RSW ESTOP PULL/TW RESET 10A 120V |
1,422 |
|
Datasheet |
YW | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off | - | 10A (AC), 8A (DC) | DPST-NC | 120 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | - |
|
HW1B-V4F01-RSW E-STOP TWIST RESET 10A 110V |
2,798 |
|
Datasheet |
HW | Bulk | Active | Panel Mount, Front | Twist | On-Off | - | 10A (AC), 8A (DC) | SPST-NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | - |
|
51-259.025SWITCH ESTOP TWIST RESET 5A 250V |
1,201 |
|
Datasheet |
51 | Bulk | Active | Panel Mount, Front | Twist | On-Off, Off-On | - | 5A (AC) | 4PST-2NO/2NC | 250 V | - | Circular - 16.00mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
.jpg)
|
A22E-M-01SW E-STOP TWIST RESET 10A 110V |
3,373 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | On-Off | - | 10A (AC/DC) | SPST-NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
XW1E-TV412Q4M-RSW ESTOP PULL/TWST RESET 5A 125V |
3,238 |
|
Datasheet |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | On-Off, Off-On | Illuminated (Red) | 5A (AC), 2A (DC) | 3PST-2NC/1NO | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
A22EL-M-24A-02SW E-STOP TWIST RESET 10A 110V |
3,514 |
|
Datasheet |
A22E | Bulk | Active | Panel Mount, Front | Twist | On-Off | Illuminated (Red) | 10A (AC/DC) | DPST-NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
ES-2011-T412-018ASWITCH E-STOP TWIST RESET 8A 32V |
3,968 |
|
Datasheet |
ES | Box | Active | Panel Mount, Front | Twist | On-On | - | 8A (DC) | DPDT | - | 32 V | Circular - 30.50mm Dia | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | - |
|
XB4BS8444SWITCH ESTOP TWIST RESET 6A 120V |
3,878 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 6A (AC), 550mA (DC) | DPST-NC | 120 V | 125 V | Circular - 22.00mm Dia | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 70°C | - |
|
SSA-EB1P-02ECQ4SW ESTOP PULL/TWIST RESET 2A 24V |
2,693 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off | Control Box Enclosure | 2A (DC) | DPST-NC | - | 24 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
87943-00SWITCH E-STOP PULL RESET 20A 14V |
2,533 |
|
Datasheet |
87940 | Bulk | Active | Panel Mount, Rear | Pull | - | - | 20A (DC) | DPST-NO/NC | - | 14 V | - | Screw Terminal | Environment Sealed | -40°C ~ 100°C | - |
|
SSA-EB1PL2-12ED1Q8SW ESTOP PULL/TWIST RESET 2A 24V |
2,852 |
|
Datasheet |
SSA-EB | Bulk | Active | Chassis Mount | Pull or Twist | On-Off, Off-On | Control Box Enclosure, Illuminated (Red) | 2A (DC) | 3PST-2NC/1NO | - | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
A22E-M-12BSW E-STOP TWIST RESET 10A 110V |
4,803 |
|
Datasheet |
A22E | Bulk | Active | Chassis Mount | Twist | On-Off, Off-On | - | 10A (AC/DC) | 3PST-2NC/1NO | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
1.22.114.212/0500SWITCH E-STOP TWIST RESET 100MA |
1,261 |
|
Datasheet |
- | Bulk | Active | Free Hanging | Twist | On-Off, Off-On | Control Box Enclosure, Status Indicator, With Pushbutton Switch | 100mA (AC/DC) | DPST-NC + SPST-NO | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
SSA-EB1PLXR-02ECQ5BSW ESTOP PULL/TWIST RESET 2A 24V |
2,281 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off | Control Box Enclosure, Illuminated (Red) | 2A (DC) | DPST-NC | - | 24 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
SSA-EB1PLYR-12ECQ8SWITCH E-STOP PULL RESET 2A 24V |
3,276 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull | On-Off | - | 2A (DC) | SPST-NC | - | 24 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1PLGR-12ECQ8SW ESTOP PULL/TWIST RESET 2A 30V |
4,812 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off, Off-On | - | 2A (DC) | 3PST-2NC/1NO | - | 30 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1PLGR-0DED1Q8SW E-STOP TWIST RESET 100MA 24V |
4,817 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Twist | On-Off | - | 100mA (AC) | DPST-NC | - | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 50°C | - |
|
|
SSA-EB1PLGR-12ECQ8-WCSW ESTOP PULL/TWIST RESET 2A 24V |
4,430 |
|
Datasheet |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | On-Off, Off-On | - | 2A (DC) | 3PST-2NC/1NO | - | 24 V | Circular - 30.00mm Dia | Connector | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 55°C | - |
.jpg)
|
ES2S41653001SWITCH E-STOP PULL RESET 1A 24V |
3,735 |
|
Datasheet |
ES | Bulk | Active | Panel Mount, Front | Pull | On-Off, Off-On | Push-Pull Marking, Status Indicator | 1A (DC) | DPST-NO/NC | - | 24 V | Circular - 22.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -40°C ~ 85°C | - |
|

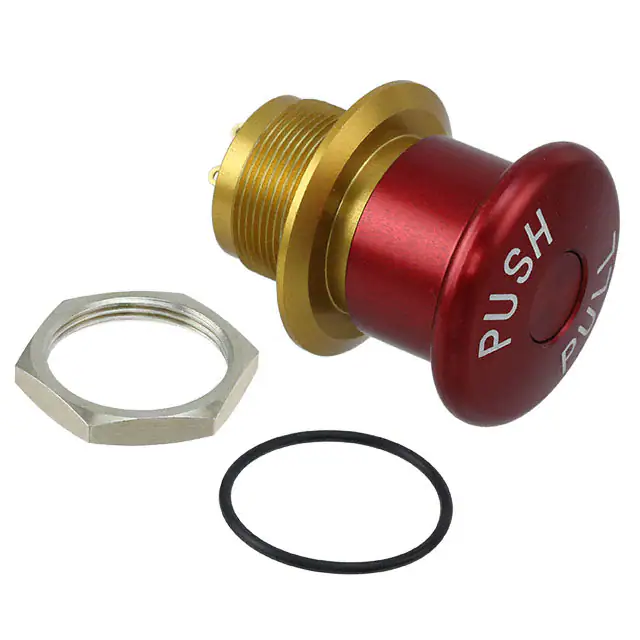

ES1S41653001SWITCH E-STOP PULL RESET 1A 24V |
1,369 |
|
Datasheet |
ES | Bulk | Active | Panel Mount, Front | Pull | On-Off | Push-Pull Marking, Status Indicator | 1A (DC) | DPST-NC | - | 24 V | Circular - 22.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -40°C ~ 85°C | - |
