| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Reset Operation | Switch Function | Features | Current Rating (Amps) | Circuit | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions | Termination Style | Ingress Protection | Operating Temperature | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22EL-M-24A-02BSW E-STOP TWIST RESET 10A 110V |
4,559 |
|
Datasheet |
A22E | Bulk | Active | Chassis Mount | Twist | On-Off | Illuminated (Red) | 10A (AC/DC) | DPST-NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
73-00002.1SWITCH E-STOP TWIST RESET 2A 30V |
2,029 |
|
Datasheet |
84 SmartBox | Bulk | Active | Chassis Mount | Twist | On-Off | Control Box Enclosure | 2A (DC) | DPST-NC | - | 30 V | - | Connector | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C | - |
|
A22EL-M-24A-11BSW E-STOP TWIST RESET 10A 110V |
1,103 |
|
Datasheet |
A22E | Bulk | Active | Chassis Mount | Twist | On-Off, Off-On | Illuminated (Red) | 10A (AC/DC) | DPST-NO/NC | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 55°C | 24 VAC/DC |
|
73-00002.2SWITCH E-STOP TWIST RESET 2A 30V |
3,066 |
|
Datasheet |
84 SmartBox | Bulk | Active | Chassis Mount | Twist | On-Off | Control Box Enclosure, Illuminated (Red) | 2A (DC) | DPST-NC | - | 30 V | - | Connector | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C | - |
|

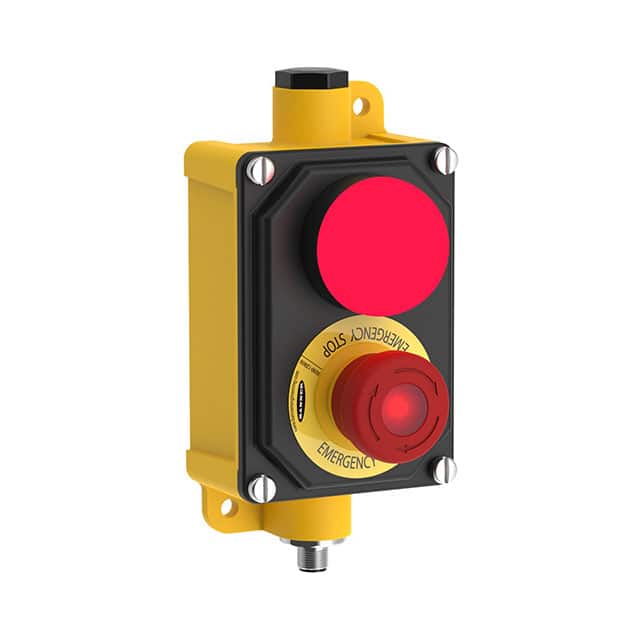

SSA-EB1PL2-12EB1Q12K50SW ESTOP PULL/TWIST RESET 2A 30V |
2,429 |
|
Datasheet |
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | On-Off, Off-On | Control Box Enclosure, Illuminated (Red) | 2A (DC) | 3PST-2NC/1NO | - | 30 V | - | Connector | IP65 - Dust Tight, Water Resistant | - | 24 VAC/DC |
|
PBES16L10RSWITCH ESTOP TWIST RESET 3A 125V |
4,386 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
PBES16L1CRSWITCH ESTOP TWIST RESET 3A 125V |
4,834 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VDC |
|
|
PBES16L1IRSWITCH ESTOP TWIST RESET 3A 125V |
4,167 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 14 VAC/DC |
|
|
PBES16L1JRSWITCH ESTOP TWIST RESET 3A 125V |
2,679 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 28 VAC/DC |
|
|
PBES16L3MRSWITCH ESTOP TWIST RESET 3A 125V |
3,891 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC x 2 | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 33 VAC/DC |
|
|
PBES16L3LRSWITCH ESTOP TWIST RESET 3A 125V |
2,419 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC x 2 | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 60 VAC/DC |
|
|
PBES16L2MRSWITCH ESTOP TWIST RESET 3A 125V |
3,424 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off, Off-On | - | 3A (AC), 220mA (DC) | SPST-NO + SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 33 VAC/DC |
|
|
PBES16L30RSWITCH ESTOP TWIST RESET 3A 125V |
4,862 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC x 2 | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
|
PBES16L2KRSWITCH ESTOP TWIST RESET 3A 125V |
1,041 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off, Off-On | - | 3A (AC), 220mA (DC) | SPST-NO + SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 48 VAC/DC |
|
|
PBES16L2LRSWITCH ESTOP TWIST RESET 3A 125V |
1,619 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off, Off-On | - | 3A (AC), 220mA (DC) | SPST-NO + SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 60 VAC/DC |
|
|
PBES16L3KRSWITCH ESTOP TWIST RESET 3A 125V |
3,970 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC x 2 | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 48 VAC/DC |
|
|
PBES16L3ORSWITCH ESTOP TWIST RESET 3A 125V |
4,287 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC x 2 | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 14 VAC/DC |
|
|
PBES16L2NRSWITCH ESTOP TWIST RESET 3A 125V |
3,588 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off, Off-On | - | 3A (AC), 220mA (DC) | SPST-NO + SPST-NC | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L3HRSWITCH ESTOP TWIST RESET 3A 125V |
1,996 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC x 2 | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 6 VAC/DC |
|
|
PBES16L3JRSWITCH ESTOP TWIST RESET 3A 125V |
1,071 |
|
Datasheet |
PBES16 | Box | Active | Panel Mount, Front | Twist | On-Off | - | 3A (AC), 220mA (DC) | SPST-NC x 2 | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 28 VAC/DC |
