| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM14R0D-M25-L064NROTARY ENCODER OPTICAL 64PPR |
1,594 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 64 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

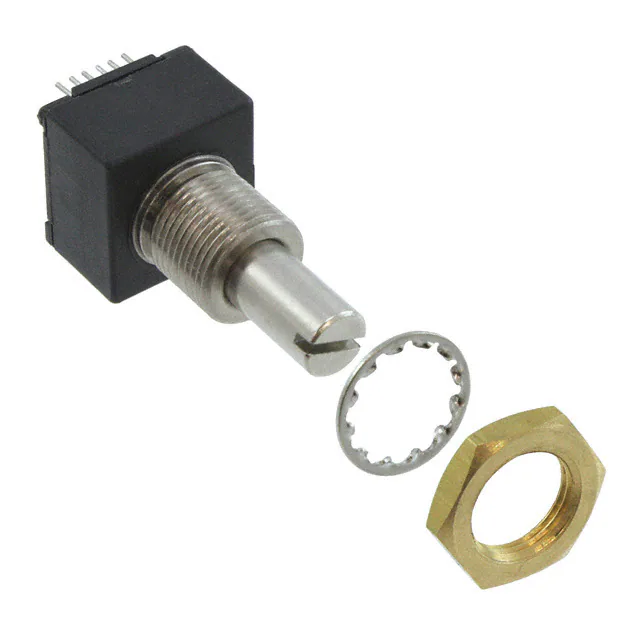

EM14R0D-R20-R032NROTARY ENCODER OPTICAL 32PPR |
1,826 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 32 | 5V | 6mm Dia Slotted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|
EM14R0A-M20-R064NROTARY ENCODER OPTICAL 64PPR |
3,350 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 64 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|
|
EM14R0A-M25-R064NROTARY ENCODER OPTICAL 64PPR |
2,271 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 64 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|
|
EM14A0D-B28-L032NROTARY OPTICAL ENCODER - 14MM |
4,305 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 32 | 4.75V ~ 5.25V | 1/4" Dia Slotted End | Quadrature, 2-Bit | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-M25-L032NROTARY OPTICAL ENCODER - 14MM |
1,712 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 32 | 4.75V ~ 5.25V | 6mm Dia Flatted End | Quadrature, 2-Bit | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-M25-L016NROTARY OPTICAL ENCODER - 14MM |
2,647 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 16 | 4.75V ~ 5.25V | 6mm Dia Flatted End | Quadrature, 2-Bit | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-M20-L008NROTARY OPTICAL ENCODER - 14MM |
3,099 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 8 | 4.75V ~ 5.25V | 6mm Dia Flatted End | Quadrature, 2-Bit | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14R0D-M20-R064NROTARY OPTICAL ENCODER - 14MM |
2,555 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 64 | 4.75V ~ 5.25V | 6mm Dia Flatted End | Quadrature, 2-Bit | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|
|
EM14R0D-R25-L032NROTARY OPTICAL ENCODER - 14MM |
2,477 |
|
Datasheet |
EM14 | Tray | Active | Not Verified | Optical | 32 | 4.75V ~ 5.25V | 6mm Dia Slotted End | Quadrature, 2-Bit | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AMT102-0512-I5000-SAMT INCR, MOD, CAP, 512 PPR, 3.6 |
3,721 |
|
Datasheet |
AMT10 | Box | Active | Not Verified | Incremental | 512 | 3.6V ~ 5.5V | 5mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
62NG511-LL5-PROTARY ENCODER OPTICAL 32PPR |
2,175 |
|
Datasheet |
62NG | Bulk | Active | Not Verified | Optical | 32 | 5V | 6mm Dia Flatted End | Quadrature, 2-Bit | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D16P-A2P15 MM, 16 PPR, 6.00 MM PLASTIC S |
2,713 |
|
Datasheet |
C14 | Tray | Active | Not Verified | Optical | 16 | 4.75V ~ 5.25V | 6mm Dia Round End | Quadrature (Incremental) | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
EM14R0A-M25-L064NROTARY OPTICAL ENCODER - 14MM |
2,041 |
|
Datasheet |
EM14 | Tray | Active | - | Optical | 64 | 4.75V ~ 5.25V | 6mm Dia Flatted End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AEDR-9930-100AEDR-9930, 397LPI REF ENC,TR 100 |
1,067 |
|
Datasheet |
* | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
62AG15-L5-PROTARY ENCODER OPTICAL 24PPR |
2,214 |
|
Datasheet |
62AG | Bulk | Active | Not Verified | Optical | 24 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
REC16A25-201ROTARY ENCODER OPTICAL 25PPR |
2,866 |
|
Datasheet |
REC16 | Bulk | Active | Not Verified | Optical | 25 | 5V | 6mm Dia Flatted End | Quadrature with Index (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
RES16B50-201-CROTARY ENCODER OPTICAL 50PPR |
2,689 |
|
Datasheet |
RES16 | Bulk | Active | Not Verified | Optical | 50 | 5V | 6mm Dia Flatted End | Quadrature with Index (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
62NG515-BL5-RACROTARY ENCODER OPTICAL 24PPR |
3,848 |
|
Datasheet |
62NG | Bulk | Active | Not Verified | Optical | 24 | 5V | 6mm Dia Flatted End | Quadrature, 2-Bit | Yes | Yes | Panel Mount | User Selectable | PC Pin | 1M | - | - |
|
AEDR-8710-100ROTARY ENCODER OPTICAL PROG |
2,173 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Programmable | 3.3V, 5V | Codewheel Not Included | Digital | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
