Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

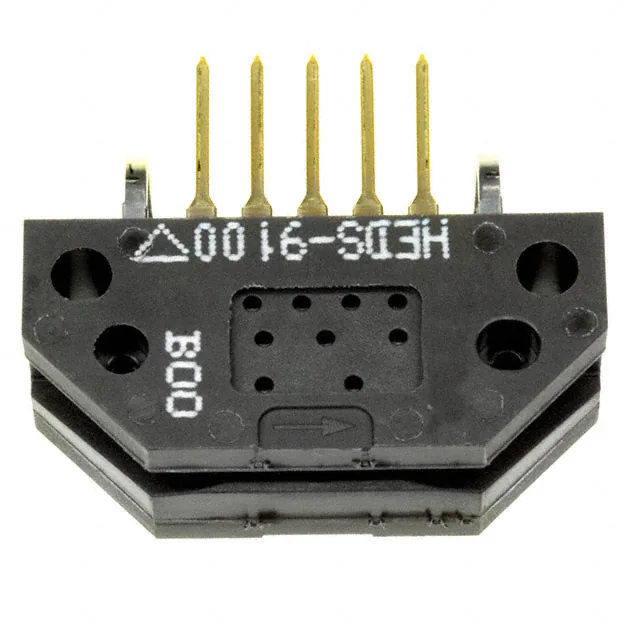

HEDS-9100#B00ROTARY ENCODER OPTICAL 1000PPR |
984 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 1000 | 5V | Codewheel Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDR-5421-EP111ROTARY ENCODER OPTICAL 200PPR |
1,178 |
|
Datasheet |
HEDR | Bulk | Active | Not Verified | Optical | 200 | 5V | 4mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
AMT133S-VKIT, AMT133S, INCREMENTAL ENCODE |
113 |
|
Datasheet |
AMT13 | Box | Active | - | Incremental | Programmable | 4.5V ~ 5.5V | Open Center | Voltage | No | No | Chassis Mount, Motors | Right Angle | Connector | - | - | - |
|
AMT13A2S-VKIT, AMT13A2S-V INCREMENTAL ENCO |
221 |
|
Datasheet |
AMT13A | Box | Active | - | Incremental | Programmable | 4.5V ~ 5.5V | Open Center | Voltage | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
|
AMT13A3Q-VKIT, AMT13A3Q-V INCREMENTAL ENCO |
232 |
|
Datasheet |
AMT13A | Box | Active | - | Incremental | Programmable | 4.5V ~ 5.5V | Open Center | Quadrature Line Driver (Incremental) | No | No | Chassis Mount, Motors | Right Angle | Connector | - | - | - |
|
61C11-01-08-01ROTARY ENCODER OPTICAL 32PPR |
108 |
|
Datasheet |
61C | Bulk | Active | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
ES14A0D-E28-L064NROTARY ENCODER OPTICAL 64PPR |
287 |
|
Datasheet |
ES14 | Tube | Active | Not Verified | Optical | 64 | 5V | Shaft | Quadrature (Incremental) | No | No | Panel Mount | User Selectable | PC Pin | 100M | - | - |
|
HEDS-9040#J00ROTARY ENCODER OPTICAL 1024PPR |
352 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 1024 | 5V | Codewheel Not Included | Quadrature with Index (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-6010-A06ROTARY ENCODER MAGNETIC 1024PPR |
554 |
|
Datasheet |
AEAT-60xx | Bulk | Active | Not Verified | Magnetic | 1024 | 5V | 6mm Dia Round End | Binary (Absolute) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
EMS22Q51-B28-LS4ROTARY ENCODER MAGNETIC 256PPR |
4,003 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 256 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|

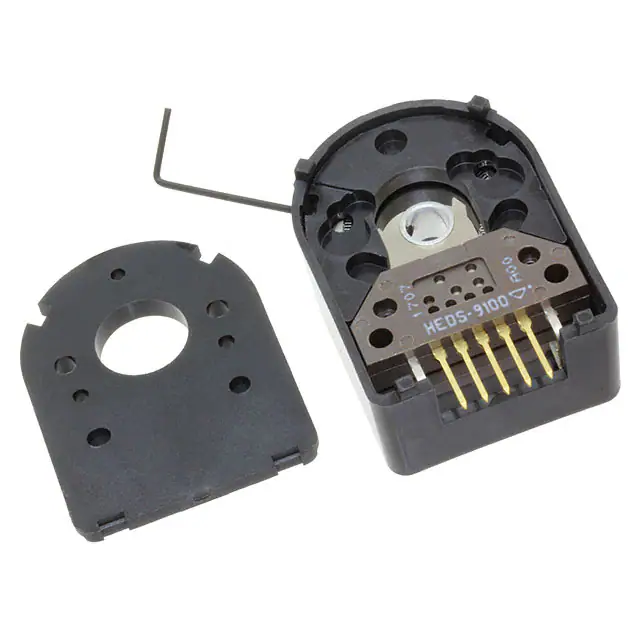

HEDS-5505#A14ROTARY ENCODER OPTICAL 500PPR |
319 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 500 | 5V | 5mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#I06ROTARY ENCODER OPTICAL 512PPR |
219 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 512 | 5V | 1/4" Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A13ROTARY ENCODER OPTICAL 500PPR |
193 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 500 | 5V | 8mm Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

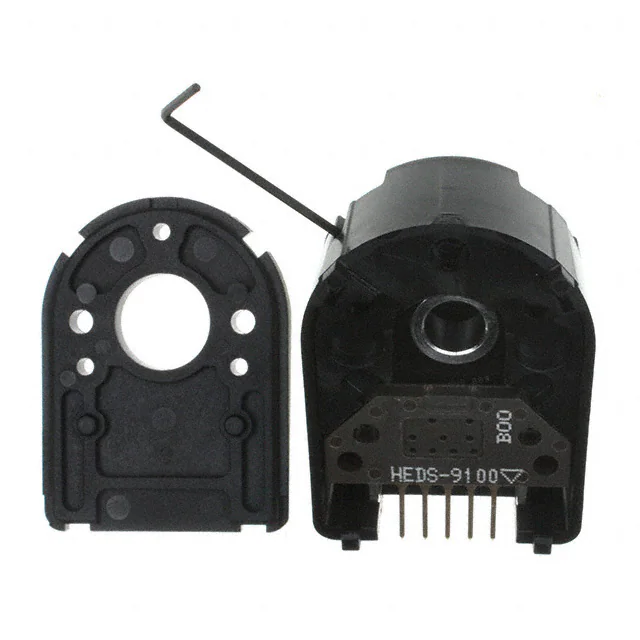

HEDM-5500#B06ROTARY ENCODER OPTICAL 1000PPR |
4,255 |
|
Datasheet |
HEDM | Bulk | Active | Not Verified | Optical | 1000 | 5V | 1/4" Open Center | Quadrature (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AEDL-5810-Z12ROTARY ENCODER OPTICAL 5000PPR |
2,959 |
|
Datasheet |
AEDL-5 | Bulk | Active | Not Verified | Optical | 5000 | 4.5V ~ 5.5V | Shaft | Quadrature with Index (Incremental) | No | No | - | - | - | - | - | - |
|
62S15-M0-PHROTARY ENCODER OPTICAL 24PPR |
3,045 |
|
Datasheet |
62S | Bulk | Active | Not Verified | Optical | 24 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

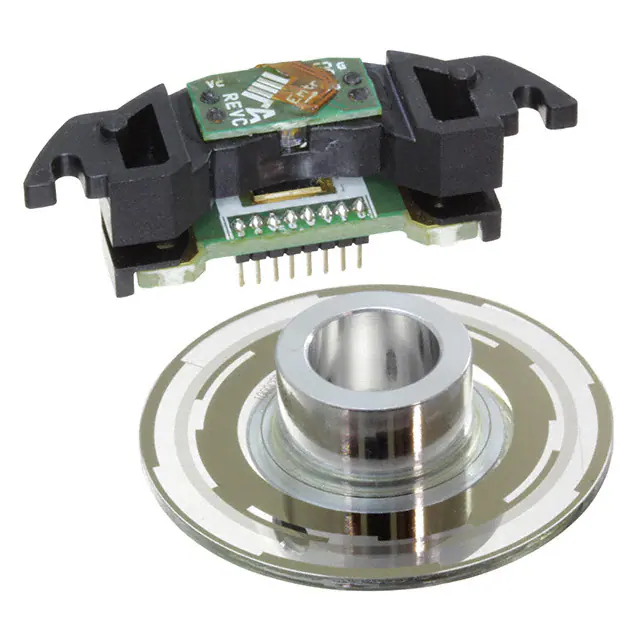

AEDB-9340-B13CROTARY ENCODER OPTICAL 1000PPR |
3,547 |
|
Datasheet |
AEDB-9340 | Bulk | Active | Not Verified | Optical | 1000 | 5V | 8mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
ENT1D-D28-L00100LROTARY ENCODER OPTICAL 100PPR |
4,189 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 100 | 5V | 1/8" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
ENT1J-D28-L00100LROTARY ENCODER OPTICAL 100PPR |
3,202 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 100 | 5V | 1/8" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
HEDS-5540#H14ROTARY ENCODER OPTICAL 400PPR |
582 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 400 | 5V | 5mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
