Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
290VAB0R201B2ROTARY ENCODER MECHANICAL 20PPR |
4,297 |
|
Datasheet |
290 | Bulk | Active | Not Verified | Mechanical | 20 | - | 6mm Dia Round End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
EC11E15244G1METAL SHAFT ENCODERS |
3,031 |
|
Datasheet |
EC11E | Tray | Active | - | Incremental | 15 | 5V | 4.5mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
.jpg)
|

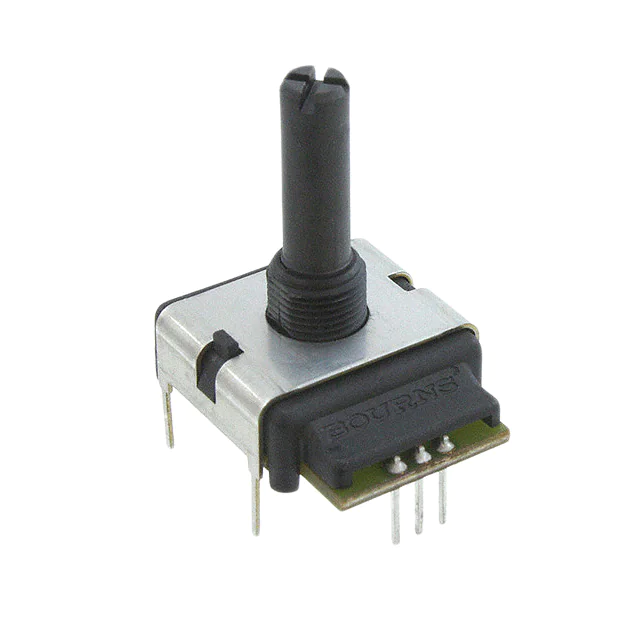

ECW1J-R24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
2,934 |
|
Datasheet |
ECW | Tray | Active | Not Verified | Mechanical | 24 | - | 6mm Dia Slotted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
EAW0J-B24-AE0128LROTARY ENCODER MECHANICAL 128PPR |
2,725 |
|
Datasheet |
ACE™ | Tray | Active | Not Verified | Mechanical | 128 | - | 1/4" Dia Slotted End | Binary (Absolute) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|
292V1X24BROTARY ENCODER OPTICAL 24PPR |
2,743 |
|
Datasheet |
292 | Tray | Active | Not Verified | Optical | 24 | 2.97V ~ 3.63V | Hole for Shaft | Quadrature, 2-Bit | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
291C6022F624ABROTARY ENCODER OPTICAL 6PPR |
3,022 |
|
Datasheet |
291 | Tray | Active | Not Verified | Optical | 6 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
REC16K25-205-B16MM MANUAL ENCODER, SINGLE SHAF |
4,421 |
|
Datasheet |
REC16K | Box | Active | Not Verified | Optical | 25 | 5V | 6.35mm Dia Flatted End | Digital, Open Collector | No | Yes | PCB, Through Hole | Vertical | PC Pin | 2M | - | - |
|
EM14A1D-C24-L032NROTARY ENCODER OPTICAL 32PPR |
3,535 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

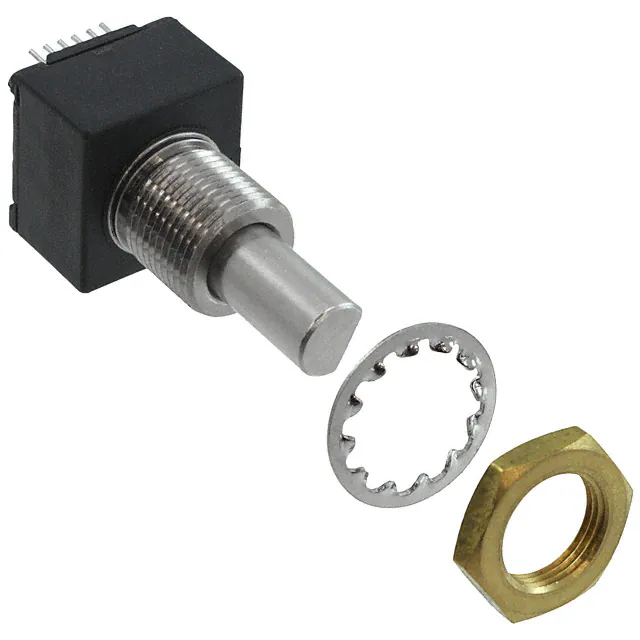

EM14R0D-M20-L064SROTARY ENCODER OPTICAL 64PPR |
2,297 |
|
Datasheet |
EM14 | Bulk | Active | Not Verified | Optical | 64 | 5V | 6mm Dia Flatted End | Quadrature (Incremental) | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AMT102-D2048-I8000-SAMT10, RADIAL, CAP, SINGLE ENDED |
1,527 |
|
Datasheet |
AMT10 | Box | Active | - | Incremental | 2048 | 3.6V ~ 5.5V | 8mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D2048-I5000-SAMT10, RADIAL, CAP, SINGLE ENDED |
2,159 |
|
Datasheet |
AMT10 | Box | Active | - | Incremental | 2048 | 3.6V ~ 5.5V | 5mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
RES20-50-200ROTARY ENCODER OPTICAL 50PPR |
1,912 |
|
Datasheet |
RE | Tray | Active | Not Verified | Optical | 50 | 5V | Shaft | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | User Selectable | PC Pin | - | - | - |
|
AEDR-9820A-102AUTO HT, ENCODER 225LPI, REEL 10 |
188 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | 225 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | Digital | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

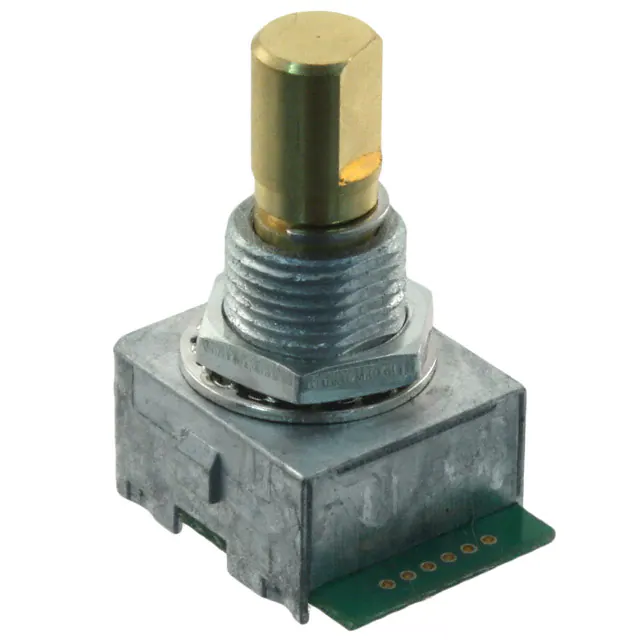

C14D16P-A3ROTARY ENCODER OPTICAL 16PPR |
2,137 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | 16 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
AEDR-9930EL-102LINEAR 397LPI ENCODER,TNR 100 PC |
3,789 |
|
Datasheet |
AEDR | Tape & Reel (TR) | Active | - | Incremental | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | Digital | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
513385ROTARY ENCODER MECHANICAL 12PPR |
4,781 |
|
Datasheet |
51 | Bulk | Active | Not Verified | Mechanical | 12 | - | 1/8" Dia Flatted End | BCD (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
EMS22Q31-B28-LS4ROTARY ENCODER MAGNETIC 256PPR |
3,896 |
|
Datasheet |
- | Tray | Active | Not Verified | Magnetic | 256 | 3.3V | 1/4" Dia Round End | Quadrature (Incremental) | No | - | Panel Mount | Vertical | PC Pin | 100M | - | - |
|

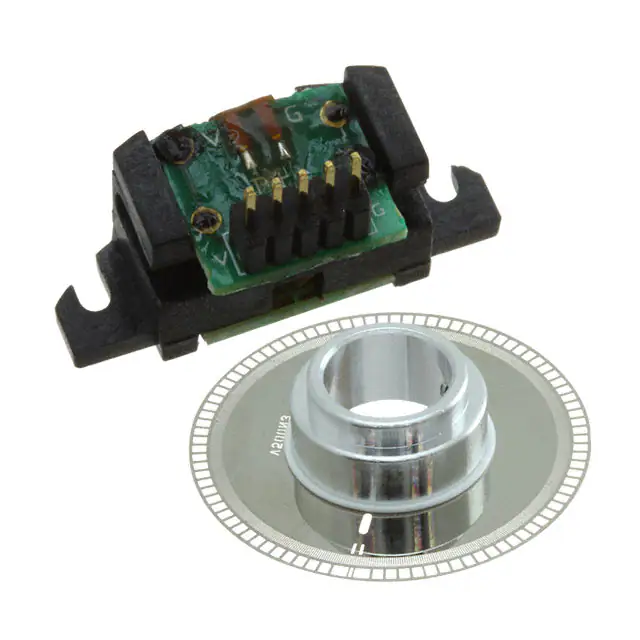

AEDB-9140-A13ROTARY ENCODER OPTICAL 500PPR |
2,353 |
|
Datasheet |
AEDB-9140 | Bulk | Active | Not Verified | Optical | 500 | 5V | 8mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
ENA1J-B28-L00100LROTARY ENCODER OPTICAL 100PPR |
2,859 |
|
Datasheet |
EN | Bulk | Active | Not Verified | Optical | 100 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
62A11-01-PROTARY ENCODER OPTICAL 32PPR |
2,480 |
|
Datasheet |
62A | Bulk | Active | Not Verified | Optical | 32 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
