Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1083066INCREMENTAL ENCODERS, DFS60, DFS |
4,787 |
|
Datasheet |
DFS60 | Bulk | Active | - | Incremental | 1024 | 4.5V ~ 32V | Hole for Shaft | Quadrature (Incremental) | No | No | Chassis Mount | User Selectable | Cable | 36B | - | - |
|
|
1038033MAGNETIC LINEAR ENCODERS, TTK70, |
3,767 |
|
Datasheet |
TTK70 | Bulk | Active | - | Magnetic | - | 4.5V ~ 30V | Shaft | SSI | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
|
1037434MAGNETIC LINEAR ENCODERS, TTK70, |
3,474 |
|
Datasheet |
TTK70 | Bulk | Active | - | Magnetic | - | 7V ~ 12V | Shaft | Digital | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
|
6039749WIRE DRAW ENC ANALOG |
4,755 |
|
Datasheet |
EcoLine | Bulk | Active | - | Absolute | - | 19V ~ 33V | Cable Pull | Quadrature (Analog) | No | No | Chassis Mount | User Selectable | Cable | 1M | - | - |
|
|
6028625WIRE DRAW MECHANISM |
1,478 |
|
Datasheet |
- | Bulk | Active | - | Mechanical | - | - | Cable Pull | Digital | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|
|
6028626WIRE DRAW MECHANISM, MRA-F130-10 |
1,071 |
|
Datasheet |
- | Bulk | Active | - | Mechanical | - | - | Thumbwheel | Digital | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|
|
6028627WIRE DRAW MECHANISM |
4,123 |
|
Datasheet |
- | Bulk | Active | - | Mechanical | - | - | Cable Pull | Digital | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|

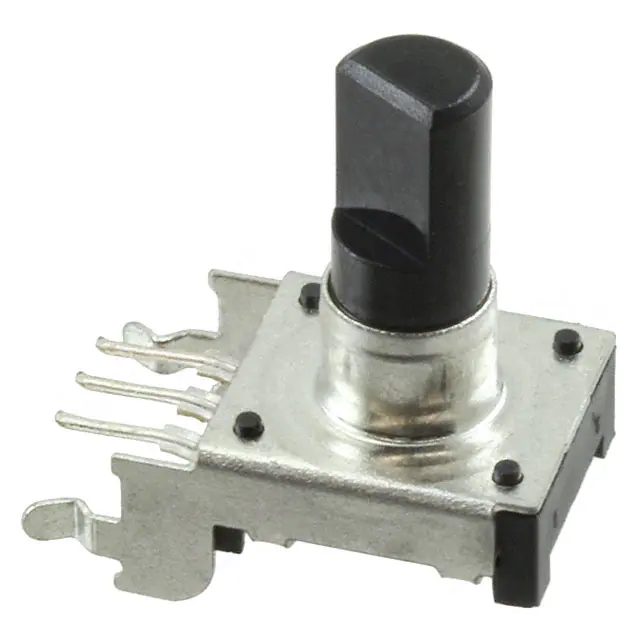

PEC12R-2120F-N0012ROTARY ENCODER MECHANICAL 12PPR |
4,695 |
|
Datasheet |
PEC12R | Tray | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC12R-2130F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,166 |
|
Datasheet |
PEC12R | Bulk | Active | Not Verified | Mechanical | 12 | - | 6mm Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
TMR311023 Bit Angular Encoder IC |
100 |
|
Datasheet |
- | Bulk | Active | - | Magnetic | Programmable | 3.3V ~ 5V | External Magnet, Not Included | SPI | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
12CE1H25F12224ROT ENCODER MECH 12PPR BLUE LED |
3,397 |
|
Datasheet |
12CE | Tray | Active | Not Verified | Mechanical | 12 | 5V | 6mm Dia Flatted End | Quadrature, 2-Bit | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
RMM44A3A00Magnet for recessing in shafts |
1,987 |
|
Datasheet |
RMM Magnet | Tape & Box (TB) | Active | - | Magnetic | - | - | - | - | No | No | - | - | - | - | - | - |
|
|
RMH06A3A00Magnet for assembly into shaft |
3,613 |
|
Datasheet |
RMH Magnet | Tape & Box (TB) | Active | - | Magnetic | - | - | - | - | No | No | - | - | - | - | - | - |
|
|
KR9600-2672PKEYBOARD ENCODER |
2,204 |
|
Datasheet |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

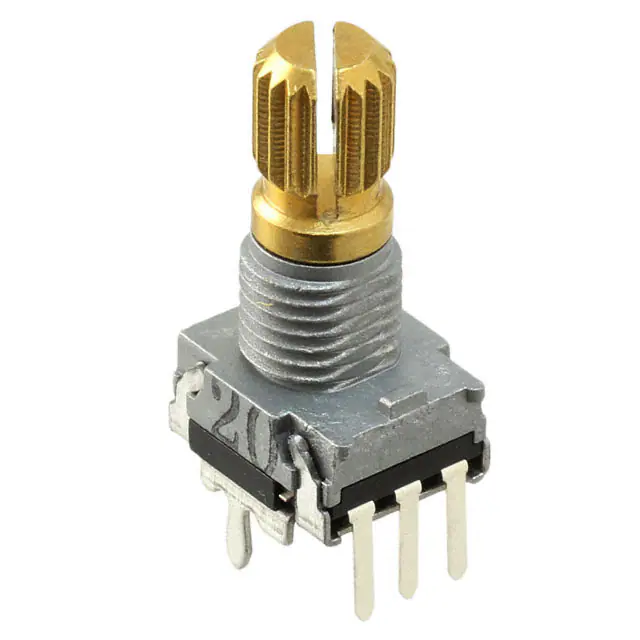

EC09P20V-217ROTARY ENCODER MECHANICAL 20PPR |
3,747 |
|
Datasheet |
- | Bulk | Obsolete | Not Verified | Mechanical | 20 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
RMA05A3A00Magnet for assembly onto shaft |
4,484 |
|
Datasheet |
RMA Magnet | Tape & Box (TB) | Active | - | Magnetic | - | - | - | - | No | No | - | - | - | - | - | - |
|
2591MICRO GEARMTR 2PK OPTICL ENC KIT |
1,707 |
|
Datasheet |
- | - | Active | Not Verified | Optical | 12 | 3.3V | Hole for Shaft | Digital, Quadtrature | No | No | Servo Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
512-15020000011HOLLOW-SHAFT ENCODER, THT VERT |
3,697 |
|
Datasheet |
- | Box | Active | Not Verified | Incremental | 2 | 24V | Hole for Shaft | Pulse | Yes | No | Surface Mount | Vertical | SMD (SMT) Tab | 10K | - | - |
|
427-051141AL0322-BIT ENCODER, SMD |
3,803 |
|
Datasheet |
- | Box | Active | Not Verified | - | 2 | 5V | 6mm Dia Flatted End | Pulse | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|
510E1A48F209PBROTARY ENCODER MECHANICAL 9PPR |
3,238 |
|
Datasheet |
510 | Bulk | Obsolete | Not Verified | Mechanical | 9 | - | 1/4" Dia Flatted End | Gray Code (Absolute) | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
