| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15S-19M1-1000NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
4,385 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 1000 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-19M1-0500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,450 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 500 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|

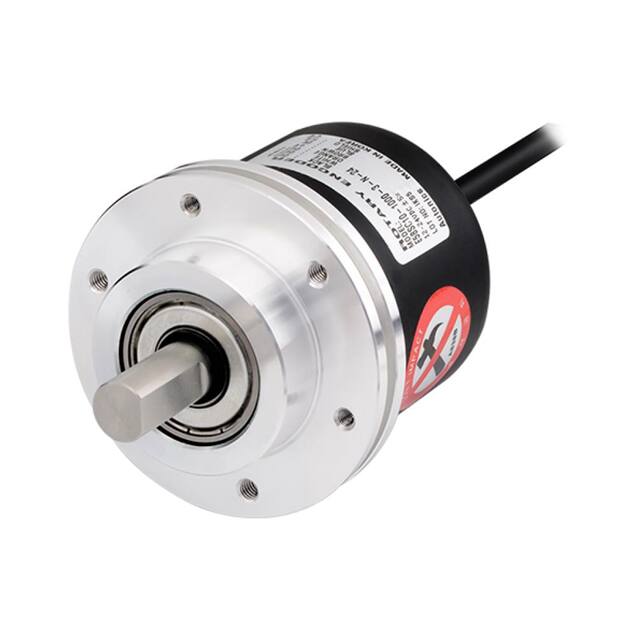

E58SC10-2000-3-V-24ENCODER 58MM 2000PPR 12-24VDC |
3,506 |
|
Datasheet |
E58 | Box | Active | Not Verified | Incremental | 2000 | 12V ~ 24V | 10mm Dia Flatted End | Voltage | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40H10-5000-3-T-5ENCODER 40MM 5000PPR 5VDC |
1,917 |
|
Datasheet |
E40H | Retail Package | Active | Not Verified | Incremental | 5000 | 5V | Hole for Shaft | Totem Pole | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40H12-2500-6-L-5ENCODER 40MM 2500PPR 5VDC |
3,739 |
|
Datasheet |
E40H | Box | Active | Not Verified | Incremental | 2500 | 5V | Hole for Shaft | Quadrature Line Driver with Index (Incremental) | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
15T-01SA-4096NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,698 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 4096 | 5V ~ 28V | 10mm Open Center | Open Collector | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-04SA-2048NV1RHV-M001.5" DIA INCREMENTAL ENCODER 6MM |
1,595 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 2048 | 5V ~ 28V | 10mm Open Center | Quadrature Line Driver with Index (Incremental) | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-4096NV1ROC-M001.5" DIA INCREMENTAL ENCODER 8MM |
1,881 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 4096 | 5V ~ 28V | 10mm Open Center | Open Collector | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-2500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 8MM |
3,621 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 2500 | 5V ~ 28V | 10mm Open Center | Quadrature Line Driver with Index (Incremental) | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-19M1-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
3,463 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 2048 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-02SA-2500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 3/8 |
1,453 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 2500 | 5V ~ 28V | 10mm Open Center | Open Collector | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-14SA-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 8MM |
3,877 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 2048 | 5V ~ 28V | 10mm Open Center | Open Collector | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-04SA-2500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 6MM |
2,024 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 2500 | 5V ~ 28V | 10mm Open Center | Quadrature Line Driver with Index (Incremental) | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
15S-20M6-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
1,491 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 2048 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15S-20M6-2500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
4,384 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 2500 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15S-20M6-3600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
4,446 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 3600 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-19M1-3600NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
4,080 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 3600 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
15S-19M1-2500NV1ROC-M001.5" DIA INCREMENTAL ENCODER 1/4 |
2,062 |
|
Datasheet |
15S | Box | Active | Not Verified | Incremental | 2500 | 5V ~ 28V | Shaft | Open Collector | No | No | Servo Mount | User Selectable | Cable | 12B | - | - |
|
|
15T-01SA-2500NV1RHV-M001.5" DIA INCREMENTAL ENCODER 1/4 |
1,072 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 2500 | 5V ~ 28V | 10mm Open Center | Quadrature Line Driver with Index (Incremental) | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
|
|
15T-04SA-2048NV1ROC-M001.5" DIA INCREMENTAL ENCODER 6MM |
2,175 |
|
Datasheet |
15T | Box | Active | Not Verified | Incremental | 2048 | 5V ~ 28V | 10mm Open Center | Open Collector | No | No | Chassis Mount, Motors | User Selectable | Cable | - | - | - |
