Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5700#A02ROTARY ENCODER OPTICAL 500PPR |
3,934 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 500 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | Panel Mount | Vertical | Terminal Pins | 12M | - | - |
|
|
HEDS-5700#C01ROTARY ENCODER OPTICAL 100PPR |
2,924 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 100 | 5V | 6mm Dia Round End | Quadrature (Incremental) | No | No | Panel Mount | Vertical | Terminal Pins | 12M | - | - |
|
|
HEDS-5700#C02ROTARY ENCODER OPTICAL 100PPR |
1,821 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 100 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | Panel Mount | Vertical | Terminal Pins | 12M | - | - |
|
|
HEDS-5700#F00ROTARY ENCODER OPTICAL 256PPR |
3,332 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 256 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel Mount | Vertical | Terminal Pins | 12M | - | - |
|
|
HEDS-5700#F11ROTARY ENCODER OPTICAL 256PPR |
2,200 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 256 | 5V | 6mm Dia Round End | Quadrature (Incremental) | Yes | No | Panel Mount | Vertical | Terminal Pins | 1M | - | - |
|
|
HEDS-5700#F12ROTARY ENCODER OPTICAL 256PPR |
4,003 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 256 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel Mount | Vertical | Terminal Pins | 1M | - | - |
|
|
HEDS-5700#G00ROTARY ENCODER OPTICAL 360PPR |
4,416 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 360 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | No | No | Panel Mount | Vertical | Terminal Pins | 12M | - | - |
|
|
HEDS-5700#I02ROTARY ENCODER OPTICAL 512PPR |
1,071 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 512 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | No | No | Panel Mount | Vertical | Terminal Pins | 12M | - | - |
|
|
HEDS-5700#I10ROTARY ENCODER OPTICAL 512PPR |
3,107 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 512 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | Yes | No | Panel Mount | Vertical | Terminal Pins | 1M | - | - |
|
|
HEDS-5700#K10ROTARY ENCODER OPTICAL 96PPR |
3,325 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 96 | 5V | 1/4" Dia Round End | Quadrature (Incremental) | Yes | No | Panel Mount | Vertical | Terminal Pins | 1M | - | - |
|
|
HEDS-5740#I02ROTARY ENCODER OPTICAL 512PPR |
2,304 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 512 | 5V | 1/4" Dia Flatted End | Quadrature with Index (Incremental) | No | No | Panel Mount | Vertical | Terminal Pins | 12M | - | - |
|
|
HEDS-9041-J00ROTARY ENCODER OPTICAL 1024PPR |
4,543 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 1024 | 5V | Codewheel Not Included | Quadrature with Index (Incremental) | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-9041#B00ROTARY ENCODER OPTICAL 1000PPR |
2,804 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 1000 | 5V | Codewheel Not Included | Quadrature with Index (Incremental) | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|

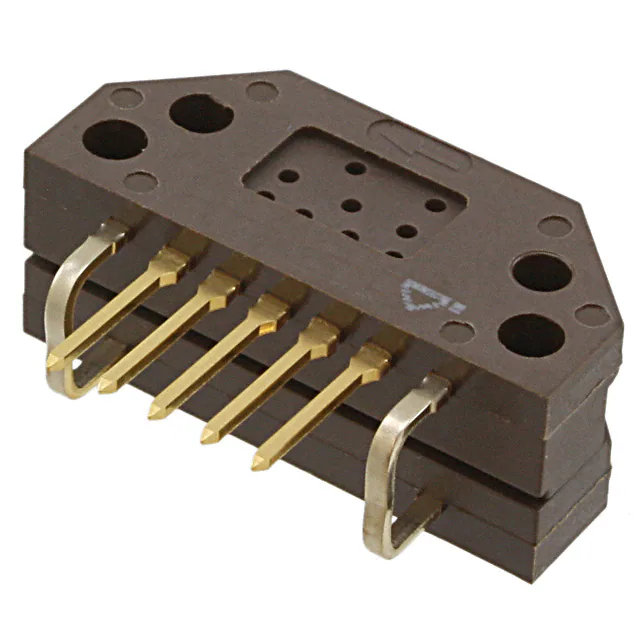

HEDS-9200#360ROTARY ENCODR OPTICAL 360 LPI |
3,394 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 360 LPI | 5V | Codestrip Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9202-R00ROTARY ENCODR OPTICAL 200 LPI |
3,557 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 200 LPI | 5V | Codestrip Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9710-150ROTARY ENCODR OPTICAL 360 LPI |
2,603 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 360 LPI | 5V | Codestrip Not Included | Quadrature (Analog) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9720#P55ROTARY ENCODR OPTICAL 150 LPI |
1,344 |
|
Datasheet |
HEDS | Bulk | Active | Not Verified | Optical | 150 LPI | 5V | Codestrip Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9721#P51ROTARY ENCODR OPTICAL 150 LPI |
1,912 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 150 LPI | 5V | Codestrip Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-9731#150ROTARY ENCODR OPTICAL 360 LPI |
4,530 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 360 LPI | 2.8V ~ 5.2V | Codestrip Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-9731#154ROTARY ENCODR OPTICAL 360 LPI |
3,913 |
|
Datasheet |
HEDS | Bulk | Obsolete | Not Verified | Optical | 360 LPI | 2.8V ~ 5.2V | Codestrip Not Included | Quadrature (Incremental) | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
