Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Programmable | Encoder Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Output Type | Detent | Built in Switch | Mounting Style | Orientation | Termination Style | Rotational Life (Cycles Min) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
61S100-2ROTARY ENCODER OPTICAL 100PPR |
3,746 |
|
Datasheet |
61S | Bulk | Active | Not Verified | Optical | 100 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
61S128-2ROTARY ENCODER OPTICAL 128PPR |
2,579 |
|
Datasheet |
61S | Bulk | Active | Not Verified | Optical | 128 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
61S64-2ROTARY ENCODER OPTICAL 64PPR |
4,656 |
|
Datasheet |
61S | Bulk | Obsolete | Not Verified | Optical | 64 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
513360-11ROTARY ENCODER MECHANICAL 11PPR |
2,545 |
|
Datasheet |
51 | Bulk | Active | Not Verified | Mechanical | 11 | - | 1/8" Dia Flatted End | BCD (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
513360-9ROTARY ENCODER MECHANICAL 9PPR |
1,759 |
|
Datasheet |
51 | Bulk | Active | Not Verified | Mechanical | 9 | - | 1/8" Dia Flatted End | BCD (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
513361-10ROTARY ENCODER MECHANICAL 10PPR |
4,157 |
|
Datasheet |
51 | Bulk | Active | Not Verified | Mechanical | 10 | - | 1/8" Dia Flatted End | BCD (Absolute) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
|
61S75-2-060ROTARY ENCODER OPTICAL 75PPR |
2,511 |
|
Datasheet |
61S | Bulk | Active | Not Verified | Optical | 75 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
62S15-M5-PHVROTARY ENCODER OPTICAL 24PPR |
3,085 |
|
Datasheet |
62S | Bulk | Active | Not Verified | Optical | 24 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
25BSP22-B-3-16CROTARY ENCODER MECHANICAL 16PPR |
2,891 |
|
Datasheet |
25 | Bulk | Active | Not Verified | Mechanical | 16 | - | 1/4" Dia Flatted End | Binary (Absolute) | No | No | PCB, Through Hole | Right Angle | PC Pin | 50K | - | - |
|
|
62S30-M0-PHROTARY ENCODER OPTICAL 12PPR |
4,202 |
|
Datasheet |
62S | Bulk | Active | Not Verified | Optical | 12 | 5V | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
25LB18-Q-ZROTARY ENCODER MECHANICAL 20PPR |
3,339 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | 20 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR10-QROTARY ENCODER MECHANICAL 36PPR |
3,086 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | 36 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR11-QROTARY ENCODER MECHANICAL 32PPR |
4,414 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | 32 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
25LR22-QROTARY ENCODER MECHANICAL 16PPR |
3,813 |
|
Datasheet |
25L | Bulk | Active | Not Verified | Mechanical | 16 | - | 1/4" Dia Flatted End | Quadrature (Incremental) | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
HEDR-55L1-BY07ROTARY ENCODER OPTICAL 3600PPR |
4,825 |
|
Datasheet |
HEDR | Bulk | Obsolete | Not Verified | Optical | 3600 | 5V | 5mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
|
HEDR-55L2-BY07ROTARY ENCODER OPTICAL 3600PPR |
3,684 |
|
Datasheet |
HEDR | Bulk | Obsolete | Not Verified | Optical | 3600 | 5V | 5mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
|
HEDR-55L2-BY09ROTARY ENCODER OPTICAL 3600PPR |
2,946 |
|
Datasheet |
HEDR | Bulk | Obsolete | Not Verified | Optical | 3600 | 5V | 8mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
|
HEDR-55L2-BYL8ROTARY ENCODER OPTICAL 3600PPR |
2,680 |
|
Datasheet |
HEDR | Bulk | Obsolete | Not Verified | Optical | 3600 | 5V | 6mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|

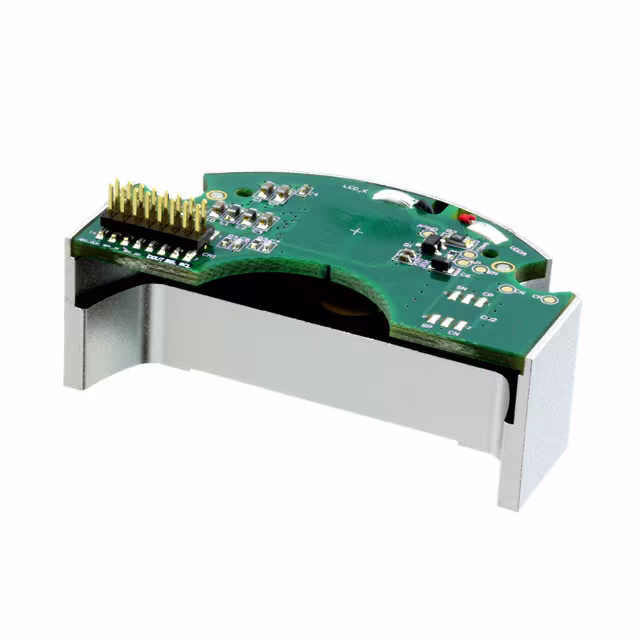

AEAT-9000-1GSH1ROTARY ENCODER OPTICAL 2048PPR |
3,562 |
|
Datasheet |
- | Bulk | Obsolete | Not Verified | Optical | 2048 | 5V | - | Binary (Absolute) | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|
|
HEDR-55L2-BH09ROTARY ENCODER OPTICAL 2048PPR |
4,771 |
|
Datasheet |
HEDR | Bulk | Obsolete | Not Verified | Optical | 2048 | 5V | 8mm Open Center | Quadrature with Index (Incremental) | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
