Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Channels per IC | Voltage - Output | Voltage - Input | Regulator Type | Contents | Current - Output | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

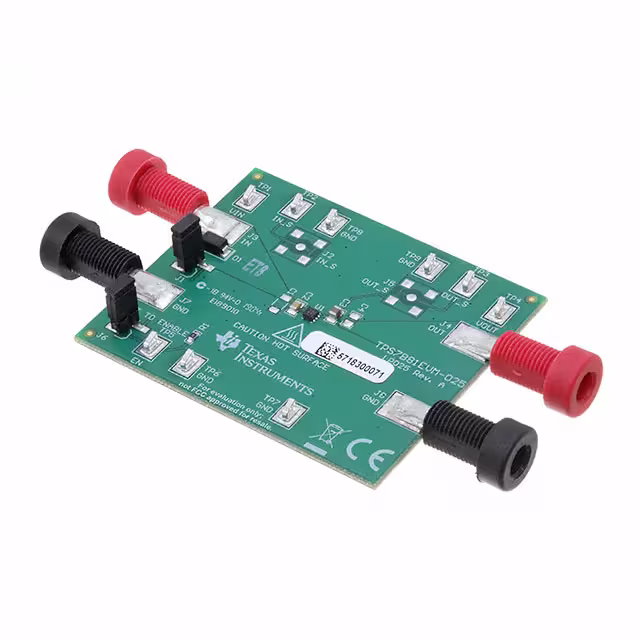

TPS7B81EVM-025EVAL BOARD FOR TPS7B81Q1 |
1,099 |
|
Datasheet |
- | Box | Active | 1 - Single | 5V | 3V ~ 40V | Positive Fixed | Board(s) | 150mA | TPS7B81-Q1 |
|

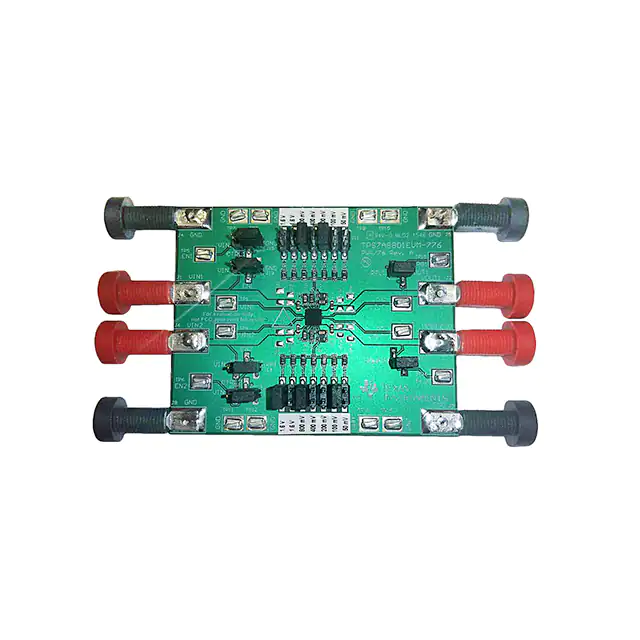

TPS7A8801EVM-776EVAL BOARD FOR TPS7A8801 |
1,193 |
|
Datasheet |
- | Bulk | Active | 2 - Dual | 0.8V ~ 5V | 1.4V ~ 6.5V | Positive Adjustable | Board(s) | 1A, 1A | TPS7A8801 |
|
TPS7A91EVM-831EVAL BOARD FOR TPS7A91 |
2,952 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.8V ~ 5.2V | 1.4V ~ 6.5V | Positive Adjustable | Board(s) | 1A | TPS7A91 |
|

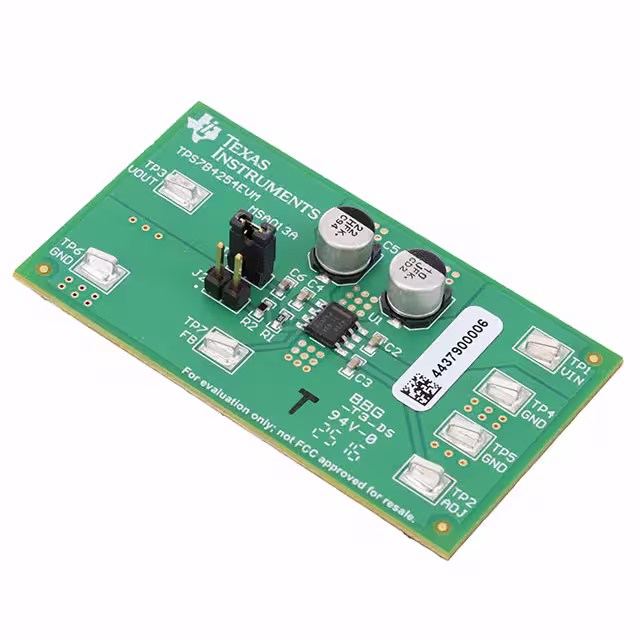

TPS7B4254EVMEVAL BOARD FOR TPS7B4254Q1 |
2,183 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 2V ~ 40V | 4V ~ 40V | Positive Adjustable | Board(s) | 150mA | TPS7B4254-Q1 |
|
TPS746EVM-009EVAL BOARD FOR TPS746 |
1,059 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 48V | - | Positive Adjustable | Board(s) | 1A | TPS746 |
|

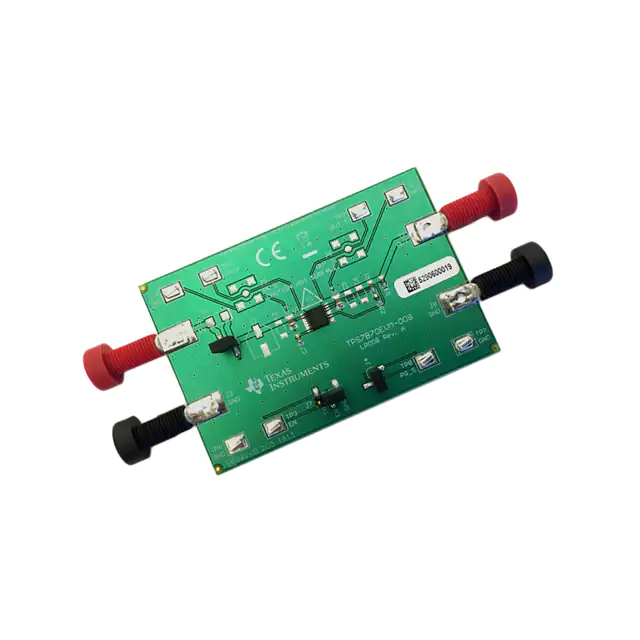

TPS7B70EVM-008EVAL BOARD FOR TPS7B70Q1 |
1,746 |
|
Datasheet |
- | Bulk | Active | 1 - Single | - | - | Positive Adjustable | Board(s) | 300mA | TPS7B70-Q1 |
|
TPS7A78EVM-011EVAL BOARD FOR TPS7A78 |
4,554 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 70 ~ 230 VAC | Positive Fixed | Board(s) | 27mA | TPS7A78 |
|

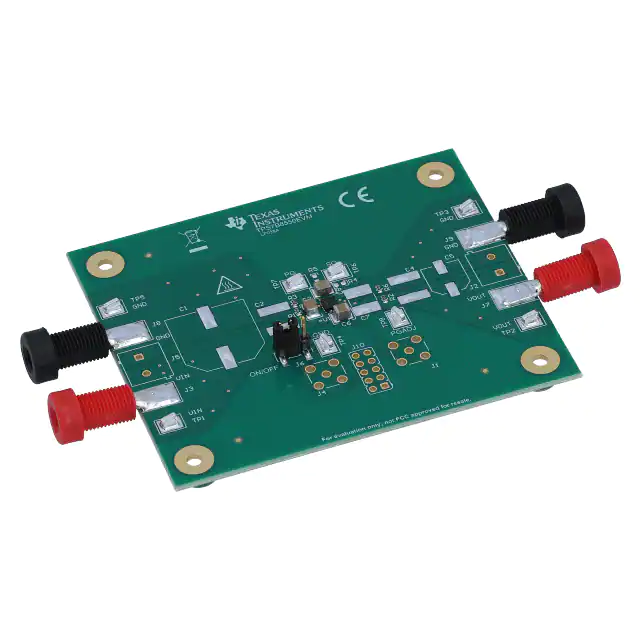

TPS7B8550EVMEVAL BOARD FOR TPS7B8550 |
4,532 |
|
Datasheet |
- | Box | Active | 1 - Single | 3V ~ 20V | 3V ~ 40V | Positive Adjustable | Board(s) | 150mA | TPS7B8550 |
|

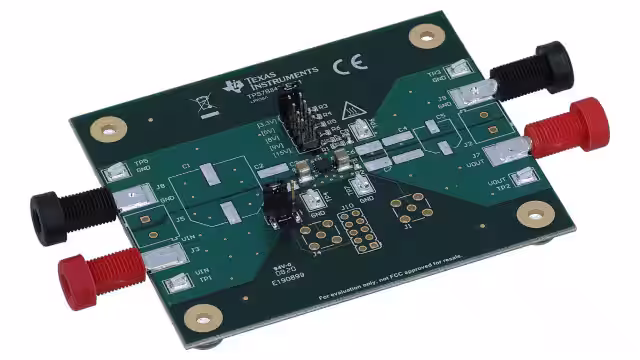

TPS7B8401EVMEVAL BOARD FOR TPS7B8401 |
3,999 |
|
Datasheet |
- | Box | Active | 1 - Single | - | 3V ~ 40V | Positive Adjustable | Board(s) | 150mA | TPS7B8401 |
|
TPS7A84EVM-753EVAL BOARD FOR TPS7A84 |
1,442 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.8V ~ 5V | 1.1V ~ 6.5V | Positive Adjustable | Board(s) | 3A | TPS7A84 |
|

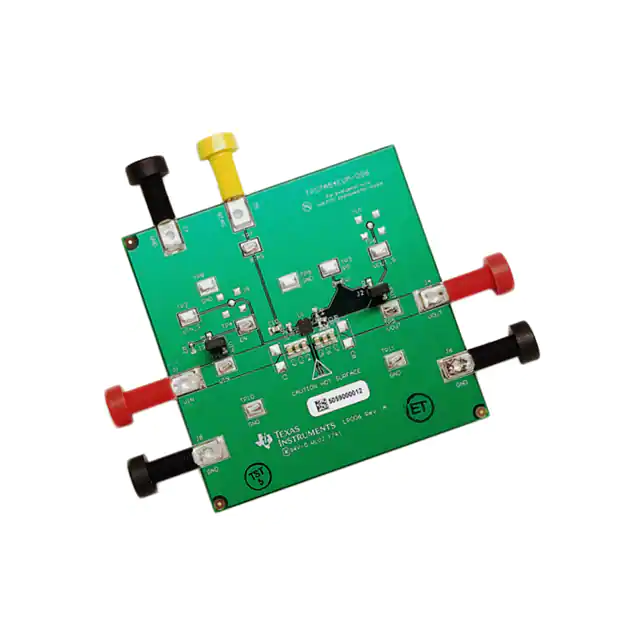

TPS7A54EVM-006EVAL BOARD FOR TPS7A54Q1 |
3,094 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.8V ~ 5V | 1.1V ~ 6.5V | Positive Adjustable | Board(s) | 4A | TPS7A54-Q1 |
|
TLV767EVM-014EVAL BOARD FOR TLV767 |
2,144 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.8V ~ 13.6V | 2.5V ~ 16V | Positive Adjustable | Board(s) | 1A | TLV767 |
|

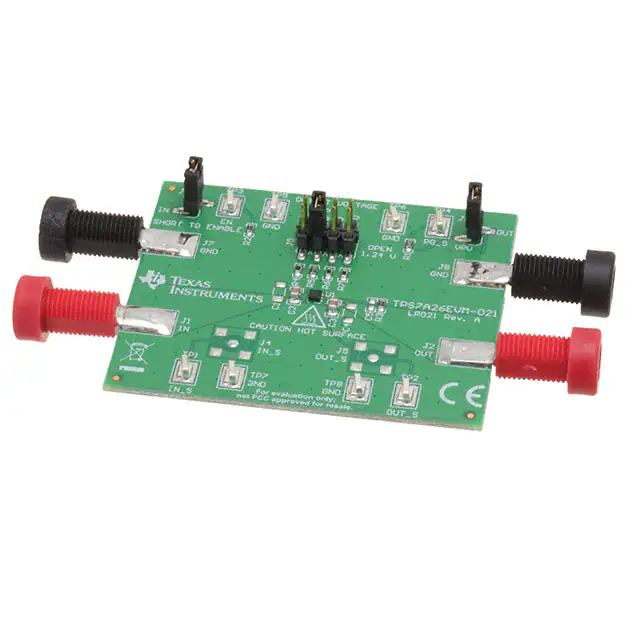

TPS7A26EVM-021EVAL BOARD FOR TPS7A26 |
4,440 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V, 3.3V, 5V or 12V | 2.4V ~ 18V | Positive Adjustable | Board(s) | 500mA | TPS7A26 |
|
TLV751-EVMEVAL BOARD FOR TLV751 |
2,767 |
|
Datasheet |
- | Box | Active | 2 - Dual | 0.55V ~ 5.5V | 1.5V ~ 6V | Positive Adjustable | Board(s) | 500mA, 500mA | TLV751 |
|

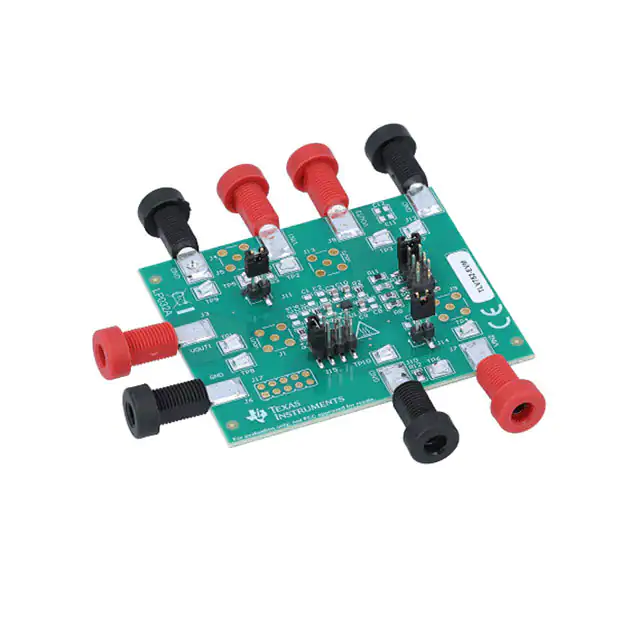

TLV752-EVMEVAL BOARD FOR TLV752 |
3,517 |
|
Datasheet |
- | Box | Active | 2 - Dual | 0.55V ~ 5.5V | 1.5V ~ 6V | Positive Adjustable | Board(s) | 1A, 1A | TLV752 |
|

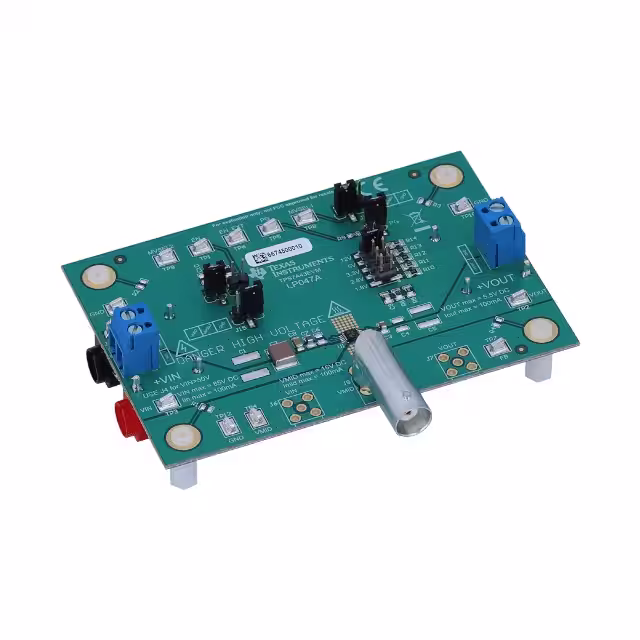

TPS7A43EVM-047EVAL BOARD FOR TPS7A43 |
4,284 |
|
Datasheet |
- | Box | Active | 2 - Dual | 1.8V, 2.8V, 3.3V, 5V or 12V | 4V ~ 85V | Positive Adjustable | Board(s) | 50mA | TPS7A43 |
|

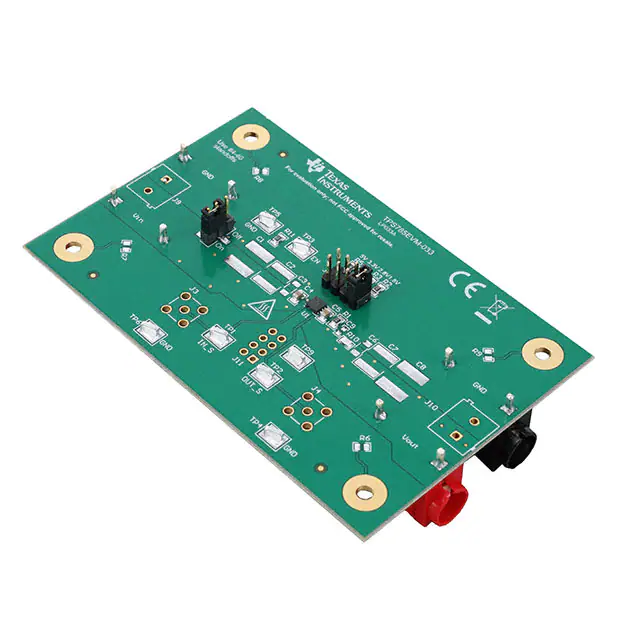

TPS785EVM-033EVAL BOARD FOR TPS785Q1 |
1,870 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.65V ~ 5V, 1.2V ~ 5.5V | 1.65V ~ 6V | Positive Fixed and Adjustable | Board(s) | 1A | TPS785-Q1 |
|

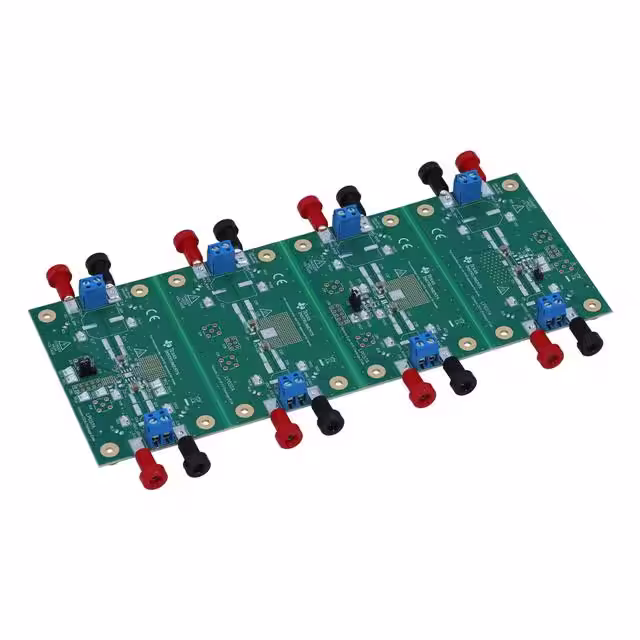

MLTLDO2EVM-037EVAL BOARD DCY DDA KVU |
3,498 |
|
Datasheet |
- | Box | Active | 1 - Single | - | - | - | Partially Populated Board(s) | - | - |
|
TPS7A1901EVM-760EVAL BOARD FOR TPS7A19 |
3,898 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 3.3V or 5V | 4V ~ 40V | Positive Adjustable | Board(s) | 450mA | TPS7A19 |
|

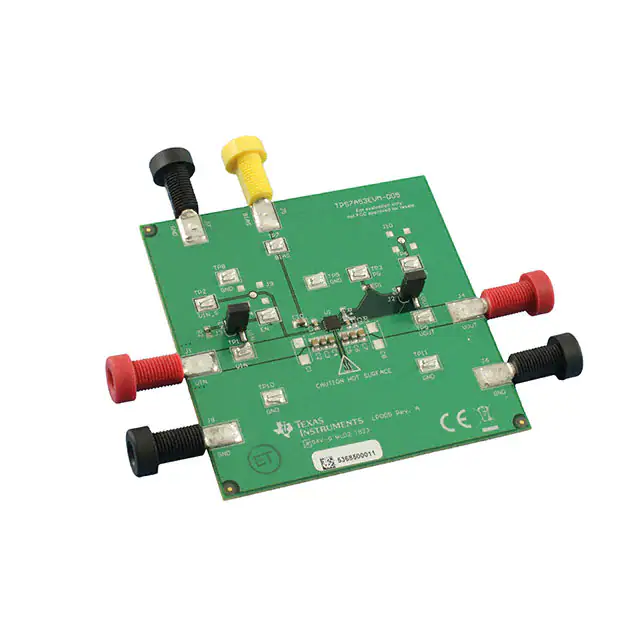

TPS7A53EVM-005EVAL BOARD FOR TPS7A53Q1 |
1,834 |
|
Datasheet |
- | Bulk | Active | 1 - Single | 0.8V ~ 5V | 1.1V ~ 6.5V | Positive Adjustable | Board(s) | 3A | TPS7A53-Q1 |
