Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Channels per IC | Voltage - Output | Voltage - Input | Regulator Type | Contents | Current - Output | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

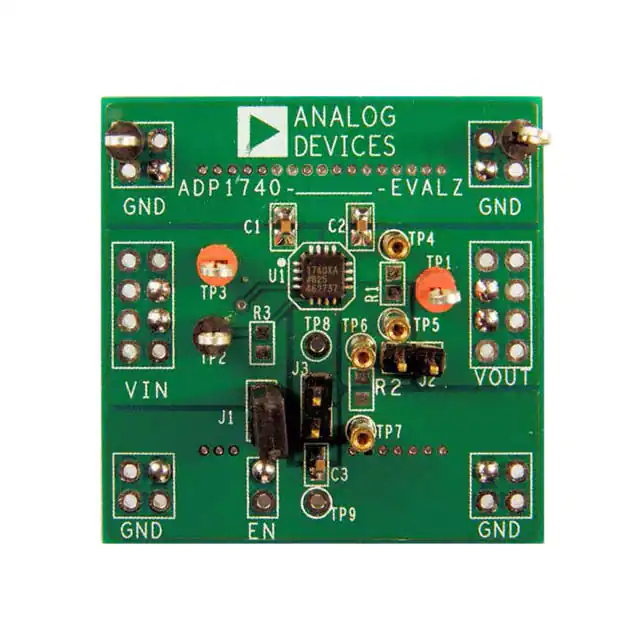

ADP1740-1.5-EVALZEVAL BOARD FOR ADP1740 |
4,998 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.5V | 1.6V ~ 3.6V | Positive Fixed | Board(s) | 2A | ADP1740 |
|

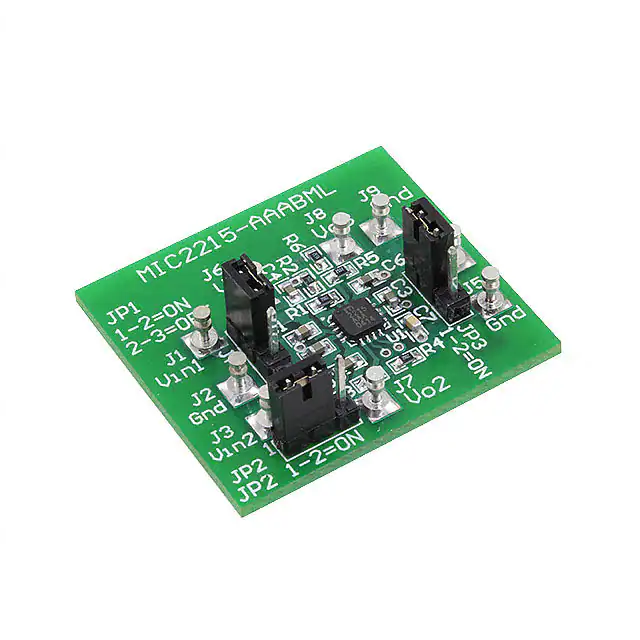

MIC2215-AAABML-EVEVAL BOARD FOR MIC2215 |
4,676 |
|
Datasheet |
- | Box | Discontinued | 3 - Triple | 1.25V ~ 5.5V | 2.25V ~ 5.5V | Positive Adjustable | Board(s) | 250mA, 250mA, 250mA | MIC2215 |
|

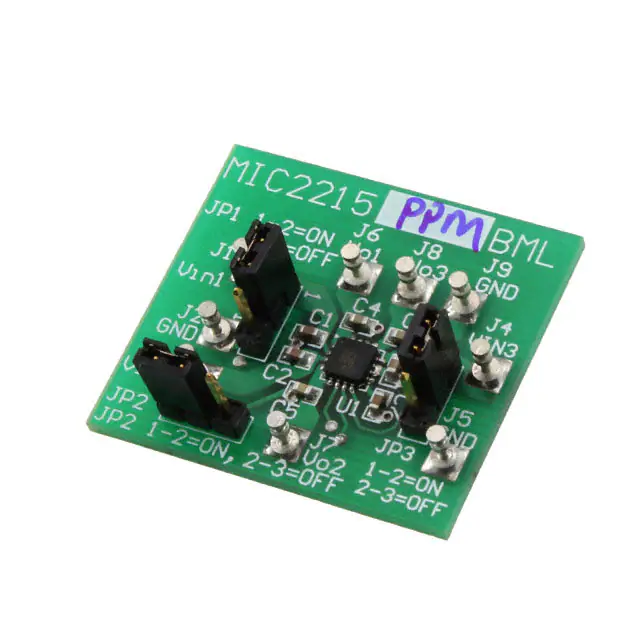

MIC2215-PPMBML-EVEVAL BOARD FOR MIC2215 |
3,385 |
|
Datasheet |
- | Box | Discontinued | 3 - Triple | 2.8V, 3V, 3V | 2.25V ~ 5.5V | Positive Fixed | Board(s) | 250mA, 250mA, 250mA | MIC2215 |
|
MIC38150HYHL-EVEVAL BOARD FOR MIC38150 |
1,900 |
|
Datasheet |
HELDO™ | Box | Active | 1 - Single | 1.8V | 3V ~ 5.5V | Positive Adjustable | Board(s) | 1.5A | MIC38150 |
|

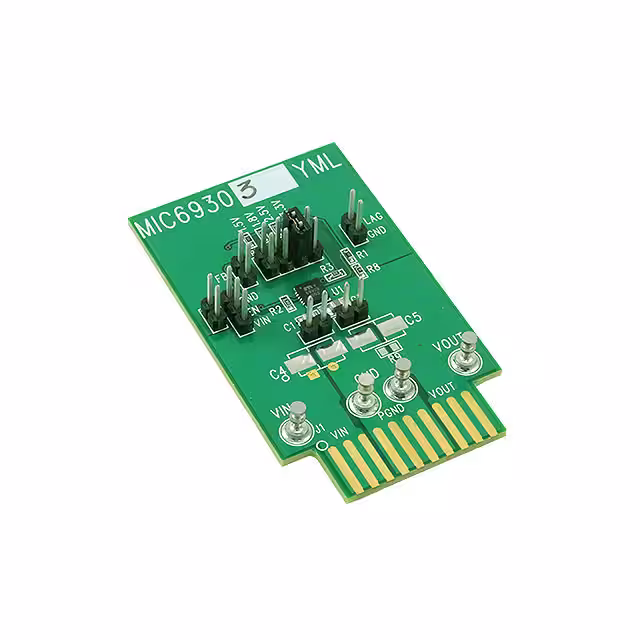

MIC69303YML-EVEVAL BOARD FOR MIC69303 |
2,343 |
|
Datasheet |
- | Box | Discontinued | 1 - Single | 0.5V ~ 5V | 1.65V ~ 5.5V | Positive Adjustable | Board(s) | 3A | MIC69303 |
|

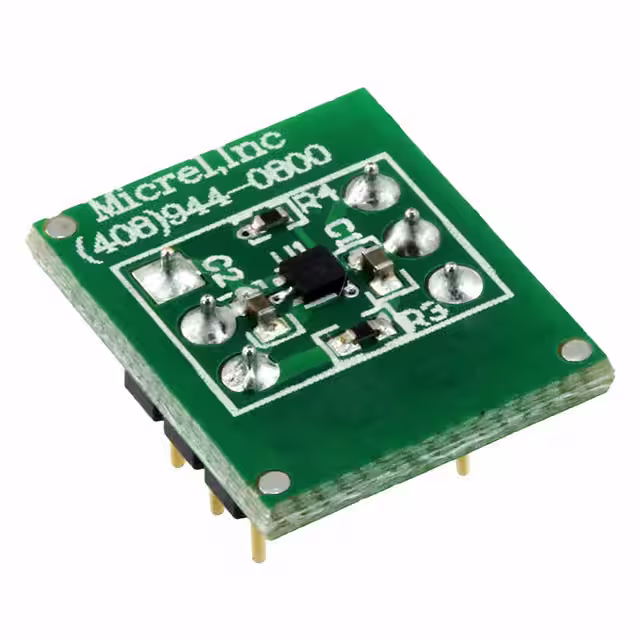

MIC94325YMT-EVEVAL BOARD FOR MIC94325 |
1,017 |
|
Datasheet |
Ripple Blocker™ | Box | Discontinued | 1 - Single | - | 1.8V ~ 3.6V | Positive Adjustable | Board(s) | 500mA | MIC94325 |
|
MIC94355-FYMT-EVEVAL BOARD FOR MIC94355 |
1,054 |
|
Datasheet |
Ripple Blocker™ | Box | Discontinued | 1 - Single | 1.5V | 1.8V ~ 3.6V | Positive Fixed | Board(s) | 500mA | MIC94355 |
|
MIC94355-GYMT-EVEVAL BOARD FOR MIC94355 |
1,223 |
|
Datasheet |
Ripple Blocker™ | Box | Discontinued | 1 - Single | 1.8V | 1.8V ~ 3.6V | Positive Fixed | Board(s) | 500mA | MIC94355 |
|

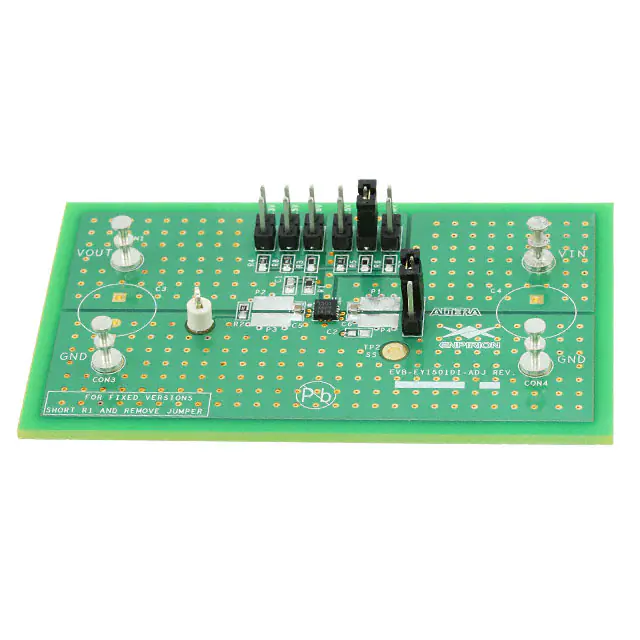

EVB-EY1501DI-ADJEVAL BOARD FOR EY1501DIADJ |
1,950 |
|
Datasheet |
Enpirion® | Bulk | Obsolete | 1 - Single | 0.8V ~ 5V | 2.2V ~ 6V | Positive Adjustable | Board(s) | 1A | EY1501DI-ADJ |
|
TPS7H1201HTEVMEVAL BOARD FOR TPS7H1201HT |
1,083 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.8V | 1.5V ~ 7V | Positive Adjustable | Board(s) | 500mA | TPS7H1201-HT |
|

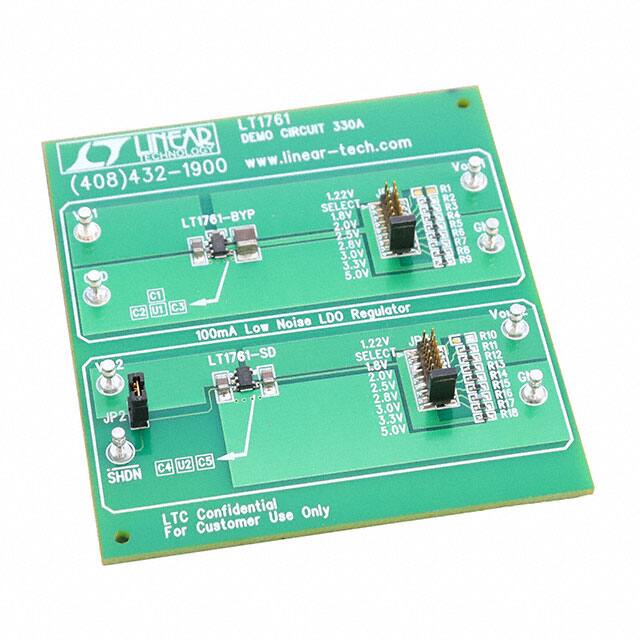

DC330AEVAL BOARD FOR LT1761 |
2,565 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.22V, 1.8V, 2V, 2.5V, 2.8V, 3V, 3.3V, 5V | 2.3V ~ 20V | Positive Adjustable | Board(s) | 100mA | LT1761 |
|
MIC5353-1.8YMT EVEVAL BOARD FOR MIC5353 |
4,578 |
|
Datasheet |
- | Box | Discontinued | 1 - Single | 1.8V | 2.6V ~ 6V | Positive Fixed | Board(s) | 500mA | MIC5353 |
|
|
MIC5353-2.8YMT EVEVAL BOARD FOR MIC5353 |
2,196 |
|
Datasheet |
- | Box | Discontinued | 1 - Single | 2.8V | 2.6V ~ 6V | Positive Fixed | Board(s) | 500mA | MIC5353 |
|
|
MIC5353-3.3YMT EVEVAL BOARD FOR MIC5353 |
4,244 |
|
Datasheet |
- | Box | Discontinued | 1 - Single | 3.3V | 2.6V ~ 6V | Positive Fixed | Board(s) | 500mA | MIC5353 |
|
|
MIC69302WR-EVEVAL BOARD FOR MIC69302 |
1,633 |
|
Datasheet |
- | Box | Active | 1 - Single | 0.5V ~ 5V | 1.65V ~ 5.5V | Positive Adjustable | Board(s) | 3A | MIC69302 |
|

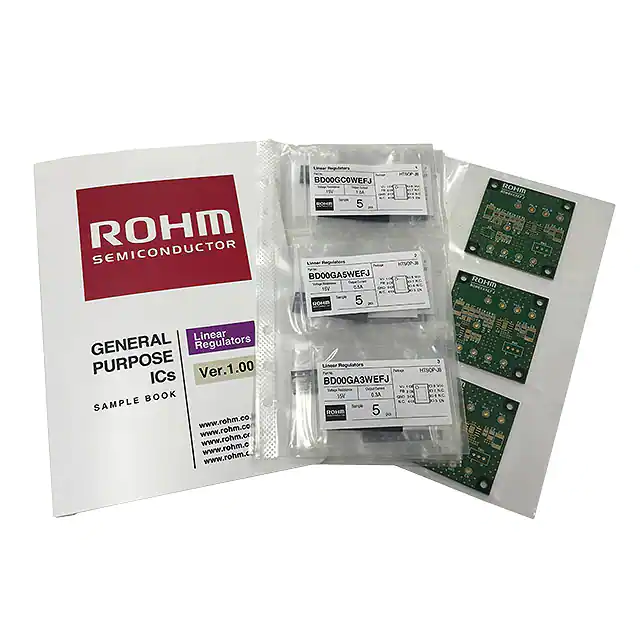

LDO7V10V15V-SMPLBKEVAL BOARD FOR 8-HTSOP |
2,433 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 0.8V ~ 13V | 2.4V ~ 14V | Positive Fixed and Adjustable | Unpopulated (Bare) Board(s) | - | BDxxGxxWEFJ, BDxxHxxWEFJ, BDxxIxxWEFJ |
|
ADP166Z-REDYKITEVAL BOARD FOR ADP166 |
2,267 |
|
Datasheet |
- | Box | Active | 1 - Single | 1.2V ~ 4.2V | 2.2V ~ 5.5V | Positive Adjustable | Board(s) | 150mA | ADP166 |
|
|
FEBFAN25801-MPSLDO1-GEVBEVAL BOARD FOR FAN25801 |
3,038 |
|
Datasheet |
- | Box | Active | 1 - Single | 5.14V | 2.3V ~ 5.5V | Positive Fixed | Board(s) | 250mA | FAN25801 |
|
EVB_RT9069-33GQUEVAL BOARD FOR RT9069 |
3,388 |
|
Datasheet |
- | Box | Active | 1 - Single | 3.3V | 3.5V ~ 36V | Positive Fixed | Board(s) | 200mA | RT9069 |
|
|
MAX1818EVKITEVAL BOARD FOR MAX1818 |
2,827 |
|
Datasheet |
- | Box | Obsolete | 1 - Single | 1.8V | 2.5V ~ 5.5V | Positive Fixed and Adjustable | Board(s) | 500mA | MAX1818 |
