AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

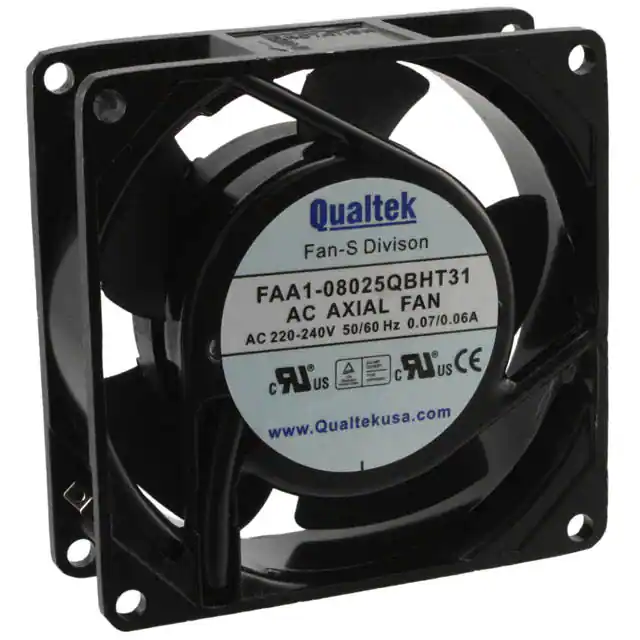

FAA1-08025QBHT31FAN AXIAL 80X25MM 230VAC TERM |
262 |
|
Datasheet |
FAA1-08025 | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 25.00mm | Tubeaxial | - | 27.8dB(A) | 10.00W | 2800 RPM | CE, cURus, TUV | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 0.463 lb (210.01 g) |
|

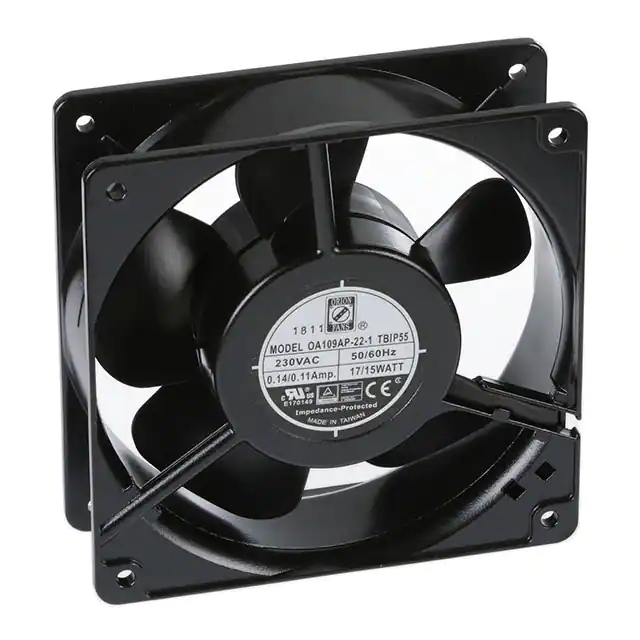

OA109AP-22-1TBIP55FAN AXIAL 120X38MM 230VAC TERM |
2,331 |
|
Datasheet |
OA109 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 38.00mm | Tubeaxial | - | 46.0dB | 15.00W | 3100 RPM | cURus, TUV | 2 Terminals | -4 ~ 158°F (-20 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 1.1 lbs (499.0 g) |
|

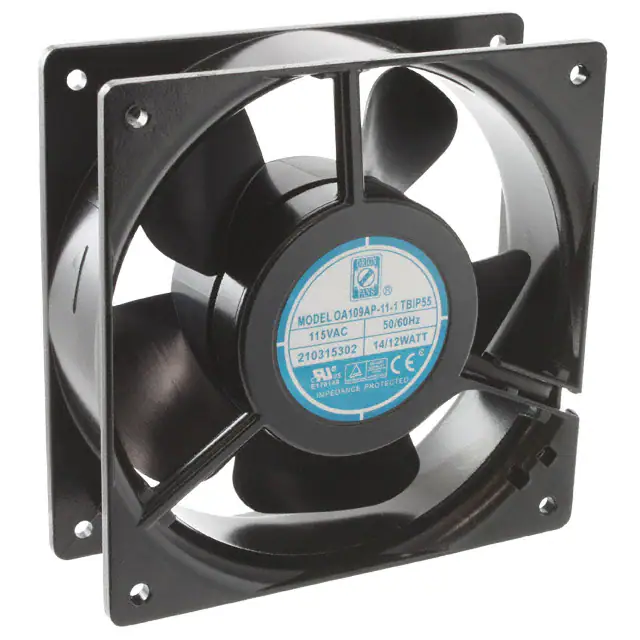

OA109AP-11-1TBIP55FAN AXIAL 120X38MM 115VAC TERM |
1,374 |
|
Datasheet |
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 38.00mm | Tubeaxial | - | 46.0dB | 12.00W | 3100 RPM | cURus, TUV | 2 Terminals | -4 ~ 158°F (-20 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 1.1 lbs (499.0 g) |
|

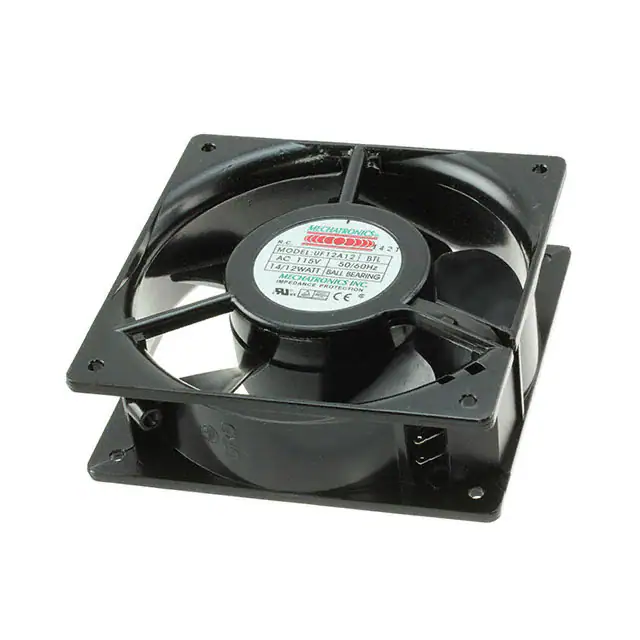

UF12A12-BTLRFAN AXIAL 120X38MM 115VAC |
101 |
|
Datasheet |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 81.0 CFM (2.27m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 38.00mm | Tubeaxial | - | 38.0dB(A) | 12.00W | 2300 RPM | CE, cUL, TUV, UL | 2 Terminals | -40 ~ 158°F (-40 ~ 70°C) | - | 1.2 lbs (544.3 g) |
|

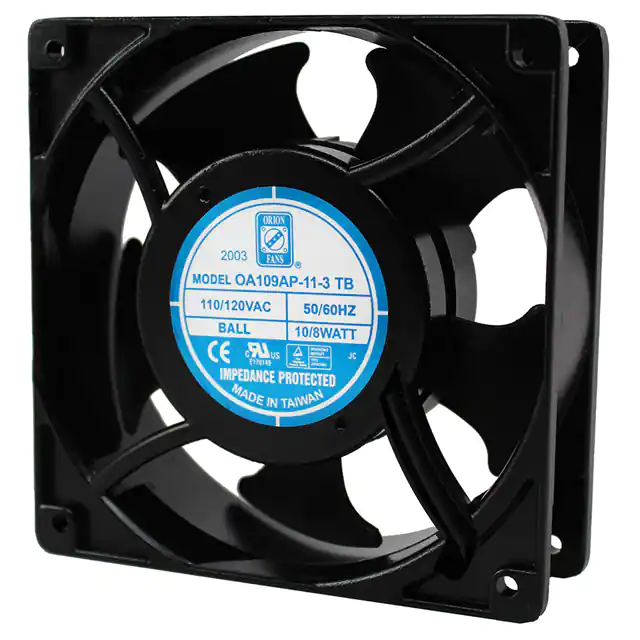

OA109AP-11-3TBFAN AXIAL 120X38MM 115VAC TERM |
1,028 |
|
Datasheet |
OA109 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 51.0 CFM (1.43m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 38.50mm | Tubeaxial | - | 25.0dB | 8.00W | 1600 RPM | CE, cURus, TUV, UR | 2 Terminals | -4 ~ 167°F (-20 ~ 75°C) | - | 1.2 lbs (544.3 g) |
|

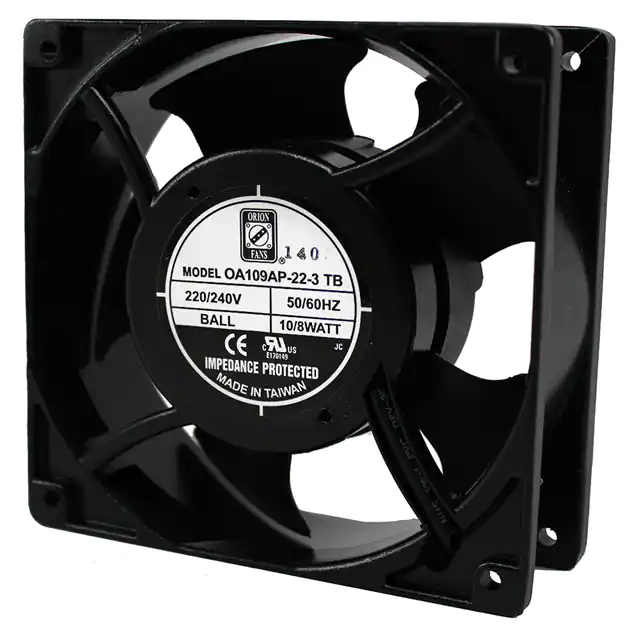

OA109AP-22-3TBFAN AXIAL 120X38MM 230VAC TERM |
145 |
|
Datasheet |
OA109 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 51.0 CFM (1.43m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 38.50mm | Tubeaxial | - | 25.0dB | 8.00W | 1600 RPM | CE, cURus, TUV, UR | 2 Terminals | -4 ~ 167°F (-20 ~ 75°C) | - | 1.2 lbs (544.3 g) |
|

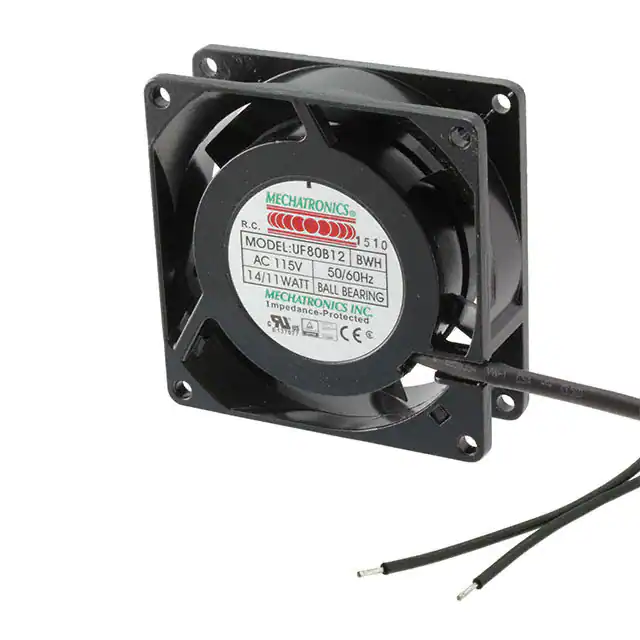

UF80B12-BWHRFAN AXIAL 80X25MM 115VAC |
165 |
|
Datasheet |
UF80B | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 25.00mm | Tubeaxial | - | 35.0dB(A) | 11.00W | 3100 RPM | CE, cUL, TUV, UL | 2 Wire Leads | -40 ~ 158°F (-40 ~ 70°C) | - | 0.617 lb (279.87 g) |
|

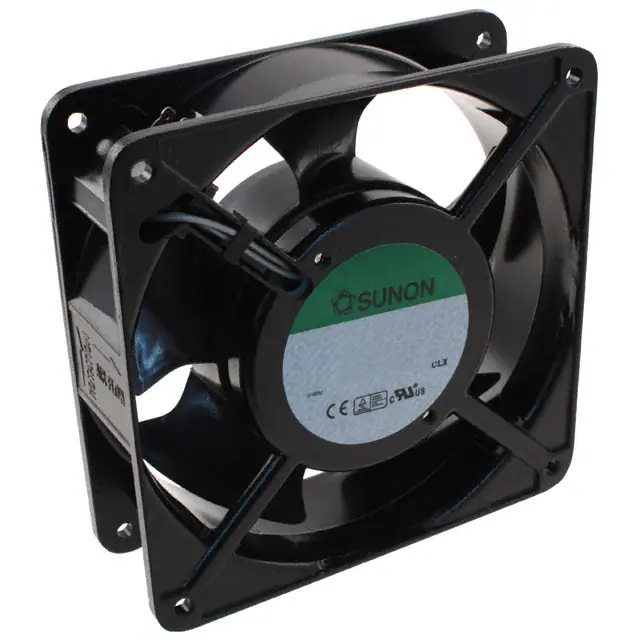

SP103A-1123LBT.GNFAN AXIAL 120X38MM 115VAC TERM |
2,360 |
|
Datasheet |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 78.0 CFM (2.18m³/min) | 0.130 in H2O (32.5 Pa) | Ball | 38.00mm | Tubeaxial | - | 39.0dB(A) | 11.00W | 2300 RPM | CE, CUR, TUV, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.2 lbs (550 g) |
|

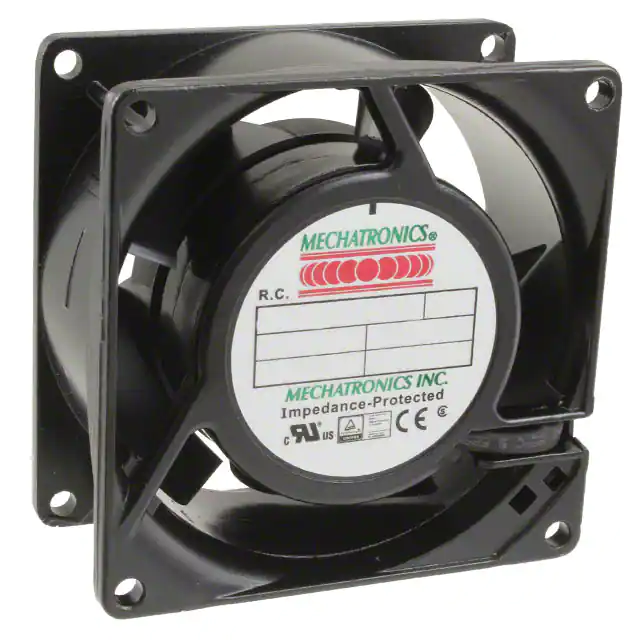

UF80A12-BTHRFAN AXIAL 80X38MM 115VAC |
458 |
|
Datasheet |
UF80A | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 38.00mm | Tubeaxial | - | 36.0dB(A) | 9.00W | 3000 RPM | CE, cUL, TUV, UL | 2 Terminals | -40 ~ 158°F (-40 ~ 70°C) | - | 0.617 lb (279.87 g) |
|
SF23080AT-2082HSL.GNFAN AXIAL 80X25.5MM 220/240VAC |
1,909 |
|
Datasheet |
SF | Bulk | Active | 240VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 25.50mm | Tubeaxial | - | 33.0dB(A) | 13.50W | 2750 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.573 lb (260.00 g) |
|

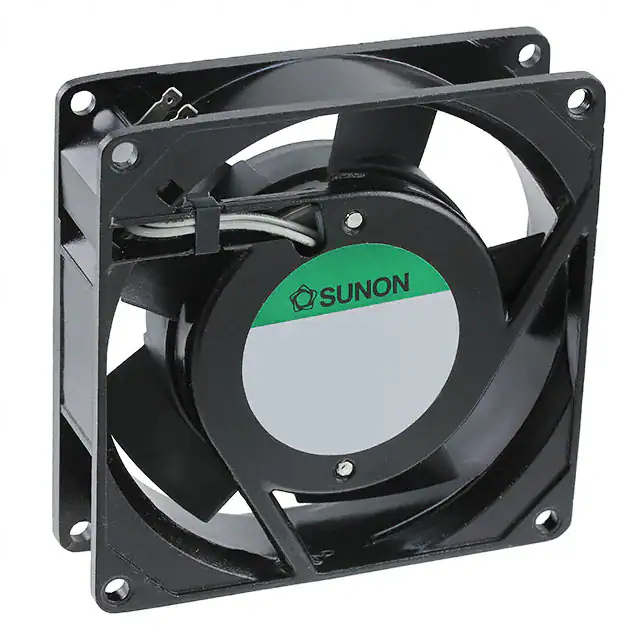

SF23092A-2092HST.GNFAN AXIAL 91.5X25.5MM 220/240VAC |
907 |
|
Datasheet |
SF | Bulk | Active | 240VAC | Square - 91.5mm L x 91.5mm H | 36.0 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 25.50mm | Tubeaxial | - | 39.0dB(A) | 14.00W | 2750 RPM | CE, CUR, TUV, UL | 2 Terminals | - | - | 0.617 lb (280.00 g) |
|
|
SP101AT-1122HST.GNFAN AXIAL 119X25.5MM 115VAC TERM |
2,462 |
|
Datasheet |
SP | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 78.0 CFM (2.18m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | 25.50mm | Tubeaxial | - | 46.0dB(A) | 18.00W | 2300 RPM | CE, CUR, TUV, UL | 2 Terminals | - | - | 0.727 lb (329.76 g) |
|

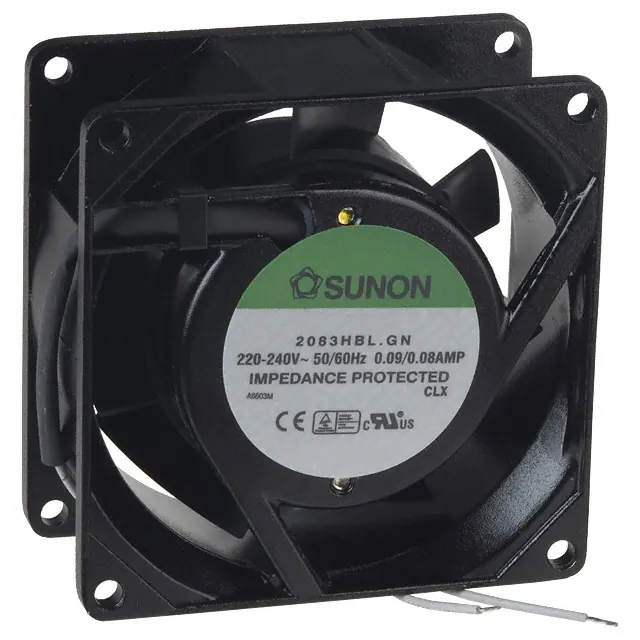

SF23080A-2083HSL.GNFAN AXIAL 80X38MM 220/240VAC |
186 |
|
Datasheet |
SF | Bulk | Active | 240VAC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 38.00mm | Tubeaxial | - | 35.0dB(A) | 16.00W | 2750 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.75 lb (340.19 g) |
|

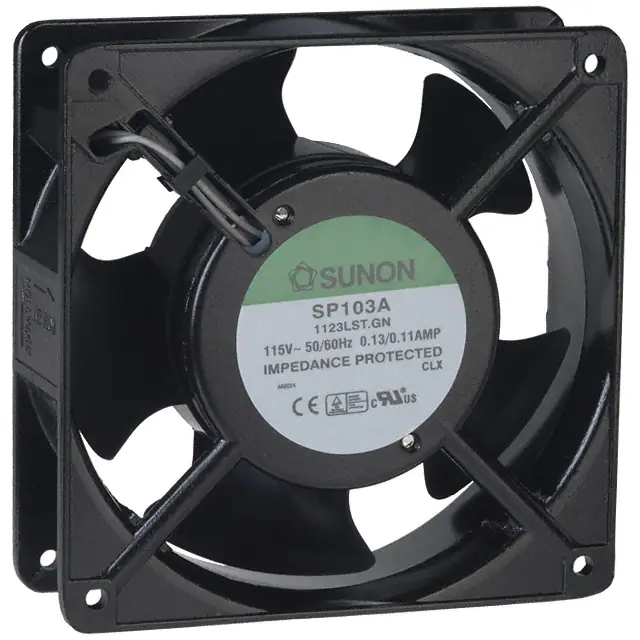

SP103A-1123LST.GNFAN AXIAL 120X38MM 115VAC TERM |
1,096 |
|
Datasheet |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | 38.00mm | Tubeaxial | - | 36.0dB(A) | 11.00W | 2000 RPM | CE, CUR, TUV, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.2 lbs (550 g) |
|
|
SF11580AT-1082HSL.GNFAN AXIAL 80X25.5MM 115VAC WIRE |
2,545 |
|
Datasheet |
SF | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | 25.50mm | Tubeaxial | - | 33.0dB(A) | 11.00W | 2750 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.573 lb (260.00 g) |
|
OA938AP-11-1WBFAN AXIAL 92X38.5MM 115VAC WIRE |
117 |
|
Datasheet |
OA938 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 38.50mm | Tubeaxial | - | 32.0dB | 9.00W | 3100 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | 0.992 lb (449.96 g) |
|
OA825AP-11/22-1WBFAN AXIAL 80X27MM 115/230VAC |
200 |
|
Datasheet |
OA825 | Box | Active | 115/230VAC | Square - 80mm L x 80mm H | 25.0 CFM (0.700m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 27.00mm | Tubeaxial | Dual Voltage | 28.0dB | 9.00W | 3000 RPM | - | 4 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|
OA119AP-22-1TBFAN AXIAL 127X38.5MM 230VAC TERM |
176 |
|
Datasheet |
OA119 | Box | Active | 230VAC | Square - 127mm L x 127mm H | 130.0 CFM (3.64m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 38.50mm | Tubeaxial | - | 46.0dB | 14.00W | 2750 RPM | cURus, TUV | 2 Terminals | -4 ~ 176°F (-20 ~ 80°C) | - | 1.3 lbs (589.7 g) |
|
OA109AP-11/22-1WBFAN AXIAL 120X38MM 115/230VAC |
517 |
|
Datasheet |
OA109 | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 38.00mm | Tubeaxial | Dual Voltage | 42.0dB | 15.00W | 3000 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|
FMA1-12038WBJW12-AEC FAN, 120X120X38MM, 2-BALL BEA |
1,220 |
|
Datasheet |
FMA1-12038-A | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 137.6 CFM (3.85m³/min) | 0.445 in H2O (110.8 Pa) | Ball | 38.00mm | Tubeaxial | Electronic Commutation (EC) | 51.5dB(A) | 15.00W | 3500 RPM | CE, cURus | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP54 - Dust Protected, Water Resistant | - |
