AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2E220-AA40-61AC BACKWARD-CURVED MOTORIZED IMP |
2,855 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R2E120-AR77-24AC BACKWARD-CURVED MOTORIZED IMP |
3,152 |
|
Datasheet |
R2E120 | Bulk | Active | 230VAC | Round - 142mm Dia | - | - | Ball | 83.00mm | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 90.0W | 3000 RPM | CSA, CE, UL | 4 Wire Leads | -13 ~ 140°F (-25 ~ 60°C) | IP44 | - |
|
|
W2S130-BM03-11AC AXIAL FAN |
2,197 |
|
Datasheet |
W2S130 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 256.2 CFM (7.17m³/min) | - | Ball | 55.00mm | Tubeaxial | Thermal Overload Protection (TOP) | - | 46.00W | 3050 RPM | CE | 2 Wire Leads | -13 ~ 158°F (-25 ~ 70°C) | IP54 - Dust Protected, Water Resistant | - |
|

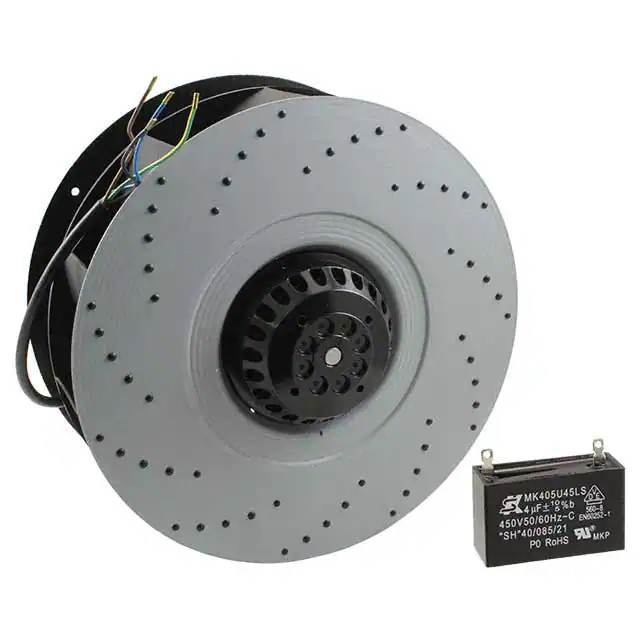

UF250APA23-H1C2FIMPELLER 251X98MM 230VAC RING |
4,531 |
|
Datasheet |
UF250APA-F | Bulk | Active | 230VAC | Round - 259mm Dia | 681.0 CFM (19.07m³/min) | 3.100 in H2O (772.2 Pa) | Ball | 131.0mm | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 72.0dB(A) | 240W | 2700 RPM | CE, cUL, TUV, UL | 4 Wire Leads | -40 ~ 122°F (-40 ~ 50°C) | - | 7.2 lbs (3.3 kg) |
|
|
W2S130-AB25-10FAN AXIAL |
3,062 |
|
Datasheet |
W2S130 | Bulk | Active | - | - | - | - | Ball | - | - | - | - | - | - | - | - | - | - | - |
|
|
UF250BMB23-H1C2AFAN HD AXIAL 250X80MM 230VAC |
4,718 |
|
Datasheet |
UF250BMB-H1 | Bulk | Active | 230VAC | Square - 280mm L x 280mm H | 1130.0 CFM (31.64m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 80.00mm | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 70.0dB(A) | 158W | 2700 RPM | CE, cUL, TUV, UL | 2 Terminals | -4 ~ 158°F (-20 ~ 70°C) | - | 6.1 lbs (2.8 kg) |
|
W2E200-CI86-70FAN AXIAL 280X80MM 115VAC WIRE |
1,403 |
|
Datasheet |
W2E200A | Bulk | Obsolete | 115VAC | Round - 280mm Dia | 600.0 CFM (16.80m³/min) | - | Ball | 80.00mm | Tubeaxial | - | 62.0dB(A) | 77.0W | - | CSA, UL, VDE | 2 Wire Leads | - | - | 3.1 lbs (1.4 kg) |
|

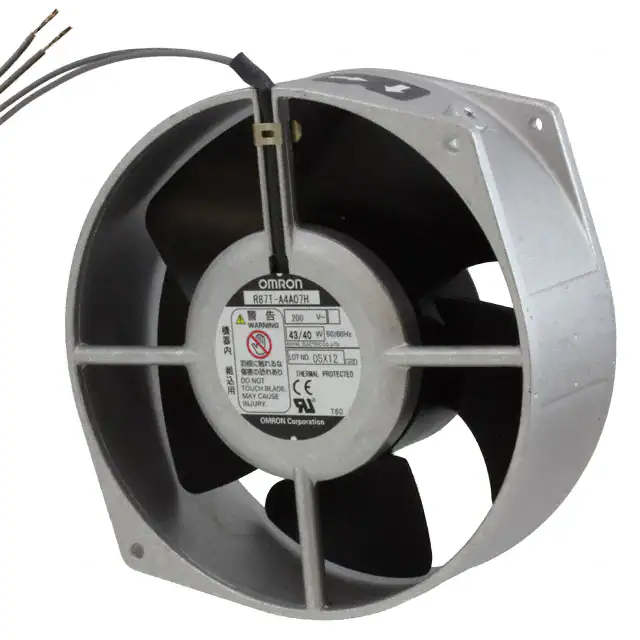

R87T-A6A05HFAN AXIAL 151X38MM 230VAC WIRE |
3,861 |
|
Datasheet |
R87T | Bulk | Active | 230VAC | Round - 151mm Dia | 203.4 CFM (5.70m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 38.00mm | Tubeaxial | - | 58.0dB | 48.00W | 3100 RPM | CSA, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
|
R2E190-RA26-46MOTORIZED IMPELLER |
2,099 |
|
Datasheet |
R2E190 | Bulk | Active | 230VAC | Round - 190mm Dia | - | - | Ball | 68.50mm | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 80.0W | 2580 RPM | CCC, CE, CSA, UL | 3 Position Rectangular Connector | -13 ~ 122°F (-25 ~ 50°C) | IP44 | - |
|
|
R2E180-CB28-09AC BACKWARD-CURVED MOTORIZED IMP |
1,912 |
|
Datasheet |
R2E180 | Bulk | Active | 230VAC | Round - 180mm Dia | 279.8 CFM (7.83m³/min) | - | Ball | 54.50mm | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | - | 75.0W | 2800 RPM | CE | 4 Wire Leads | -40 ~ 140°F (-40 ~ 60°C) | IP44 | - |
|
|
R2E175-AO79-14MOTORIZED IMPELLER |
2,264 |
|
Datasheet |
R2E175 | Bulk | Active | 115VAC | Round - 175mm Dia | - | - | Ball | 69.50mm | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 75.0W | 2500 RPM | CE, CSA, UL | 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals | -13 ~ 158°F (-25 ~ 70°C) | IP44 | - |
|
|
GTM019FUG09R-VBLOWER ROUND 190MM X 69MM, W/ IN |
4,585 |
|
Datasheet |
GTM | Bulk | Active | 230VAC | Square - 225mm L x 225mm H | 587.0 CFM (16.44m³/min) | 3.966 in H2O (988.0 Pa) | Ball | 99.80mm | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 76.5dB(A) | 172W | 4150 RPM | cUL, TUV, UL | 3 Wire Leads with Ferrules, 4 Wire Leads with Ferrules | -13 ~ 140°F (-25 ~ 60°C) | IP54 - Dust Protected, Water Resistant | - |
36-70.jpg)
|
W4E250-CI36-70FAN AXIAL 320X85MM 115VAC WIRE |
3,132 |
|
Datasheet |
W2E250A | Bulk | Obsolete | 115VAC | Round - 320mm Dia | 670.0 CFM (18.76m³/min) | - | Ball | 85.00mm | Tubeaxial | - | 58.0dB(A) | 48.00W | - | CSA, UL, VDE | 2 Wire Leads | - | - | 3 lbs (1.4 kg) |
|
|
W2S130-AB03-16AC AXIAL FAN |
4,906 |
|
Datasheet |
W2S130 | Bulk | Active | 230VAC | Round - 149mm Dia | 230.0 CFM (6.44m³/min) | - | Ball | 55.00mm | Tubeaxial | Thermal Overload Protection (TOP) | - | 39W | 3250 RPM | CE | 3 Wire Leads | -13 ~ 140°F (-25 ~ 60°C) | IP54 - Dust Protected, Water Resistant | - |
|
OA225LFGS221TFAN AXIAL 317X125.5MM 230VAC |
2,135 |
|
Datasheet |
OA225LFGS | Box | Active | 230VAC | Square - 317mm L x 317mm H | 600.0 CFM (16.80m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 125.5mm | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 59.0dB | 80.0W | 2800 RPM | cURus, TUV | Terminal Block | 104 ~ 158°F (40 ~ 70°C) | - | - |
|
W6E315-CP20-71FAN AXIAL 397X74MM 115VAC WIRE |
2,959 |
|
Datasheet |
W4E315A | - | Obsolete | 115VAC | Round - 397mm Dia | 1135.0 CFM (31.78m³/min) | - | Ball | 74.00mm | Tubeaxial | - | 53.0dB(A) | 68.0W | - | CSA, UL, VDE | 2 Wire Leads | - | - | 5.3 lbs (2.4 kg) |
|
|
OA225LFGS111TFAN AXIAL 317X125.5MM 115VAC |
4,945 |
|
Datasheet |
OA225LFGS | Box | Active | 115VAC | Square - 317mm L x 317mm H | 600.0 CFM (16.80m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 125.5mm | Tubeaxial | Capacitor, Kit, Thermal Overload Protector (TOP) | 59.0dB | 72.0W | 2800 RPM | cURus, TUV | Terminal Block | 104 ~ 158°F (40 ~ 70°C) | - | - |
|
|
W1G250-BB21-01FAN AXIAL |
3,390 |
|
Datasheet |
W1G250 | Bulk | Active | 115VAC | Round - 315mm Dia | - | 0.160 in H2O (40.0 Pa) | Ball | 92.00mm | Tubeaxial | Thermal Overload Protector (TOP) | - | 32.00W | 1200 RPM | CE, CSA, EAC, UL, VDE | 3 Wire Leads with Splice Terminals | -22 ~ 122°F (-30 ~ 50°C) | IP55 - Dust Protected, Water Resistant | - |
|
|
S1G300-CA23-02DC AXIAL FAN |
3,075 |
|
Datasheet |
S1G300 | Bulk | Active | 115VAC | Round - 377mm Dia | - | 0.141 in H2O (35.1 Pa) | Ball | 88.00mm | Tubeaxial | Thermal Overload Protection (TOP) | - | 35W | 1250 RPM | CE, CSA, EAC, UL, VDE | 3 Wire Leads | -22 ~ 122°F (-30 ~ 50°C) | IP55 - Dust Protected, Water Resistant | - |
|
|
S1G300-CA19-02DC AXIAL FAN |
4,204 |
|
Datasheet |
S1G300 | Bulk | Active | 230VAC | Round - 377mm Dia | - | 0.141 in H2O (35.1 Pa) | Ball | 88.00mm | Tubeaxial | Thermal Overload Protection (TOP) | - | 35W | 1250 RPM | CCC, CSA, CE, EAC, VDE, UL | 3 Wire Leads | -22 ~ 122°F (-30 ~ 50°C) | IP55 - Dust Protected, Water Resistant | - |
