| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THB1448AEFAN AXIAL 139.7X38MM 48VDC WIRE |
2,624 |
|
Datasheet |
THB | Box | Active | 48VDC | Square - 139.7mm L x 139.7mm H | 325.9 CFM (9.13m³/min) | 1.650 in H2O (411.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.8dB(A) | 52.8 W | 6100 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.3 lbs (600.0 g) |
|
9WL0912P4H001FAN AXIAL 92X25MM 12VDC WIRE |
3,954 |
|
Datasheet |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 1.8 W | 3150 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.375 lb (170.1 g) |
|
|
9WL0924P4H001FAN AXIAL 92X25MM 24VDC WIRE |
2,898 |
|
Datasheet |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 1.68 W | 3150 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.375 lb (170.1 g) |
|
|
19040451AFAN IMP 175X53MM DD692148K1A-E2 |
1,631 |
|
Datasheet |
Diplomat | Bulk | Active | 48VDC | Round - 175mm Dia | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | 53.30mm | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 67.2dB(A) | 31.2 W | 3000 RPM | CE, cUR, UL | 3 Wire Leads | -40 ~ 167°F (-40 ~ 75°C) | - | 2.4 lbs (1.1 kg) |
|
RV40-18/12LFAN BLOWER CF 105X58.85MM 12VDC |
2,459 |
|
Datasheet |
RV40 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 105mm L x 77.3mm H | 10.6 CFM (0.297m³/min) | - | Ball | 58.85mm | Blower, Centrifugal | Locked Rotor Protection, Speed Sensor (Tach) | - | 2 W | 3900 RPM | CE | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9WL0612H400260X25MM 12V; SPLASH & DUST PROOF |
2,402 |
|
Datasheet |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|
|
REF100-11/12FAN IMP MTRZD 100X24.9MM 12VDC |
3,633 |
|
Datasheet |
REF100 | Bulk | Active | 12VDC | Round - 100mm Dia | 50.6 CFM (1.42m³/min) | - | Ball | 24.90mm | Motorized Impellers | Locked Rotor Protection | - | 7.5 W | 5400 RPM | CE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP54 - Dust Protected, Water Resistant | - |
|
|
5214N/2HHFAN AXIAL 127X38MM 24VDC WIRE |
1,959 |
|
Datasheet |
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 203.0 CFM (5.68m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 17.5 W | 4900 RPM | - | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.684 lb (310.26 g) |
|
|
5218N/2HHDC TUBEAXIAL FAN |
1,896 |
|
Datasheet |
5200N | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 200.3 CFM (5.61m³/min) | 0.863 in H2O (215.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.0dB(A) | 18 W | 4900 RPM | CCC, CSA, CE, EAC, VDE, UL | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
9WL0624H400160X25MM 24V; SPLASH & DUST PROOF |
2,606 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | cURus, TUV | 3 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|
|
9WL0824P4G001FAN AXIAL 80X25MM 24VDC WIRE |
2,343 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 54.4 CFM (1.52m³/min) | 0.393 in H2O (98.0 Pa) | Ball | 25.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 43.0dB(A) | 3.36 W | 5500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.331 lb (150.14 g) |
|
|
9RA1412M1D001140X38MM 12VDC LOW NOISE LCKRTRS |
2,898 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424M1D0011140X38MM 24VDC LOW NOISE RBLS LC |
2,459 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424H1D0011140X38MM 24VDC LOW NOISE RBLS LC |
2,603 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424H1D001140X38MM 24VDC LOW NOISE LCKRTRS |
4,638 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424M1D001140X38MM 24VDC LOW NOISE LCKRTRS |
2,382 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412M1D0011140X38MM 12VDC LOW NOISE RBLS LC |
4,997 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412H1D0011140X38MM 12VDC LOW NOISE RBLS LC |
4,838 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412H1D001140X38MM 12VDC LOW NOISE LCKRTRS |
4,202 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

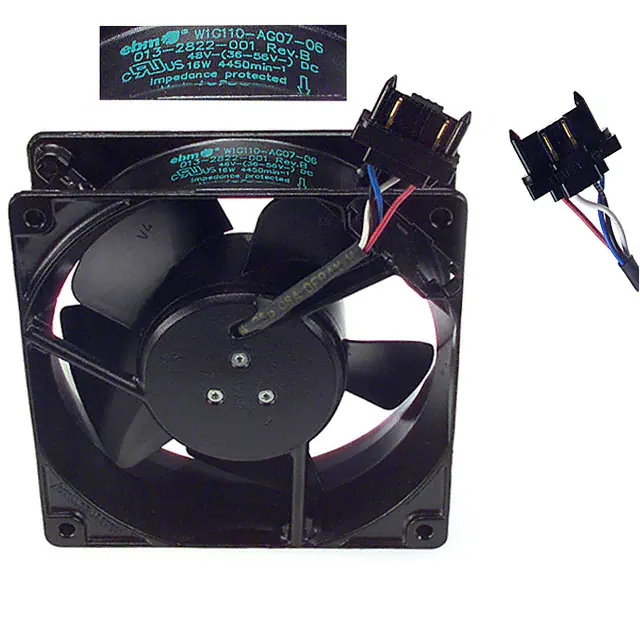

W1G110-AG07-06FAN AXIAL 119X38MM 48VDC WIRE |
1,497 |
|
Datasheet |
W1G110 | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 157.0 CFM (4.40m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 63.0dB(A) | 16 W | - | - | 2 Wire Leads | - | - | - |
