| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3212JH3FAN AXIAL 92X38MM 12VDC WIRE |
3,328 |
|
Datasheet |
3200J, S-Force | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 139.6 CFM (3.91m³/min) | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 31 W | 11000 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
MSI1380H24B1+6-BBRFAN IMP MTRZD 133X80.5MM 24VDC |
4,268 |
|
Datasheet |
MSI1380 | Box | Active | 24VDC | Round - 133mm Dia | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | 80.50mm | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 1.7 lbs (771.1 g) |
|
|
MSI1380H48B1+6-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
2,356 |
|
Datasheet |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | 80.50mm | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 1.7 lbs (771.1 g) |
|
|
3212J/2H3FAN AXIAL 92X38MM 12VDC WIRE |
1,978 |
|
Datasheet |
3200J, S-Force | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 86.0 CFM (2.41m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 69.0dB(A) | 9 W | 6800 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
RER120-28/18/2TDPFAN IMP MTRZD 120X25MM 48VDC |
1,819 |
|
Datasheet |
RER120DC | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
_Series.JPG)
|
6248NFAN AXL 171.5X50.8MM 48VDC TERM |
2,165 |
|
Datasheet |
6200N | Box | Obsolete | 48VDC | Round - 171.5mm Dia | 241.3 CFM (6.76m³/min) | - | Ball | 50.80mm | Tubeaxial | - | 55.0dB(A) | 17 W | 3400 RPM | CE, CSA, UL, VDE | 2 Terminals | 14 ~ 162°F (-10 ~ 72°C) | - | 1.8 lbs (816.5 g) |
|
|
9WE5724K502FAN AXIAL 172X51MM 24VDC WIRE |
4,367 |
|
Datasheet |
San Ace 172W | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Protection | 60.0dB(A) | 31.2 W | 4100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | IP68 - Dust Tight, Waterproof | 1.9 lbs (861.8 g) |
|
|
9WE1724K502FAN AXIAL 172X51MM 24VDC WIRE |
2,342 |
|
Datasheet |
San Ace 172W | Box | Active | 24VDC | Round - 172mm Dia | 300.1 CFM (8.40m³/min) | 0.970 in H2O (241.6 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Protection | 55.0dB(A) | 31.2 W | 4100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | IP68 - Dust Tight, Waterproof | 1.9 lbs (860.0 g) |
|
|
9WL0824J400180X25MM 24V; SPLASH & DUST PROOF |
1,611 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | cURus, TUV | 3 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|
|
5212N/12HHI-205DC TUBEAXIAL FAN |
4,026 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7218NFAN AXIAL 150X55MM 48VDC WIRE |
2,300 |
|
Datasheet |
7200N | Bulk | Active | 48VDC | Round - 150mm Dia | 212.0 CFM (5.94m³/min) | - | Ball | 55.00mm | Tubeaxial | - | 53.0dB(A) | 12 W | 3050 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -13 ~ 162°F (-25 ~ 72°C) | - | 1.6 lbs (725.7 g) |
|
ODB17567-24HB10AFAN IMP MTRZD 175X67MM 24VDC |
2,420 |
|
Datasheet |
- | Bulk | Active | 24VDC | Round - 175mm Dia | 298.0 CFM (8.34m³/min) | 1.380 in H2O (343.7 Pa) | Ball | 67.00mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 64.0dB | 50.4 W | 3000 RPM | CE, cURus, TUV, UR | 4 Wire Leads | 14 ~ 149°F (-10 ~ 65°C) | - | 1.9 lbs (900.0 g) |
|

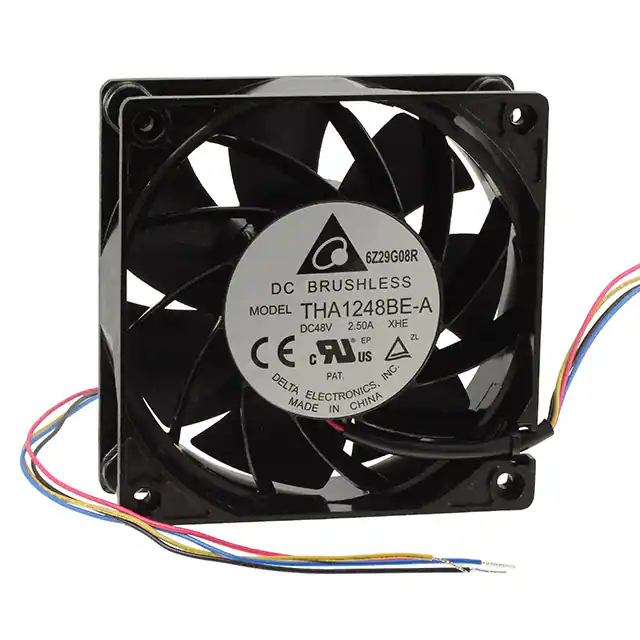

THA1248BE-AXHEFAN AXIAL 120X38MM 48VDC WIRE |
4,202 |
|
Datasheet |
THA | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 302.8 CFM (8.48m³/min) | 3.394 in H2O (845.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.5dB(A) | 80.64 W | 9000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.1 lbs (500.0 g) |
|
|
9CR1212G001FAN AXIAL DUAL 120X76MM 12VDC |
4,752 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 300.0 CFM (8.40m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 76.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 70.0dB(A) | 86.4 W | 6200 Front, 3800 Rear | cURus, TUV | 3 Wire Leads per Fan | -4 ~ 140°F (-20 ~ 60°C) | - | 1.5 lbs (670.0 g) |
|
|
109E1312S102FAN AXIAL 127X38MM 12VDC WIRE |
2,153 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 49.0dB(A) | 14.4 W | 3450 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
|
109E1324S102FAN AXIAL 127X38MM 24VDC WIRE |
3,511 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 38.00mm | Tubeaxial | - | 49.0dB(A) | 12.7 W | 3450 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
|
109E1312A1D01FAN AXIAL 127X38MM 12VDC WIRE |
2,095 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 16.8 W | 3850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
|
109E1312S1D01FAN AXIAL 127X38MM 12VDC WIRE |
2,943 |
|
Datasheet |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 14.4 W | 3450 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
|
109E1324A1D01FAN AXIAL 127X38MM 24VDC WIRE |
3,431 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 16.8 W | 3850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
|
109E1324S1D01FAN AXIAL 127X38MM 24VDC WIRE |
3,325 |
|
Datasheet |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12.7 W | 3450 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
