| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0701512H2B-2T0FAN AXIAL 70X15MM 12VDC WIRE |
228 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 33.5 CFM (0.938m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3 W | 4300 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9GA0412G7011FAN AXL 40X15.2MM 12VDC RECT |
134 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 15.20mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 2.04 W | 13100 RPM | - | 3 Position Rectangular Connector | -4 ~ 158°F (-20 ~ 70°C) | - | 0.062 lb (28.12 g) |
|
109P0605H701FAN AXIAL 60X15MM BALL 5VDC WIRE |
1,707 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.3 W | 4100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|
MR4020H24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
264 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 35.1dB(A) | - | 9500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.053 lb (24.04 g) |
|
MR6025M12B3-FSRFAN AXIAL 60X25MM 12VDC |
599 |
|
Datasheet |
MR6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.50mm | Tubeaxial | Auto Restart, Thermistor | 40.0dB(A) | - | 5500 RPM | - | 2 Wire Leads | - | - | - |
|
MB6010M12B-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
999 |
|
Datasheet |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 11.0 CFM (0.308m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 10.20mm | Tubeaxial | Thermal Overload Protector (TOP) | 22.5dB(A) | - | 3200 RPM | cUL, UL | 2 Wire Leads | - | - | 0.059 lb (26.76 g) |
|
AUB0612HB-AFAN AXIAL 60X15MM 12VDC WIRE |
545 |
|
Datasheet |
AUB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.3 CFM (0.428m³/min) | 0.087 in H2O (21.7 Pa) | Superflo | 15.00mm | Tubeaxial | Locked Rotor Protection | 23.5dB(A) | 720 mW | 3000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.085 lb (38.56 g) |
|
CBM-979433B-230-507-20FAN BLOWER 97.68X32.7MM 24VDC |
295 |
|
Datasheet |
CBM-97B-2 | Box | Active | 24VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 20.5 CFM (0.574m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 32.70mm | Blower | Auto Restart, Speed Sensor (Tach) | 50.7dB(A) | 8.4 W | 3000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

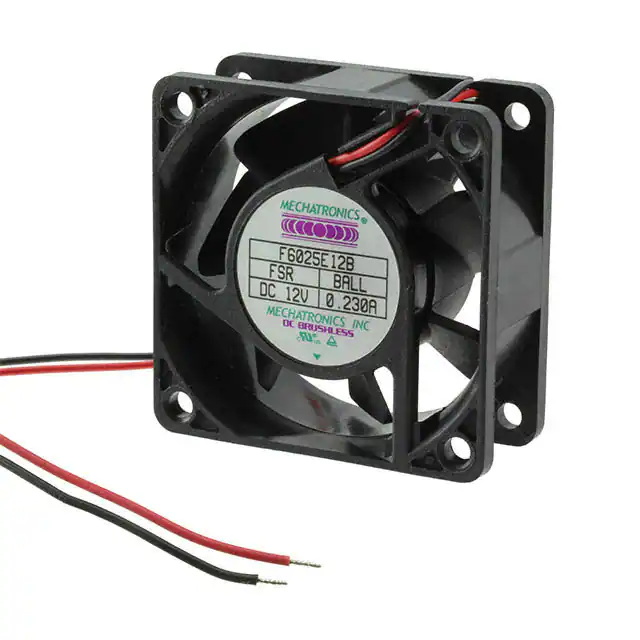

F6025E12B-FSRFAN AXIAL 60X25MM 12VDC WIRE |
138 |
|
Datasheet |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 36.0dB(A) | - | 4600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.139 lb (63.05 g) |
|
109P0512A701FAN AXIAL 52X15MM 12VDC WIRE |
930 |
|
Datasheet |
San Ace 52 | Box | Active | 12VDC | Square - 52mm L x 52mm H | 13.2 CFM (0.370m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 2.52 W | 6800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.122 lb (55.34 g) |
|

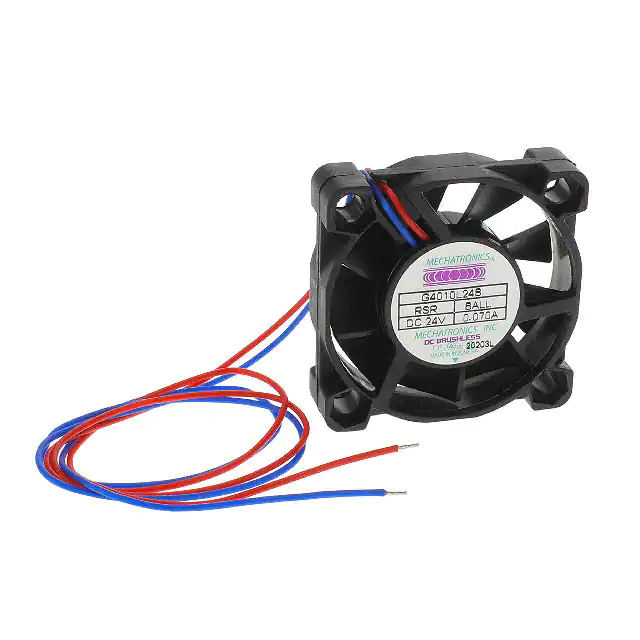

G4010L24B-RSRFAN AXIAL 40X10.3MM 24VDC WIRE |
230 |
|
Datasheet |
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 10.30mm | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.026 lb (11.79 g) |
|
|
BFB0312HA-CFAN BLOWER 30X10MM 12VDC WIRE |
1,272 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 29.0dB(A) | 840 mW | 7500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.023 lb (10.43 g) |
|
|
BFB03512MA-CFAN BLOWER 35X10MM 12VDC WIRE |
530 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 10.00mm | Blower | Locked Rotor Protection | 26.0dB(A) | 720 mW | 6500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.025 lb (11.34 g) |
|

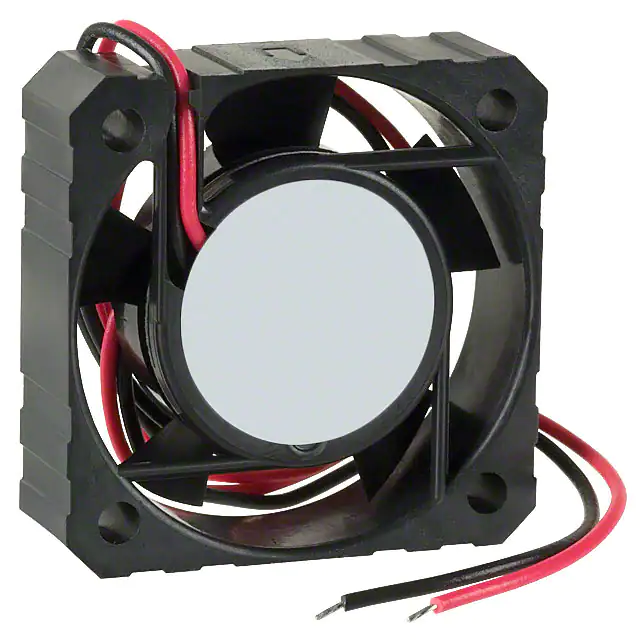

F412R-05MBFAN AXIAL 41X12.2MM 5VDC WIRE |
170 |
|
Datasheet |
F412R | Bulk | Active | 5VDC | Square - 41mm L x 41mm H | 5.3 CFM (0.148m³/min) | 0.102 in H2O (25.5 Pa) | 1 Ball/1 Sleeve | 12.20mm | Tubeaxial | - | 23.0dB(A) | 500 mW | 5400 RPM | - | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.044 lb (19.96 g) |
|
|
04010SA-12L-AAD-0FAN AXIAL 40X10MM 12VDC WIRE |
128 |
|
Datasheet |
04010SA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 10.00mm | Tubeaxial | Auto Restart | 21.5dB | 480 mW | 5500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
AFB02505HA-CF00FAN AXIAL 25X10MM BALL 5VDC WIRE |
651 |
|
Datasheet |
AFB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | 0.176 in H2O (43.8 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.5dB(A) | 600 mW | 10000 RPM | cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
MR8032E12B-FSRFAN AXIAL 80X32MM 12VDC WIRE |
664 |
|
Datasheet |
MR8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 79.0 CFM (2.21m³/min) | 0.890 in H2O (221.7 Pa) | Ball | 32.00mm | Tubeaxial | Auto Restart | 50.4dB(A) | - | 6500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.32 lb (145.15 g) |
|
CFM-A225C-020-350-20FAN AXIAL 120X25.4MM 5VDC WIRE |
110 |
|
Datasheet |
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | 25.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.8dB(A) | 2.85 W | 2000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

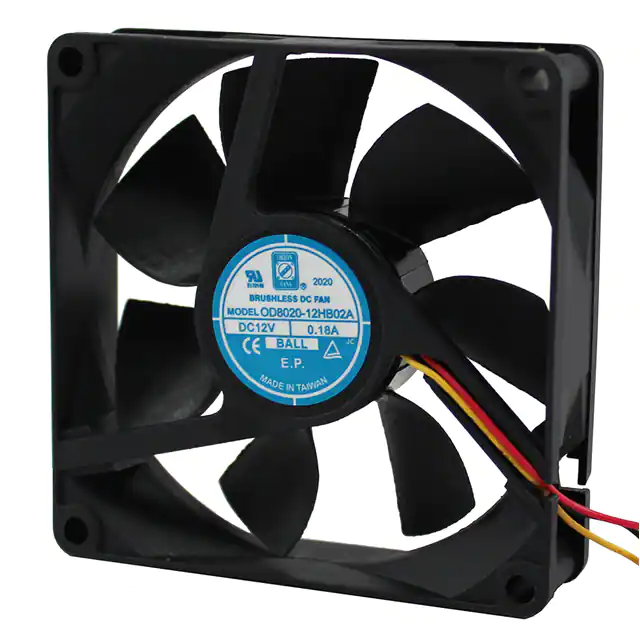

OD8020-12HB02AFAN AXIAL 80X20MM 12VDC WIRE |
864 |
|
Datasheet |
OD8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 20.00mm | Tubeaxial | Locked Rotor Sensor | - | - | - | - | 3 Wire Leads | - | - | - |
|

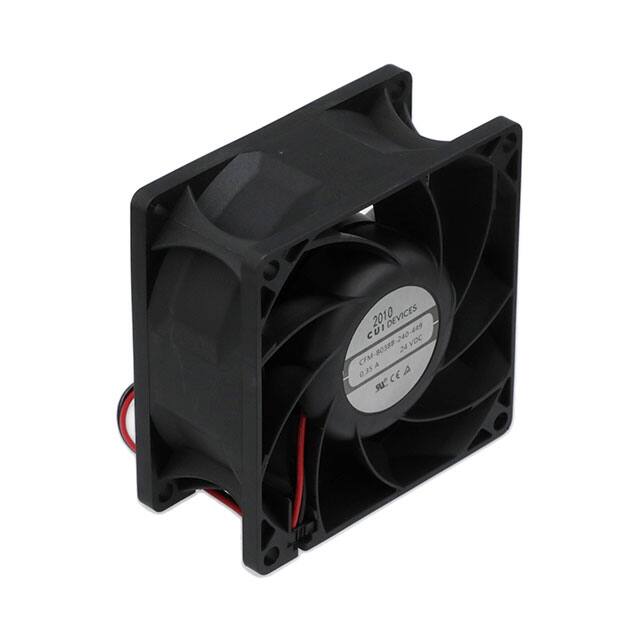

CFM-8038B-240-449FAN AXIAL 80X37.6MM 24VDC WIRE |
114 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 37.60mm | Tubeaxial | Auto Restart | 45.0dB(A) | 5.04 W | 4000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
