| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA60251V4-000U-999FAN AXIAL 60X25MM 12VDC WIRE |
4,676 |
|
Datasheet |
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 13.8 CFM (0.386m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | - | 13.8dB(A) | 700 mW | 2500 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.091 lb (41.28 g) |
|
HA60151V4-000U-999FAN AXIAL 60X15MM 12VDC WIRE |
2,643 |
|
Datasheet |
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.8 CFM (0.302m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | 15.00mm | Tubeaxial | - | 14.5dB(A) | 600 mW | 2500 RPM | CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.079 lb (35.83 g) |
|
HA50151V4-000U-999FAN AXIAL 50X15MM 12VDC WIRE |
2,185 |
|
Datasheet |
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 7.7 CFM (0.216m³/min) | 0.060 in H2O (14.9 Pa) | Vapo-Bearing™ | 15.00mm | Tubeaxial | - | 17.0dB(A) | 500 mW | 3200 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.064 lb (29.03 g) |
|
AFB0405MB-R00FAN AXIAL 40X15MM BALL 5VDC WIRE |
1,998 |
|
Datasheet |
AFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.202 in H2O (50.3 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Sensor | 24.5dB(A) | 850 mW | 6000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
PFB0612UHE-T50FFAN AXIAL 60X38MM 12VDC WIRE |
2,434 |
|
Datasheet |
PFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 67.8 CFM (1.90m³/min) | 2.129 in H2O (530.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 61.5dB(A) | 16.8 W | 12000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.287 lb (130.18 g) |
|
MB50151V2-000U-A99FAN AXIAL 50X15MM 12VDC WIRE |
1,179 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 15.00mm | Tubeaxial | Auto Restart | 29.0dB(A) | 650 mW | 4700 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.086 lb (39.01 g) |
|
MB40200V3-000U-A99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
1,590 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | 20.00mm | Tubeaxial | Auto Restart | 18.0dB(A) | 410 mW | 5200 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.066 lb (29.94 g) |
|
MB60252V1-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
3,417 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 33.5dB(A) | 1.68 W | 4500 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.126 lb (57.15 g) |
|
|
MB40202V2-000U-A99FAN AXIAL 40X20MM 24VDC WIRE |
3,315 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | 20.00mm | Tubeaxial | Auto Restart | 21.0dB(A) | 800 mW | 6200 RPM | CUR, TUV, UL | 2 Wire Leads | - | - | 0.068 lb (30.84 g) |
|
ME92251VX-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
1,325 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart | 37.5dB(A) | 2.28 W | 3400 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.227 lb (102.97 g) |
|
|
MB40202V1-000U-A99FAN AXIAL 40X20MM 24VDC WIRE |
3,678 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | 20.00mm | Tubeaxial | Auto Restart | 25.5dB(A) | 1.2 W | 7200 RPM | CE, CUR, TUV, UL | 2 Wire Leads | - | - | 0.068 lb (30.84 g) |
|

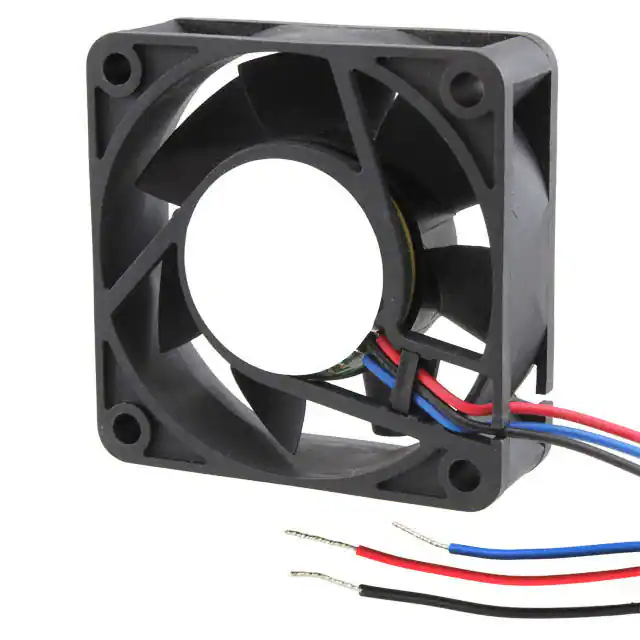

AFB0624HHD-F00FAN AXIAL 60X20MM 24VDC WIRE |
1,416 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.229 in H2O (57.0 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.5dB(A) | 1.68 W | 4400 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
AFB0624VHD-F00FAN AXIAL 60X20MM 24VDC WIRE |
3,047 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.275 in H2O (68.6 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 2.16 W | 4800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
FFB0624EHE-F00FAN AXIAL 60X38MM 24VDC WIRE |
1,988 |
|
Datasheet |
FFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 50.2 CFM (1.41m³/min) | 0.972 in H2O (242.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.5dB(A) | 9.12 W | 8000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.234 lb (106.14 g) |
|
QFR0824SH-DT50FAN AXIAL 80X25.4MM 24VDC WIRE |
3,798 |
|
Datasheet |
QFR | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 54.6 CFM (1.53m³/min) | 0.331 in H2O (82.4 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.2dB(A) | 4.08 W | 4300 RPM | CE, cURus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.195 lb (88.45 g) |
|
PFB0824DHE-DT49FAN AXIAL 80X38MM 24VDC WIRE |
4,027 |
|
Datasheet |
PFB | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 32.4 W | 9000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.452 lb (205.02 g) |
|
EFB0405VHD-R00FAN AXIAL 40X20MM BALL 5VDC WIRE |
3,742 |
|
Datasheet |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Sensor | 32.5dB(A) | 1.6 W | 9000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.073 lb (33.11 g) |
|
4715KL-05T-B40-P00FAN AXIAL 119X38.4MM 24VDC TERM |
1,630 |
|
Datasheet |
11938KA | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 38.40mm | Tubeaxial | - | 46.5dB | 8.4 W | 3200 RPM | CE, CSA, UL, VDE | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 0.573 lb (259.91 g) |
|
1608KL-04W-B60-L00FAN AXIAL 40X20MM 12VDC WIRE |
3,925 |
|
Datasheet |
1608KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 20.00mm | Tubeaxial | - | - | - | 9500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.055 lb (24.95 g) |
|
|
1608KL-05W-B60-L00FAN AXIAL 40X20MM 24VDC WIRE |
1,734 |
|
Datasheet |
1608KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | 20.00mm | Tubeaxial | - | - | - | 4500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.055 lb (24.95 g) |
