| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WS1248M102FAN AXIAL 119X38MM 48VDC WIRE |
2,020 |
|
Datasheet |
San Ace 120WS | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 38.00mm | Tubeaxial | - | 39.0dB(A) | 5.52 W | 2600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | IP54 - Dust Protected, Water Resistant | 0.573 lb (259.91 g) |
|
109L0812S401FAN AXIAL 80X25MM 12VDC WIRE |
2,359 |
|
Datasheet |
San Ace 80L | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 3.12 W | 3400 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.331 lb (150.14 g) |
|
|
109L0824H401FAN AXIAL 80X25MM 24VDC WIRE |
4,739 |
|
Datasheet |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 2.16 W | 3000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.331 lb (150.14 g) |
|

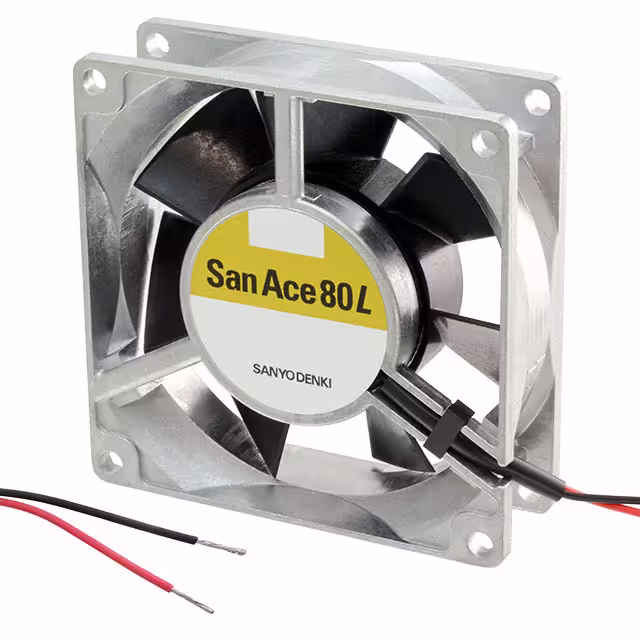

109L0824H402FAN AXIAL 80X25MM 24VDC WIRE |
3,616 |
|
Datasheet |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | 25.00mm | Tubeaxial | - | 32.0dB(A) | 2.16 W | 3000 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.331 lb (150.14 g) |
|
|
109L0824S401FAN AXIAL 80X25MM 24VDC WIRE |
2,863 |
|
Datasheet |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3400 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.331 lb (150.14 g) |
|

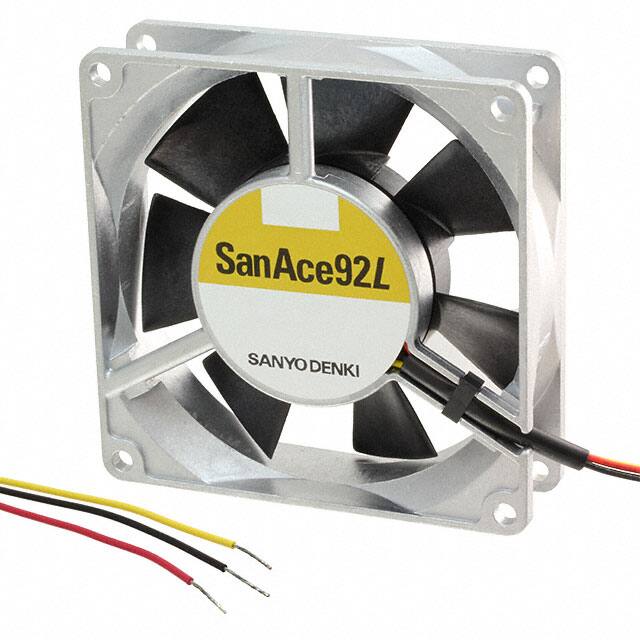

109L0912H401FAN AXIAL 92X25MM 12VDC WIRE |
2,470 |
|
Datasheet |
San Ace 92L | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 2850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|

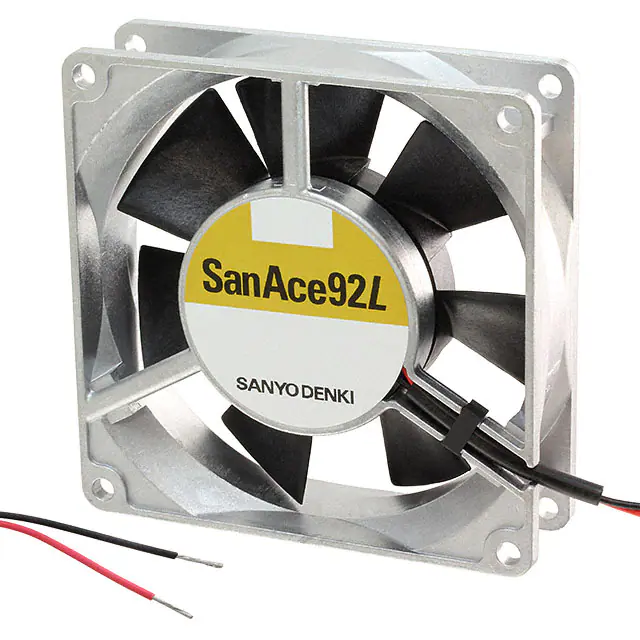

109L0924H402FAN AXIAL 92X25MM 24VDC WIRE |
2,761 |
|
Datasheet |
San Ace 92L | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 25.00mm | Tubeaxial | - | 33.0dB(A) | 2.88 W | 2850 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|

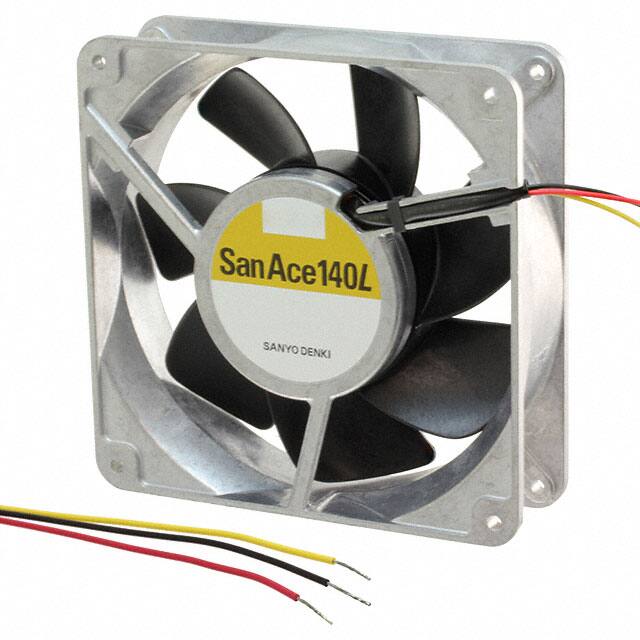

109L1424H101FAN AXIAL 140X38MM 24VDC WIRE |
1,397 |
|
Datasheet |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 159.0 CFM (4.45m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.88 W | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.3 lbs (600.0 g) |
|
109P0524H702FAN AXIAL 52X15MM 24VDC WIRE |
1,700 |
|
Datasheet |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 27.0dB(A) | 1.2 W | 4600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
|
109P0524M702FAN AXIAL 52X15MM 24VDC WIRE |
3,310 |
|
Datasheet |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 7.2 CFM (0.202m³/min) | 0.086 in H2O (21.5 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 960 mW | 3700 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.122 lb (55.34 g) |
|
109P0612B7D01FAN AXIAL 60X15MM 12VDC WIRE |
2,449 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 7.4 CFM (0.207m³/min) | 0.047 in H2O (11.8 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Sensor | 21.0dB(A) | 600 mW | 2200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|
|
109P0612H7D01FAN AXIAL 60X15MM 12VDC WIRE |
1,317 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.08 W | 4100 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|
|
109P0624H702FAN AXIAL 60X15MM 24VDC WIRE |
2,236 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.44 W | 4100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|

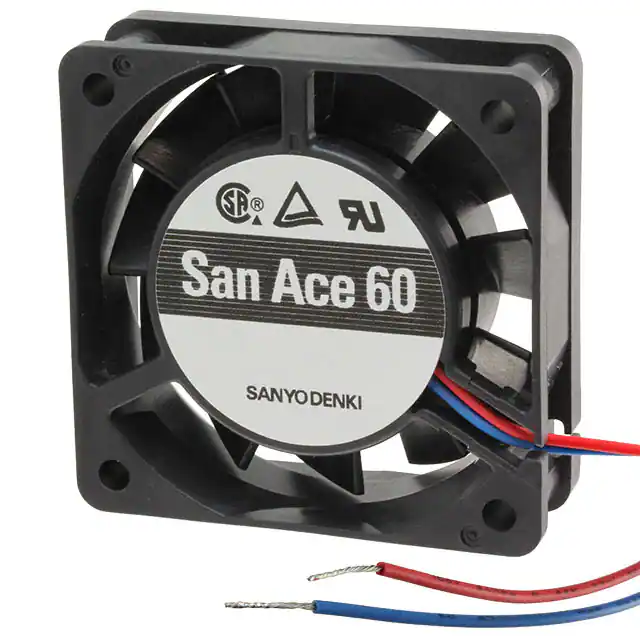

109P0624M602FAN AXIAL 60X20MM 24VDC WIRE |
2,233 |
|
Datasheet |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.076 in H2O (18.9 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 3200 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
109P0812A201FAN AXIAL 80X32MM 12VDC WIRE |
3,455 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 6.72 W | 4600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 131°F (-20 ~ 55°C) | - | 0.331 lb (150.14 g) |
|
109P0812H2011FAN AXIAL 80X32MM 12VDC WIRE |
1,578 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.173 in H2O (43.1 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.92 W | 3150 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.331 lb (150.14 g) |
|
109P0812M701FAN AXIAL 80X15MM 12VDC WIRE |
4,523 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 1.08 W | 2000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.15 lb (68.04 g) |
|

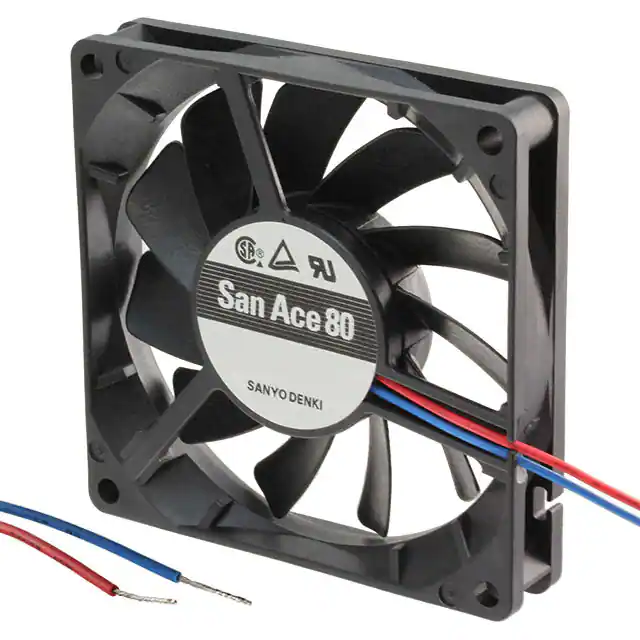

109P0812M702FAN AXIAL 80X15MM 12VDC WIRE |
4,884 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 1.08 W | 2000 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.15 lb (68.04 g) |
|

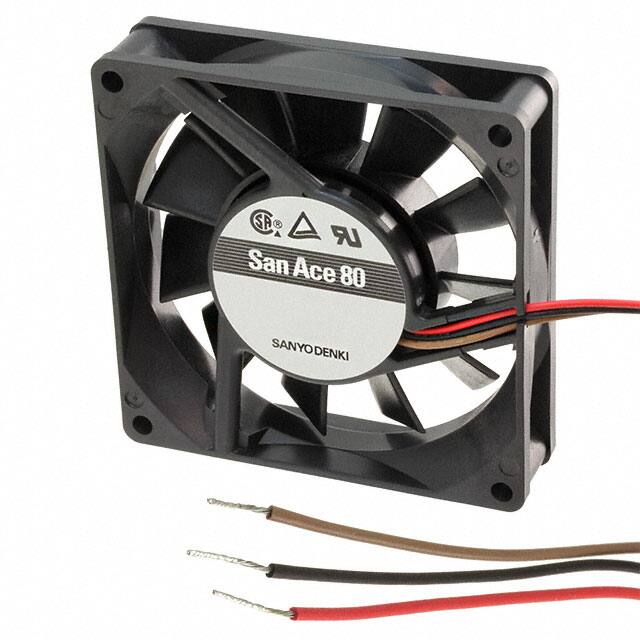

109P0812T6H12FAN AXIAL 80X20MM 12VDC WIRE |
1,851 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 20.00mm | Tubeaxial | Thermistor, External | 31.0dB(A) | 2.16 W | 2900 RPM | CSA, TUV, UR | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
|
109P0824A201FAN AXIAL 80X32MM 24VDC WIRE |
1,604 |
|
Datasheet |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 6.96 W | 4600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.331 lb (150.14 g) |
