DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

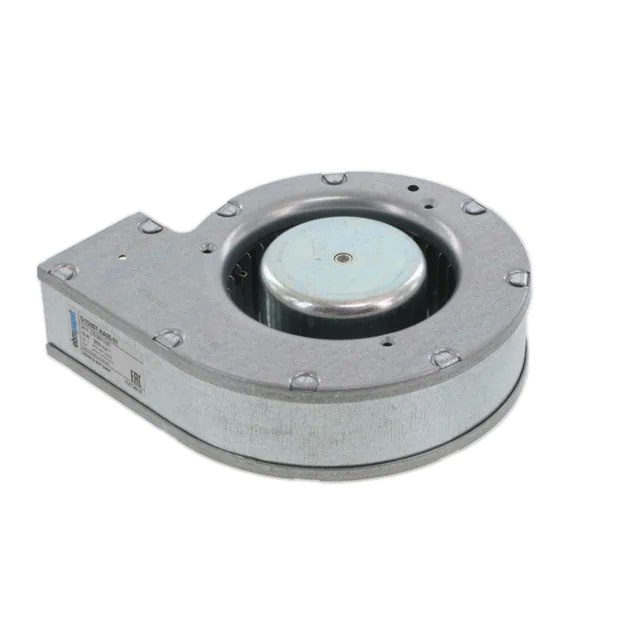

G1G097-AA05-01FAN BLOWER 143X40MM 24VDC WIRE |
2,999 |
|
Datasheet |
G1G097 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 143mm L x 137mm H | - | - | Ball | 40.00mm | Blower | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 16 W | 2650 RPM | EAC | 4 Wire Leads with Splice Terminals | -13 ~ 140°F (-25 ~ 60°C) | IP22 | - |
|
K3G097-AK32-70FAN BLOWER CF 139.5X351MM 13VDC |
2,405 |
|
Datasheet |
K3G097AK | Bulk | Obsolete | 13VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 629.0 CFM (17.61m³/min) | - | Ball | 351.0mm | Blower, Centrifugal (Dual) | Locked Rotor Protection, Thermal Overload Protector (TOP) | 69.0dB(A) | 276 W | 3250 RPM | - | 6 Position Rectangular Connector | - | - | - |
|
K3G097-AK34-43FAN BLOWER CF 139.5X351MM 26VDC |
2,029 |
|
Datasheet |
K3G097AK | Bulk | Obsolete | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 1216.0 CFM (716.22m³/min) | - | Ball | 351.0mm | Blower, Centrifugal (Dual) | Locked Rotor Protection, Thermal Overload Protector (TOP) | 69.0dB(A) | 377 W | 3652 RPM | - | 6 Position Rectangular Connector | - | - | - |
|
K3G097-AK34-65FAN BLOWER CF 139.5X351MM 26VDC |
1,931 |
|
Datasheet |
K3G097AK | Bulk | Obsolete | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 415.2 CFM (11.63m³/min) | - | Ball | 351.0mm | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | - | 394 W | 3830 RPM | EAC | 6 Position Rectangular Connector | -40 ~ 158°F (-40 ~ 70°C) | - | - |
|
|
K3G097-AK68-85FAN BLOWER CF 139.5X351MM 26VDC |
2,570 |
|
Datasheet |
K3G097AK | Bulk | Obsolete | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 441.8 CFM (12.37m³/min) | - | Ball | 351.0mm | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 75.0dB(A) | 690 W | 4600 RPM | EAC | 4 Position Rectangular Connector | -40 ~ 140°F (-40 ~ 60°C) | - | - |
|
|
K3G097-BK34-43FAN BLOWER CF 335.0MM 26VDC |
2,057 |
|
Datasheet |
K3G097AK | Bulk | Obsolete | 26VDC | - | - | - | Ball | 335.0mm | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 69.0dB(A) | 345 W | 3940 RPM | - | - | 158°F (70°C) | - | - |
|
R1G120-AD13-02FAN IMP MTRZD 120X54MM 24VDC |
1,574 |
|
Datasheet |
R1G120 | Bulk | Obsolete | 24VDC | Round - 120mm Dia | - | - | Ball | 54.00mm | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 26 W | 4060 RPM | EAC | 4 Wire Leads with Splice Terminals | -13 ~ 122°F (-25 ~ 50°C) | IP20 | - |
|
|
R1G120-AD13-20FAN IMP MTRZD 120X54MM 24VDC |
4,699 |
|
Datasheet |
R1G120 | Bulk | Obsolete | 24VDC | Round - 120mm Dia | - | - | Ball | 54.00mm | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 26 W | 4060 RPM | - | 4 Wire Leads with Splice Terminals | -13 ~ 122°F (-25 ~ 50°C) | IP44 | - |
|
|
RER1602814N2TDAFAN IMP MTRZD 165.1X50.3MM 24VDC |
1,774 |
|
Datasheet |
RER160NTD | Bulk | Active | 24VDC | Round - 165.1mm Dia | 217.8 CFM (6.10m³/min) | - | Ball | 50.30mm | Motorized Impellers | - | - | 51 W | 4200 RPM | - | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | - |
|
|
RG160-28/18N/2TFAN BLOWER CF 220X56MM 48VDC |
1,776 |
|
Datasheet |
RG160N | Bulk | Active | 48VDC | Square - 220mm L x 220mm H | 123.0 CFM (3.44m³/min) | - | Ball | 56.00mm | Blower, Centrifugal | Locked Rotor Protection, Speed Sensor (Tach) | - | 20 W | 2850 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
RL48-19/18R-016FAN BLOWER CF 75.2X27MM 48VDC |
2,555 |
|
Datasheet |
RL48 | Bulk | Active | 48VDC | Square/Rounded - 75.2mm L x 75.5mm H | - | - | Ball | 27.00mm | Blower, Centrifugal | - | - | - | - | - | - | - | - | - |
|
|
W1G115-AG03-07FAN AXL 127X38MM 24VDC RECT CONN |
2,450 |
|
Datasheet |
W1G115 | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 10 W | 3950 RPM | - | 3 Position Rectangular Connector | -13 ~ 140°F (-25 ~ 60°C) | IP22 | - |
|
|
W1G200-EF01-01FAN AXIAL 250X78.5MM 24VDC WIRE |
3,586 |
|
Datasheet |
W1G200 | Bulk | Active | 24VDC | Round - 250mm Dia | - | 0.220 in H2O (55.0 Pa) | Ball | 78.50mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 60.0dB(A) | 29 W | 2130 RPM | CSA, EAC, UL, VDE | 4 Wire Leads with Splice Terminals | -22 ~ 122°F (-30 ~ 50°C) | IP55 - Dust Protected, Water Resistant | - |
|
|
W3G300-ER38-69FAN AXIAL 340X94MM 27.5VDC |
1,579 |
|
Datasheet |
W2G300 | Bulk | Obsolete | 27.5VDC | Round - 340mm Dia | - | - | Ball | 94.00mm | Tubeaxial | - | 87.0dB(A) | - | - | - | - | - | - | - |
|
|
BFB1248HH-F00FAN BLOWER 120X32MM 48VDC WIRE |
4,136 |
|
Datasheet |
BFB | Box | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 35.3 CFM (0.988m³/min) | 0.984 in H2O (245.1 Pa) | Ball | 32.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 10.56 W | 2800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.508 lb (230.42 g) |
|

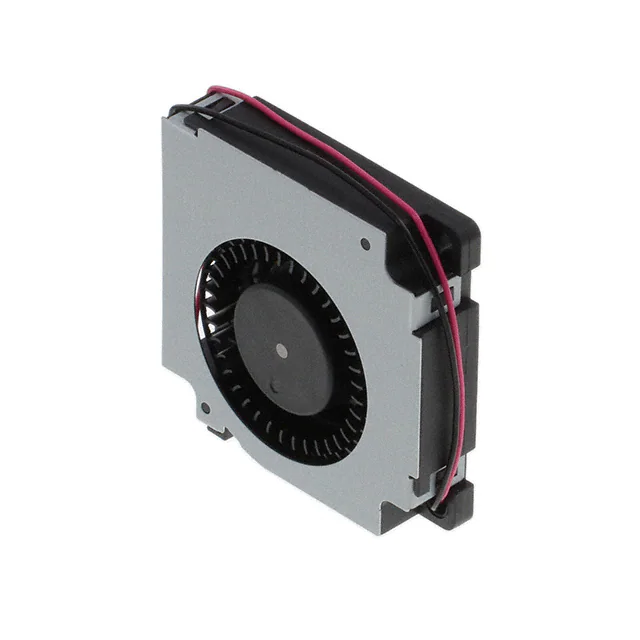

BFB04505HA-CFAN BLOWER 45X10.3MM 5VDC WIRE |
2,946 |
|
Datasheet |
BFB | Box | Obsolete | 5VDC | Square - 45mm L x 45mm H | 3.0 CFM (0.084m³/min) | 0.391 in H2O (97.4 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection | 30.5dB(A) | 800 mW | 5150 RPM | CE, cURus, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.04 lb (18.14 g) |
|
BFB04512LA-CFAN BLOWER 45X10.3MM 12VDC WIRE |
1,320 |
|
Datasheet |
BFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 2.0 CFM (0.056m³/min) | 0.212 in H2O (52.8 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection | 21.5dB(A) | 600 mW | 3900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.04 lb (18.14 g) |
|
BFB04512MA-CFAN BLOWER 45X10.3MM 12VDC WIRE |
4,765 |
|
Datasheet |
BFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 2.6 CFM (0.073m³/min) | 0.279 in H2O (69.5 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection | 27.0dB(A) | 720 mW | 4500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.04 lb (18.14 g) |
|
BFB04512HA-CFAN BLOWER 45X10.3MM 12VDC WIRE |
2,866 |
|
Datasheet |
BFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 3.0 CFM (0.084m³/min) | 0.391 in H2O (97.4 Pa) | Ball | 10.30mm | Blower | Locked Rotor Protection | 30.5dB(A) | 960 mW | 5150 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.04 lb (18.14 g) |
|
BFB0512MA-CR00FAN BLOWER 50X10.3MM 12VDC WIRE |
3,035 |
|
Datasheet |
BFB | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 2.9 CFM (0.081m³/min) | 0.383 in H2O (95.4 Pa) | Ball | 10.30mm | Blower | Locked Rotor Sensor | 28.0dB(A) | 840 mW | 4300 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.05 lb (22.68 g) |
