DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RBH1881B4FAN BLOWER 182X82MM 48VDC WIRE |
1,225 |
|
Datasheet |
hiFLOW | Bulk | Active | 48VDC | Rectangular/Round - 182mm L x 171mm H | 136.8 CFM (3.87m³/min) | 2.510 in H2O (625.2 Pa) | Ball | 82.00mm | Blower | Auto Restart, Polarity Protection, Speed Sensor (Tach), PWM Speed Control | 63.0dB(A) | 52.8 W | 2000 RPM | cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

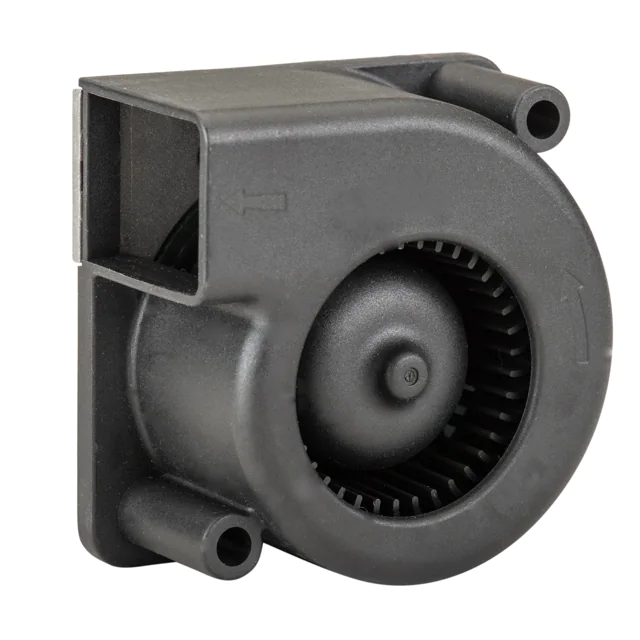

K5331Y12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE |
1,209 |
|
Datasheet |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 16.3 CFM (0.46m³/min) | 1.430 in H2O (356.2 Pa) | Ball | 31.00mm | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 52.5dB(A) | 12.6 W | 12000 RPM | CE, cUL, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

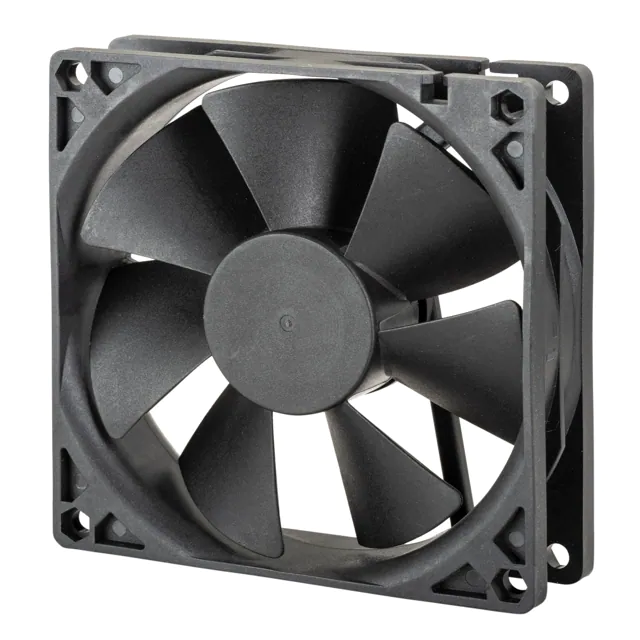

D9225X24BPLB1FAN AXIAL 92X25MM 24VDC WIRE |
1,372 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 66.9 CFM (1.90m³/min) | 0.240 in H2O (59.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 41.2dB(A) | 3.8 W | 3600 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
P1232H12BALB2A-28FAN BLOWER 120X32MM 12VDC WIRE |
2,231 |
|
Datasheet |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 120mm L x 120mm H | 33.0 CFM (0.93m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 32.00mm | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 54.8dB(A) | 11.28 W | 4000 RPM | CE, cUL, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
G1751H24BALB1-7FAN AXIAL 172X51MM 24VDC WIRE |
2,040 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 267.7 CFM (7.58m³/min) | 0.590 in H2O (146.9 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 54.1dB(A) | 17.76 W | 2900 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

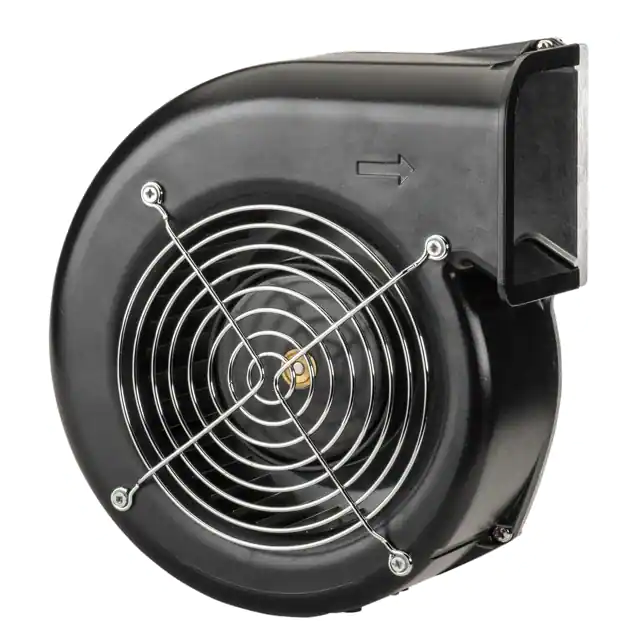

P1970M12BALA2A-38FAN BLOWER 193X72MM 12VDC WIRE |
2,506 |
|
Datasheet |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 193mm L x 177mm H | 106.4 CFM (3.01m³/min) | 1.400 in H2O (348.7 Pa) | Ball | 72.00mm | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 50.7dB(A) | 28.8 W | 1500 RPM | CE, cUL, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
K5331X12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE |
1,413 |
|
Datasheet |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 13.6 CFM (0.039m³/min) | 0.990 in H2O (246.6 Pa) | Ball | 31.00mm | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 47.7dB(A) | 7.8 W | 10000 RPM | CE, cUL, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
G1751Y24BALB1W-7FAN AXIAL 172X51MM 24VDC WIRE |
2,548 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 323.0 CFM (9.15m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, IP56, Locked Rotor Protection, Polarity Protection | 58.9dB(A) | 33.6 W | 3500 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

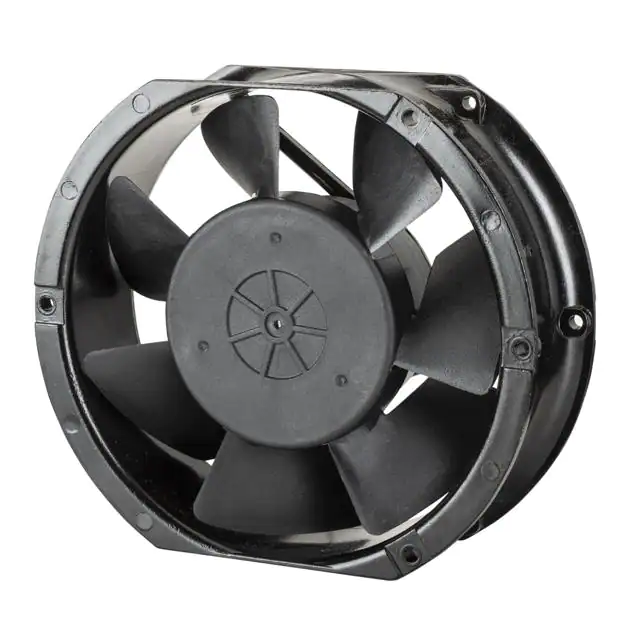

G1751L24BALB1-7FAN AXIAL 172X51MM 24VDC WIRE |
3,499 |
|
Datasheet |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 193.8 CFM (5.49m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 45.6dB(A) | 7.2 W | 2100 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

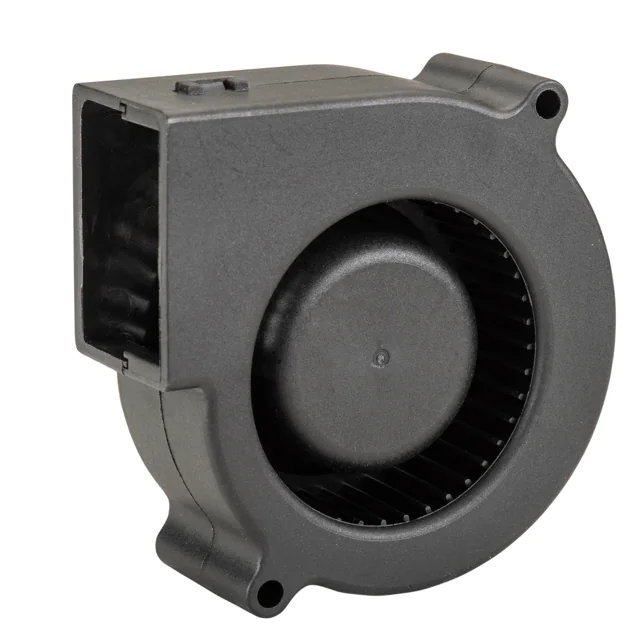

RBH7530B1FAN BLOWER 75X30MM 12VDC WIRE |
4,855 |
|
Datasheet |
hiFLOW | Bulk | Active | 12VDC | Rectangular/Round - 75mm L x 75mm H | 13.5 CFM (0.38m³/min) | 0.690 in H2O (171.9 Pa) | Ball | 30.00mm | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 43.0dB(A) | 5.4 W | 3500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
08025SA-24P-EA-D0FAN AXIAL 80X25MM 24VDC WIRE |
4,775 |
|
Datasheet |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.0 CFM (1.32m³/min) | 0.203 in H2O (50.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 34.0dB | 2.64 W | 3500 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
G1G097-AA05-14FAN |
4,312 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1.7 lbs (780.0 g) |
|
|
12038VA-48R-EL-E0FAN AXIAL 120X38MM 48VDC WIRE |
2,236 |
|
Datasheet |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 66.0dB | 38.4 W | 6400 RPM | - | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
12038VA-24Q-EA-E0FAN AXIAL 120X38MM 24VDC WIRE |
1,244 |
|
Datasheet |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 63.0dB | 25 W | 5700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-24N-AA-E0FAN AXIAL 120X38MM 24VDC WIRE |
2,511 |
|
Datasheet |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 182.6 CFM (51.13m³/min) | 0.830 in H2O (206.7 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 59.0dB | 17.76 W | 4700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-12P-EL-E0FAN AXIAL 120X38MM 12VDC WIRE |
3,826 |
|
Datasheet |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 59.5dB | 18 W | 5000 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
12038VA-48Q-EL-E0FAN AXIAL 120X38MM 48VDC WIRE |
2,598 |
|
Datasheet |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 63.0dB | 28.8 W | 5700 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
11938MA-12L-ET-D0FAN AXIAL 119X38.4MM 12VDC WIRE |
4,511 |
|
Datasheet |
11938MA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 122.2 CFM (3.46m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 38.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 49.5dB | 7.9 W | 3200 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
12038VA-24P-ET-E0FAN AXIAL 120X38MM 24VDC WIRE |
1,763 |
|
Datasheet |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 59.5dB | 17.8 W | 5000 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
|
12038VA-24M-EA-E0FAN AXIAL 120X38MM 24VDC WIRE |
2,282 |
|
Datasheet |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 141.2 CFM (3.95m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 53.0dB | 10.8 W | 3800 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
