| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0405H301FAN AXIAL 40X28MM BALL 5VDC WIRE |
127 |
|
Datasheet |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.3 CFM (0.316m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.4 W | 8700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.115 lb (52.16 g) |
|
CFM-8020BF-155-444-20FAN AXIAL 80X20MM 12VDC WIRE |
204 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.9 CFM (1.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 5.4 W | 5500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-A238V-121-370-20FAN AXIAL 120X38MM 12VDC WIRE |
190 |
|
Datasheet |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 3.33 W | 2100 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.481 lb (218.18 g) |
|
109P0612H779FAN AXIAL 60X15MM 12VDC |
106 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | - | - | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | - | 4100 RPM | - | 2 Position Rectangular Connector | -4 ~ 158°F (-20 ~ 70°C) | - | 0.133 lb (60.33 g) |
|
CBM-A232B-125-482-20FAN BLOWER 119.3X32MM 12VDC WIRE |
286 |
|
Datasheet |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | 32.00mm | Blower | Auto Restart, Speed Sensor (Tach) | 48.2dB(A) | 6.84 W | 2500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD4010-05MB01AFAN AXIAL 40X10.5MM 5VDC WIRE |
444 |
|
Datasheet |
OD4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 10.50mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.3dB | - | 6000 RPM | CE, cURus, TUV, UR | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.441 lb (200.00 g) |
|

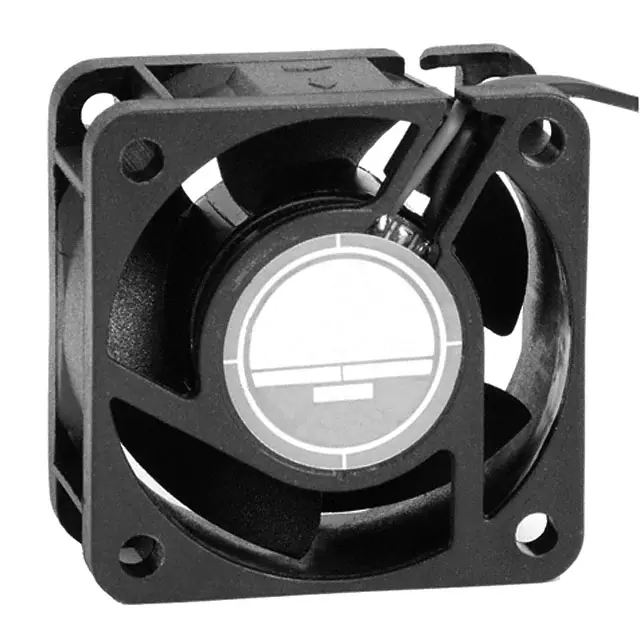

OD4020-05HB02AFAN AXIAL 40X20MM BALL 5VDC WIRE |
370 |
|
Datasheet |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.1dB(A) | 1.6 W | 7780 RPM | CE, cURus, TUV | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
OD4020-12LB02AFAN AXIAL 40X20MM 12VDC WIRE |
911 |
|
Datasheet |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 24.1dB(A) | 980 mW | 5150 RPM | CE, cURus, TUV | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
DC1202512J2B-2T0FAN AXIAL 120X25MM 12VDC WIRE |
191 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 2100 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9A0812G4011FAN AXIAL 80X25MM 12VDC WIRE |
111 |
|
Datasheet |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 4.56 W | 4500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.199 lb (90.26 g) |
|
11938KA-24J-EA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
240 |
|
Datasheet |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 38.40mm | Tubeaxial | Auto Restart | 37.0dB | 3.6 W | 2300 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CBM-979433B-130-507-20FAN BLOWER 97.68X32.7MM 12VDC |
176 |
|
Datasheet |
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 20.5 CFM (0.574m³/min) | 0.660 in H2O (164.4 Pa) | Ball | 32.70mm | Blower | Auto Restart, Speed Sensor (Tach) | 50.7dB(A) | 6.48 W | 3000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-6025BF-275-439-20FAN AXIAL 60X25.4MM 24VDC WIRE |
175 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 35.9 CFM (1.01m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 7.2 W | 7500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
G6015H24B-AGR-EMFAN AXIAL 60X15MM 24VDC WIRE |
185 |
|
Datasheet |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 15.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 33.0dB(A) | - | 4600 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | IP57 - Dust Protected, Waterproof | 0.111 lb (50.35 g) |
|
CBM-A232S-125-482FAN BLOWER 119.3X32MM 12VDC WIRE |
183 |
|
Datasheet |
CBM-120S | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | 32.00mm | Blower | Auto Restart | 48.2dB(A) | 6.84 W | 2500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-A238V-221-370-20FAN AXIAL 120X38MM 24VDC WIRE |
179 |
|
Datasheet |
CFM-120V | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 3.59 W | 2100 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.481 lb (218.18 g) |
(4028BG).jpg)
|
CFM-4028BG-1200-568-22FAN AXIAL 40X28MM 12VDC WIRE |
171 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.4 CFM (0.683m³/min) | 2.440 in H2O (607.8 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.9dB(A) | 11.28 W | 20000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109R0624M4011FAN AXIAL 60X25MM 24VDC WIRE |
152 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0605H4D01FAN AXIAL 60X25MM BALL 5VDC WIRE |
115 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.7 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
CFM-A238B-138-529FAN AXIAL 120X37.5MM 12VDC WIRE |
286 |
|
Datasheet |
CFM-120B | Box | Active | 12VDC | Square - 120mm L x 120mm H | 146.9 CFM (4.11m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 37.50mm | Tubeaxial | Auto Restart | 53.0dB(A) | 13.2 W | 3800 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
