| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17001173AFAN AXIAL 12VDC GLD12K3E2X-E3 |
114 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 175.0 CFM (4.90m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.9dB(A) | 23.9 W | 3900 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
17001190AFAN AXIAL 12VDC PQD12B3E2X-E3 |
2,180 |
|
Datasheet |
Major | Bulk | Active | 12VDC | Round - 171.4mm Dia | 235.0 CFM (6.58m³/min) | - | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 27.1 W | 3400 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9WPA0812G420280X25MM 12VDC IP68 -40C |
4,977 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | -40 ~ 158°F (-40 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9WPA0824G420280X25MM 24VDC IP68 -40C |
1,034 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | -40 ~ 158°F (-40 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9WPA0824P4G201180X25MM 24VDC IP68 RBLS -40C TAC |
4,206 |
|
Datasheet |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 82.0 CFM (2.30m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 25.20mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 8250 RPM | - | 4 Wire Leads | -40 ~ 158°F (-40 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
4118N/2HH-187FAN AXIAL 119X38MM 48VDC WIRE |
2,373 |
|
Datasheet |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 160.0 CFM (4.48m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 64.0dB(A) | 14.7 W | 5000 RPM | - | 3 Wire Leads | -4 ~ 122°F (-20 ~ 50°C) | - | 0.86 lb (390.09 g) |
|
|
4312TFAN AXIAL 119X32MM 12VDC WIRE |
170 |
|
Datasheet |
4300 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 5 W | 2800 RPM | - | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.485 lb (220.00 g) |
|
|
W2G110-AP39-92FAN AXIAL 119X38MM 48VDC WIRE |
4,180 |
|
Datasheet |
S | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach), Thermal Overload Protector (TOP) | - | 5.6 W | 3030 RPM | - | 3 Wire Leads | -13 ~ 140°F (-25 ~ 60°C) | IP22 | 1.1 lbs (500.0 g) |
|

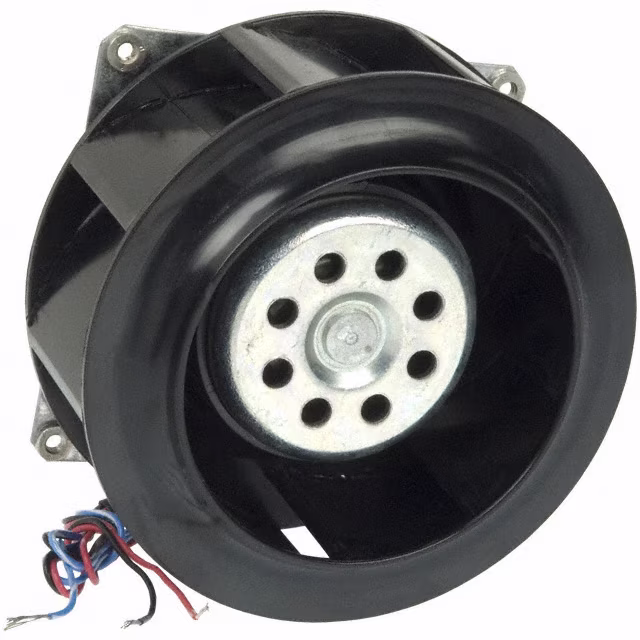

19039825AFAN IMP MTR 118X55MM DD402148K1R |
4,446 |
|
Datasheet |
Diplomat | Bulk | Active | 48VDC | Round - 118mm Dia | 116.0 CFM (3.25m³/min) | 1.730 in H2O (430.9 Pa) | Ball | 55.60mm | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 67.0dB(A) | 34.6 W | 5900 RPM | CE, cUL, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
4414F/17MD-182FAN AXIAL 119X25.4MM 24VDC WIRE |
340 |
|
Datasheet |
4400F | Box | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Sensor | 43.0dB(A) | 5 W | 2900 RPM | CE, CSA, UL, VDE | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.39 lb (176.9 g) |
|
|
8212J/2H4FAN AXIAL 80X38MM 12VDC WIRE |
4,782 |
|
Datasheet |
8200J, S-Force | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 130.7 CFM (3.66m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 71.0dB(A) | 39 W | 14000 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

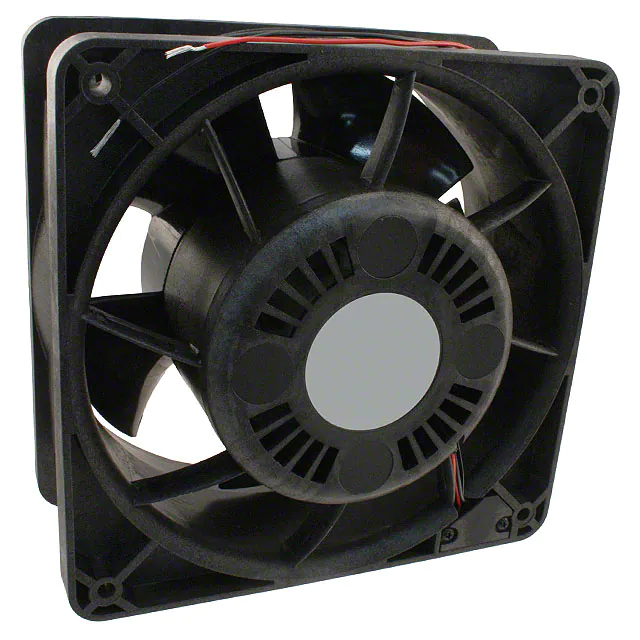

19031520AFAN AXIAL 175.5X111.8MM TD48B1 |
138 |
|
Datasheet |
Tarzan | Box | Active | 48VDC | Square - 175.5mm L x 175.5mm H | 325.0 CFM (9.10m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 111.8mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 65.2dB(A) | 33.6 W | 3275 RPM | cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 5 lbs (2.3 kg) |
|
6412MFAN AXIAL 172X50.8MM 12VDC TERM |
2,369 |
|
Datasheet |
6400 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 206.0 CFM (5.77m³/min) | - | Ball | 50.80mm | Tubeaxial | - | 52.0dB(A) | 12 W | 2850 RPM | - | 2 Terminals | -4 ~ 162°F (-20 ~ 72°C) | - | 1.7 lbs (771.1 g) |
|
19039822AFAN IMP MTR 102X55MM DD402148B1R |
4,998 |
|
Datasheet |
Diplomat | Bulk | Active | 48VDC | Round - 118mm Dia | 98.0 CFM (2.74m³/min) | 1.560 in H2O (388.6 Pa) | Ball | 55.60mm | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 18.2 W | 5000 RPM | CE, cUL, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
RER101-36/12NHHFAN IMP MTRZD 100X50.25MM 12VDC |
4,501 |
|
Datasheet |
RER101 | Bulk | Active | 12VDC | Round - 100mm Dia | 112.0 CFM (3.14m³/min) | - | Ball | 50.25mm | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 6.9dB(A) | 20.5 W | 6000 RPM | CE | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
19040521AFAN 24VDC MT24R7-E2 |
3,738 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV5212/2NFAN AXIAL 127X38MM 12VDC WIRE |
2,397 |
|
Datasheet |
DV5200 | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 159.0 CFM (4.45m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 21 W | 5000 RPM | - | 3 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | IP54 - Dust Protected, Water Resistant | - |
|
|
DV4118/2NP-183FAN AXIAL 119X38MM BALL 48VDC |
1,482 |
|
Datasheet |
DV4100 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 165.0 CFM (4.62m³/min) | - | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | - | - | - | - | - | - | - |
|
19044018AFAN AXIAL 172X51MM MFXE48Z1D3 |
246 |
|
Datasheet |
Mixtus | Box | Active | 48VDC | Round - 171.5mm Dia | 400.0 CFM (11.20m³/min) | - | Ball | 50.80mm | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 69.0dB(A) | 74.4 W | 5400 RPM | CE, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
JL3-PE03019A24H-3BFAN BLOWER CF 247X50MM 24VDC |
267 |
|
Datasheet |
J-Series | Bulk | Active | 24VDC | Rectangular - 247mm L x 48mm H | 56.0 CFM (1.6m³/min) | 0.190 in H2O (46.1 Pa) | Ball | 50.00mm | Blower, Cross Flow | Auto Restart, Locked Rotor Protection, Polarity Protection | 46.0dB(A) | 6 W | 4500 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
