| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG1224F1002FAN AXIAL 120X38MM 24VDC WIRE |
4,172 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | - | 4.56 W | - | - | 2 Wire Leads | - | - | - |
|

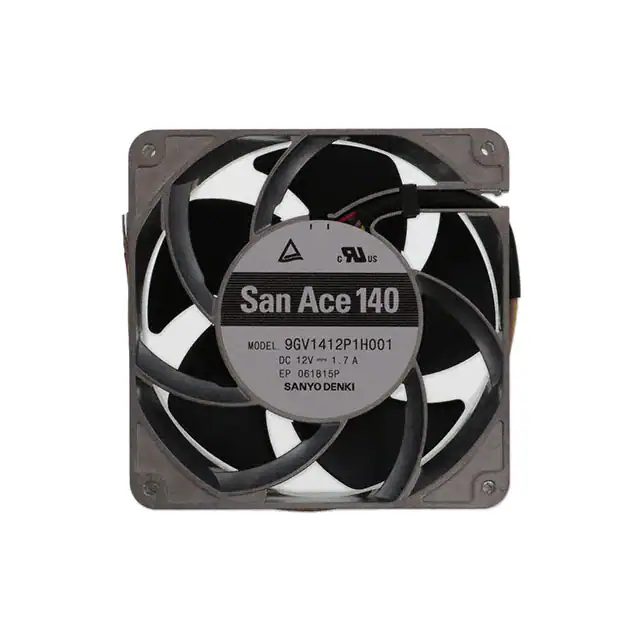

9GV1412P1H001FAN AXIAL 140X38MM 12VDC WIRE |
4,725 |
|
Datasheet |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 212.0 CFM (5.94m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 20.4 W | 5200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.4 lbs (635.0 g) |
|
9LG1412M1001FAN AXIAL 140X38MM 12VDC WIRE |
4,070 |
|
Datasheet |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.4 lbs (650.0 g) |
|
|
9LG1412M1D001FAN AXIAL 140X38MM 12VDC WIRE |
3,158 |
|
Datasheet |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 7.2 W | 3300 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.4 lbs (650.0 g) |
|
|
9LG1412L1001FAN AXIAL 140X38MM 12VDC WIRE |
1,943 |
|
Datasheet |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 3.3 W | 2300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.8 lb (800.0 g) |
|
15050VE-24R-GT-00FAN AXIAL 172.7X50.8MM 24VDC |
1,552 |
|
Datasheet |
15050VE | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 68.0dB(A) | 43.2 W | 4600 RPM | CE, cULus, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
FDD1-17251DBLW32FAN AXIAL 172X51MM 24VDC WIRE |
2,392 |
|
Datasheet |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | 51.00mm | Tubeaxial | - | 56.0dB(A) | 21.4 W | 3200 RPM | CE, cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 2.3 lbs (1 kg) |
|
4182NXHFAN AXIAL 119X38MM 12VDC TERM |
3,640 |
|
Datasheet |
4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 139.5 CFM (3.91m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | CSA, UL, VDE | 2 Terminals | -22 ~ 131°F (-30 ~ 55°C) | - | 0.86 lb (390.09 g) |
|
|
9LG1448L1002FAN AXIAL 140X38MM 48VDC WIRE |
2,342 |
|
Datasheet |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | - | 5.3 W | 2300 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.5 lbs (680.4 g) |
|
|
9LG1448M1002FAN AXIAL 140X38MM 48VDC WIRE |
4,006 |
|
Datasheet |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 7.2 W | 3300 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.5 lbs (680.4 g) |
|
W2G107-AD03-13FAN AXIAL 119X38MM 24VDC TERM |
1,295 |
|
Datasheet |
W2G107 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.0 CFM (2.80m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 42.0dB(A) | 3.3 W | - | CSA, UL, VDE | 2 Terminals | - | - | 1.3 lbs (589.7 g) |
|
|
9LG1448A5001FAN AXIAL 140X51MM 48VDC WIRE |
1,560 |
|
Datasheet |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 31.7 W | 5700 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.8 lb (800.0 g) |
|
|
9LG1412A5D001FAN AXIAL 140X51MM 12VDC WIRE |
2,111 |
|
Datasheet |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 51.00mm | Tubeaxial | Locked Rotor Sensor | - | 31.4 W | 5700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.8 lb (800.0 g) |
|
OD172SAP-48HBIP68FAN AXIAL 172X51MM 48VDC WIRE |
2,038 |
|
Datasheet |
OD172SAP | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart | 52.0dB | 23.5 W | 3300 RPM | cURus, TUV | 2 Wire Leads | 5 ~ 149°F (-15 ~ 65°C) | IP68 - Dust Tight, Waterproof | 1.8 lbs (816.5 g) |
|
|
9W2TM48P4H001FAN IMP MTRZD 100X25MM 48VDC |
2,847 |
|
Datasheet |
San Ace 100W | Box | Active | 48VDC | Round - 100mm Dia | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 25.00mm | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.56 W | 6400 RPM | - | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
DV5218NFAN AXIAL 127X38MM 48VDC WIRE |
2,159 |
|
Datasheet |
DV5200 | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 158.9 CFM (4.45m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 56.0dB(A) | 19 W | 5000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | 0.915 lb (415.04 g) |
|
|
9LG1412L1002FAN AXIAL 140X38MM 12VDC WIRE |
4,845 |
|
Datasheet |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 91.8 CFM (2.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | - | 3.3 W | 2300 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.8 lb (800.0 g) |
|
|
9LG1424M1001FAN AXIAL 140X38MM 24VDC WIRE |
2,670 |
|
Datasheet |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.5 lbs (680.4 g) |
|
|
9CRE0812P8G001FAN AXIAL DUAL 80X80MM 12VDC |
4,461 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 158.9 CFM (4.45m³/min) | 4.620 in H2O (1150.8 Pa) | Ball | 80.00mm | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 63.6 W | 12000 Front, 11300 Rear | cURus, TUV | 4 Wire Leads per Fan | -4 ~ 158°F (-20 ~ 70°C) | - | 1.1 lbs (499.0 g) |
|
|
9LG1448M1001FAN AXIAL 140X38MM 48VDC WIRE |
1,822 |
|
Datasheet |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | 130.0 CFM (3.64m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.2 W | 3300 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1.5 lbs (680.4 g) |
