| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-4007C-165-295-20DC BLOWER, 40 MM SQUARE, 7 MM, 1 |
3,643 |
|
Datasheet |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 1.9 CFM (0.053m³/min) | 0.710 in H2O (176.9 Pa) | omniCOOL™ Magnetic Sleeve | 7.00mm | Blower | - | 29.5dB(A) | 1.68 W | 6500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
5143HQ/PMD2406PTBX-A.(2).U.BDC FAN 60X25MM |
3,066 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AFB0524VHD-R00FAN AXIAL 50X20MM 24VDC WIRE |
3,417 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 20.00mm | Tubeaxial | Locked Rotor Sensor | 40.5dB(A) | 2.4 W | 7000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.085 lb (38.56 g) |
|
|
08025SA-24K-AA-D0FAN AXIAL 80X25MM 24VDC WIRE |
4,195 |
|
Datasheet |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 26.1 CFM (0.731m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 19.0dB | 720 mW | 2000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

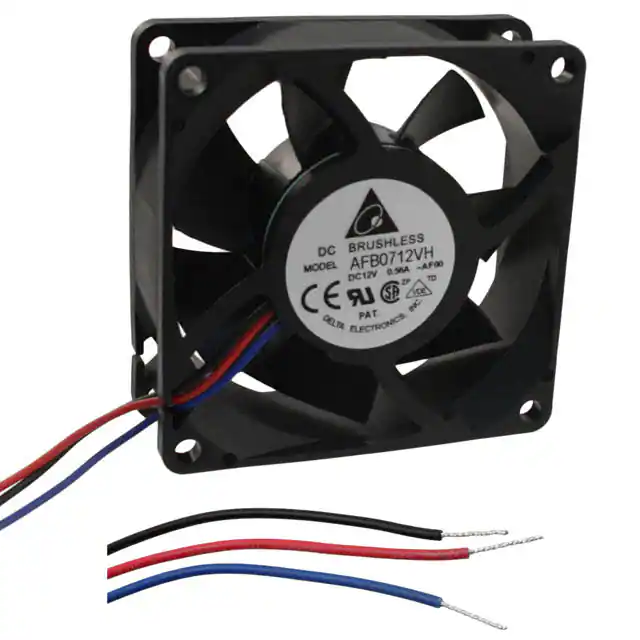

AFB0712VH-AF00FAN AXIAL 70X25.4MM 12VDC WIRE |
3,737 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 52.0 CFM (1.46m³/min) | 0.433 in H2O (107.9 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.5dB(A) | 5.28 W | 5500 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
09225SA-12N-ET-D0FAN AXIAL 92X25MM 12VDC WIRE |
2,760 |
|
Datasheet |
09225SA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB | 1.92 W | 3100 RPM | - | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9A0824S4011FAN AXIAL 80X25MM 24VDC WIRE |
4,433 |
|
Datasheet |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 3400 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
CHT8012BX-W25B12V 0.37A 80*25 BALL 4; 46.46CFM |
3,634 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4260HQ/UF3H3-719DC FAN 17X3MM |
3,198 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F8025H24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
2,214 |
|
Datasheet |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 29.0dB(A) | - | 2400 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.174 lb (78.93 g) |
|
|
CBM-7525B-125-301-20DC BLOWER, 75.2 X 74.2 X 25 MM, |
1,124 |
|
Datasheet |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Blower | Auto Restart, Speed Sensor (Tach) | 30.1dB(A) | 1.2 W | 2500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9A0612G4D011FAN AXIAL 60X25MM 12VDC WIRE |
1,340 |
|
Datasheet |
San Cooler 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.6 CFM (0.773m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 2.88 W | 5600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.176 lb (80.00 g) |
|
109R0624G4011FAN AXIAL 60X25MM 24VDC WIRE |
4,801 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.12 W | 5600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0824L4011FAN AXIAL 80X25MM 24VDC WIRE |
1,604 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 960 mW | 1850 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
|
08020SA-24K-EA-00FAN AXIAL 80X20MM 24VDC WIRE |
2,339 |
|
Datasheet |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 31.0dB(A) | 1.44 W | 2900 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12K-EA-00FAN AXIAL 80X20MM 12VDC WIRE |
1,705 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 31.1 CFM (0.871m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 31.0dB(A) | 840 mW | 2900 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08020SA-12M-EA-00FAN AXIAL 80X20MM 12VDC WIRE |
2,906 |
|
Datasheet |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 39.9 CFM (1.12m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 37.5dB(A) | 1.56 W | 3700 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
FFB0924EHE-R00FAN AXIAL 92X38MM 24VDC WIRE |
3,403 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 55.0dB(A) | 12 W | 4800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.437 lb (198.00 g) |
|
AFB0812HHBFAN AXIAL 80X15MM 12VDC WIRE |
4,874 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 35.7 CFM (1.00m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 1.92 W | 3400 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
|
DC0922524M2B-2T0FAN 92X25MM 24VDC |
4,532 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 3.36 W | 2850 RPM | CE, cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
