| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0948P1G001FAN AXIAL 92X38MM 48VDC TACH PWM |
4,289 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 12 W | 5800 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1224H10011120X38MM 24VDC RBLS TACH |
1,790 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.1 W | 3000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1224H1D0011120X38MM 24VDC RBLS LCKRTRSNS |
2,576 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.1 W | 3000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

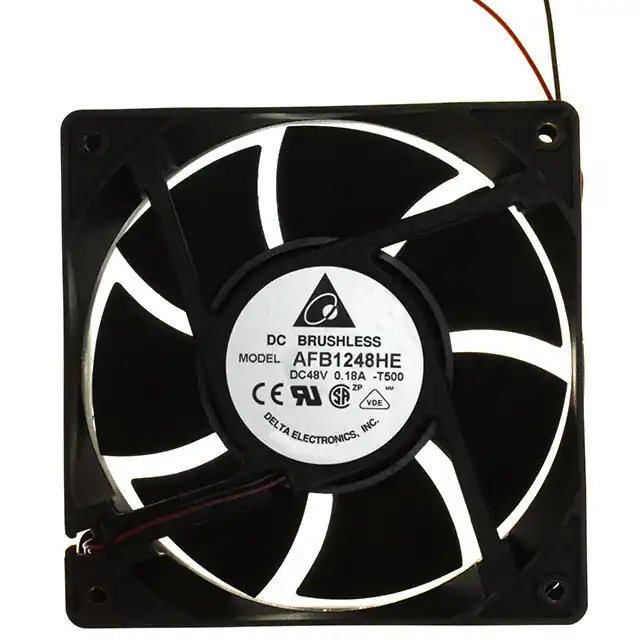

AFB1248HE-T500FAN AXIAL 120X38MM 48VDC WIRE |
2,554 |
|
Datasheet |
AFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 5.76 W | 2600 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.565 lb (256.28 g) |
|
|
9CRV0412P5H20140X56MM 12VDC COUNTER ROTATING T |
4,654 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PFB0924DHE-F00FAN AXIAL 92X38MM 24VDC WIRE |
1,530 |
|
Datasheet |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 34.8 W | 8000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.553 lb (250.84 g) |
|
|
CFM-9238BF68-165-535DC AXIAL FAN, 92 MM SQUARE, 38 M |
2,621 |
|
Datasheet |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 53.5dB(A) | 8.4 W | 6500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9WPA0624M400260X25MM 24VDC IP68 HIGH PERF. |
2,922 |
|
Datasheet |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | - |
|
|
9WF0924S2D01FAN AXIAL 92X32MM 24VDC WIRE |
3,216 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 98.9 CFM (2.78m³/min) | 1.020 in H2O (255.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | 12 W | 7300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | Oil Resistant | 0.408 lb (185.07 g) |
|
|
9RA1224H1002120X38MM 24VDC |
3,479 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | - | - | - |
|
|
PFB0924GHEP6AXIAL 92X38 24V PWM IP68 |
3,355 |
|
Datasheet |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 124.2 CFM (3.48m³/min) | 1.004 in H2O (250.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.5dB(A) | 15.6 W | 6000 RPM | CE, cURus, VDE | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9RA1212H1D0011120X38MM 12VDC RBLS LCKRTRSNS |
4,558 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | - | - | - | cURus, TUV | 3 Wire Leads | - | - | - |
|
|
9RA1212H1001120X38MM 12VDC TACH |
2,823 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3 W | 3000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1212H10011120X38MM 12VDC RBLS TACH |
1,514 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3 W | 3000 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9RA1224G10021120X38MM 24VDC RBLS |
1,630 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | - | - | - |
|
|
9RA1224E10021120X38MM 24VDC RBLS |
1,698 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | cURus, TUV | 2 Wire Leads | - | - | - |
|
|
9WG1212H102-EFAN AXIAL 120X38MM 12VDC WIRE |
3,940 |
|
Datasheet |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 4.56 W | 2600 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.904 lb (410.05 g) |
|
|
9WG1224F102-EFAN AXIAL 120X38MM 24VDC WIRE |
2,160 |
|
Datasheet |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 3.84 W | 2280 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP55 - Dust Protected, Water Resistant | 0.904 lb (410.05 g) |
|
|
9GA0812P1G611FAN AXIAL 80X38MM 12VDC WIRE |
1,592 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 100.6 CFM (2.82m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 14.4 W | 10500 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.353 lb (160.12 g) |
|
|
9RA0948J1001FAN AXIAL 92X38MM 48VDC TACH |
2,272 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 117.0 CFM (3.28m³/min) | 0.771 in H2O (192.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 14.9 W | 6400 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
