| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HYW08025012BSS-12FAN AXIAL 80X25.4MM 12VDC WIRE |
2,439 |
|
Datasheet |
HYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 25.40mm | Tubeaxial | - | 53.5dB(A) | 7.2 W | 6200 RPM | - | 2 Wire Leads | - | - | - |
|
|
HYW08025024BM-12FAN AXIAL 80X25.4MM 24VDC WIRE |
2,809 |
|
Datasheet |
HYW08025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 25.40mm | Tubeaxial | - | 43.5dB(A) | 3.12 W | 4400 RPM | - | 2 Wire Leads | - | - | - |
|
|
HYW08025012BM-12FAN AXIAL 80X25.4MM 12VDC WIRE |
1,728 |
|
Datasheet |
HYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 25.40mm | Tubeaxial | - | 43.5dB(A) | 3.12 W | 4400 RPM | - | 2 Wire Leads | - | - | - |
|
|
HYW08025024BSS-12FAN AXIAL 80X25.4MM 24VDC WIRE |
3,215 |
|
Datasheet |
HYW08025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 25.40mm | Tubeaxial | - | 53.5dB(A) | 7.92 W | 6200 RPM | - | 2 Wire Leads | - | - | - |
|

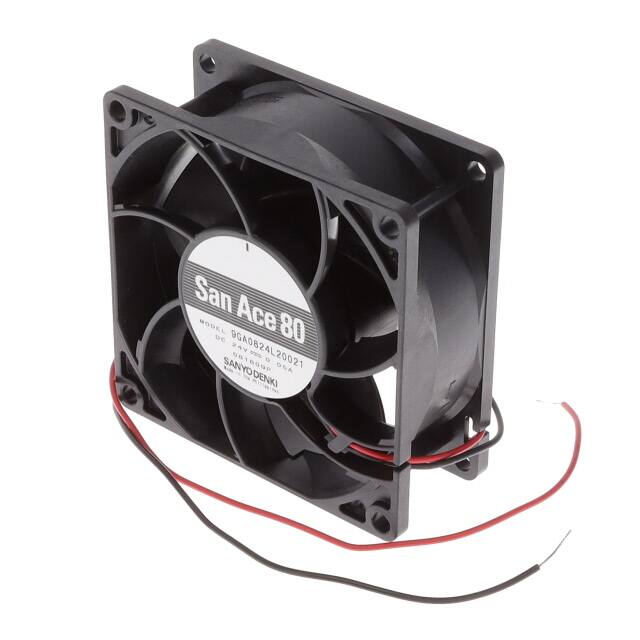

9GA0824L20021FAN AXIAL 80X32MM 24VDC WIRE |
4,146 |
|
Datasheet |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection | - | 1.2 W | - | - | 2 Wire Leads | - | - | - |
|
FN-GALE-02GALE EXTREME MINING FAN ASIC |
4,323 |
|
Datasheet |
FN | Retail Package | Active | 12VDC | Square - 120mm L x 120mm H | 195.0 CFM (5.52m³/min) | 0.945 in H2O (235.4 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control | 60.0dB(A) | 33.6 W | 500/6000 RPM | - | 4 Position Rectangular Connector | - | - | - |
|
4715KL-07W-B39-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
2,682 |
|
Datasheet |
11938KA | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 38.40mm | Tubeaxial | Locked Rotor Sensor | 42.5dB | 7.68 W | 2950 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.573 lb (259.91 g) |
|
BG0903-B054-00L-00FAN BLOWER 97X33MM 24VDC WIRE |
4,098 |
|
Datasheet |
09533GA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Sensor | 54.5dB | 11.8 W | 3700 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.463 lb (210.01 g) |
|
CFR1B12HFAN MIC BLOWER 43.8X23.5MM 12VDC |
4,575 |
|
Datasheet |
CFR1B | Tape & Box (TB) | Active | 12VDC | Rectangular - 43.8mm L x 23mm H | 6.7 CFM (0.188m³/min) | 0.190 in H2O (46.1 Pa) | Ball | 23.50mm | Micro Blower | Auto Restart, Locked Rotor Protection | 28.0dB(A) | 840 mV | 8000 RPM | CE, cUL, TUV, UL | - | -10°C ~ 70°C | - | - |
|
|
CFR1B5HFAN MICR BLOWER 43.8X23.5MM 5VDC |
1,723 |
|
Datasheet |
CFR1B | Tape & Box (TB) | Active | 5VDC | Rectangular - 43.8mm L x 23mm H | - | 0.190 in H2O (46.1 Pa) | Ball | 23.50mm | Micro Blower | Auto Restart, Locked Rotor Protection | 28.0dB(A) | 840 mV | 8000 RPM | CE, cUL, TUV, UL | - | -10°C ~ 70°C | - | - |
|
|
CFR1B12H-SMINI. BLOWER 12VDC/TACH |
2,018 |
|
Datasheet |
CFR1B | Tape & Box (TB) | Active | 12VDC | Rectangular - 43.8mm L x 23mm H | - | 0.190 in H2O (46.1 Pa) | Ball | 23.50mm | Micro Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 840 mV | 8000 RPM | CE, cUL, TUV, UL | - | -10°C ~ 70°C | - | - |
|
3414MFAN AXIAL 92X25.4MM 24VDC WIRE |
2,333 |
|
Datasheet |
3400 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 42.0 CFM (1.18m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 32.0dB(A) | 1.8 W | - | - | 2 Wire Leads | - | - | 0.31 lb (140.61 g) |
|
|
FD6025B24W11-21-2RDC Axial Fan 60x60x25mm 24VDC |
1,901 |
|
Datasheet |
21 | Tape & Box (TB) | Active | 24VDC | Square - 60mm L x 60mm H | 40.7 CFM (1.14m³/min) | 0.566 in H2O (141.0 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 47.3dB(A) | 5.04 W | 6800 RPM | cUL, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.124 lb (56.25 g) |
|
|
FD1225B12W11-87-2RDC Fan 120x120x25mm 12VDC |
1,354 |
|
Datasheet |
96 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 122.2 CFM (3.46m³/min) | 0.343 in H2O (85.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 50.4dB(A) | 9 W | 3500 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.32 lb (145.15 g) |
|
|
FD6025B12W7-83-2NDC Axial Fan 60x60x25mm 12VDC |
3,652 |
|
Datasheet |
83 | Tape & Box (TB) | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.306 in H2O (76.4 Pa) | Ball | 25.00mm | Tubeaxial | - | 35.0dB(A) | 3 W | 4800 RPM | CE, cUL, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
FD9225B24W7-81-2RDC Axial Fan 92x92x25mm 24VDC |
4,693 |
|
Datasheet |
81 | Tape & Box (TB) | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 60.0 CFM (1.68m³/min) | 0.134 in H2O (33.5 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 33.7dB(A) | 4.32 W | 2800 RPM | cUL, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9GA0812A20021FAN AXIAL 80X32MM 12VDC WIRE |
3,274 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection | - | 3.72 W | - | - | 2 Wire Leads | - | - | - |
|
|
HYW08025048BSS-12FAN AXIAL 80X25.4MM 48VDC WIRE |
1,891 |
|
Datasheet |
HYW08025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 25.40mm | Tubeaxial | - | 53.5dB(A) | 7.68 W | 6200 RPM | - | 2 Wire Leads | - | - | - |
|
|
HYW08025048BM-12FAN AXIAL 80X25.4MM 48VDC WIRE |
2,809 |
|
Datasheet |
HYW08025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 25.40mm | Tubeaxial | - | 43.5dB(A) | 4.08 W | 4400 RPM | - | 2 Wire Leads | - | - | - |
|
BG0903-B054-000-00FAN BLOWER 97X33MM 24VDC WIRE |
1,005 |
|
Datasheet |
09533GA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | 33.00mm | Blower | - | 54.5dB | 11.8 W | 3700 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.463 lb (210.01 g) |
