| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

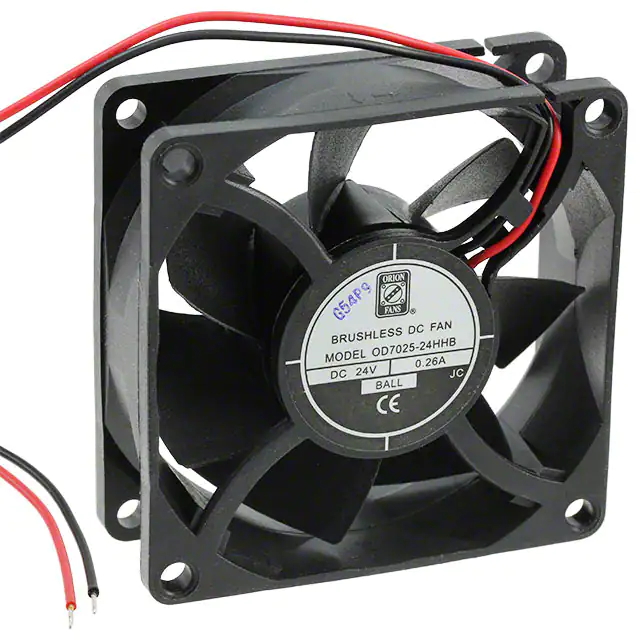

OD7025-24HHBFAN AXIAL 70X25MM 24VDC WIRE |
897 |
|
Datasheet |
OD7025 | Box | Active | 24VDC | Square - 70mm L x 70mm H | 51.0 CFM (1.43m³/min) | - | Ball | 25.00mm | Tubeaxial | - | 46.0dB | 6.24 W | 5000 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.198 lb (89.81 g) |
|

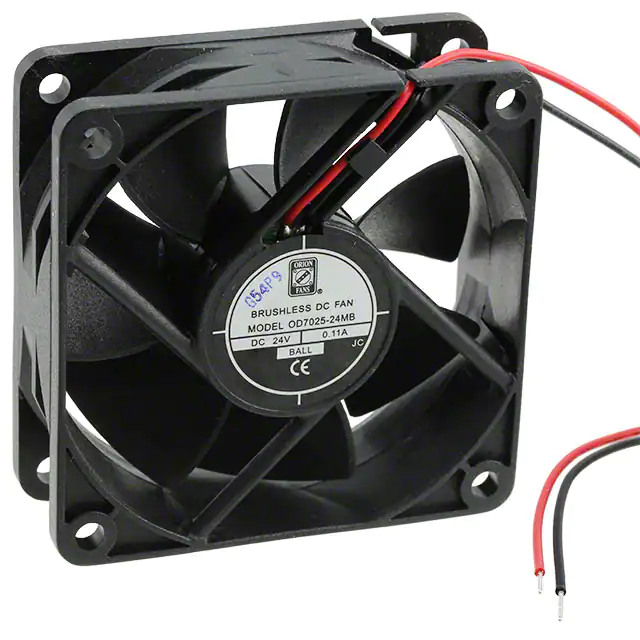

OD7025-24MBFAN AXIAL 70X25MM 24VDC WIRE |
715 |
|
Datasheet |
OD7025 | Box | Active | 24VDC | Square - 70mm L x 70mm H | 33.0 CFM (0.924m³/min) | - | Ball | 25.00mm | Tubeaxial | - | 36.0dB | 2.64 W | 3800 RPM | CE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.198 lb (89.81 g) |
|
MF25101V3-1000U-A99Thermal Products |
401 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | 10.00mm | Tubeaxial | Auto Restart | 4.8dB(A) | 210 mW | 6000 RPM | CE, cURus, TUV | 2 Wire Leads | - | - | - |
|
CFM-8020BF-245-401FAN AXIAL 80X20MM 24VDC WIRE |
346 |
|
Datasheet |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 44.0 CFM (1.23m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 40.2dB(A) | 4.32 W | 4500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9A0912H4021FAN AXIAL 92X25MM 12VDC WIRE |
1,910 |
|
Datasheet |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.52 W | 3150 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.222 lb (100.7 g) |
|
G4010E12B-RSRFAN AXIAL 40X10.3MM 12VDC WIRE |
250 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 10.30mm | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB(A) | - | 10000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.026 lb (11.79 g) |
|

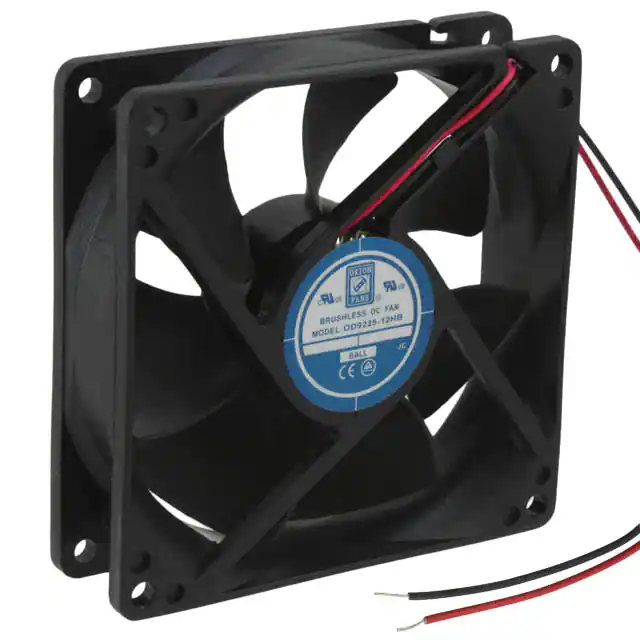

OD9225-12HBFAN AXIAL 92.5X25MM 12VDC WIRE |
5,946 |
|
Datasheet |
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 60.2 CFM (1.69m³/min) | 0.025 in H2O (6.2 Pa) | Ball | 25.00mm | Tubeaxial | - | 38.0dB | 3 W | 3325 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
OD9225-24HBFAN AXIAL 92.5X25MM 24VDC WIRE |
1,486 |
|
Datasheet |
OD9225 | Box | Active | 24VDC | Square - 92.5mm L x 92.5mm H | 53.0 CFM (1.48m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 25.00mm | Tubeaxial | - | 35.0dB | - | 2900 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|

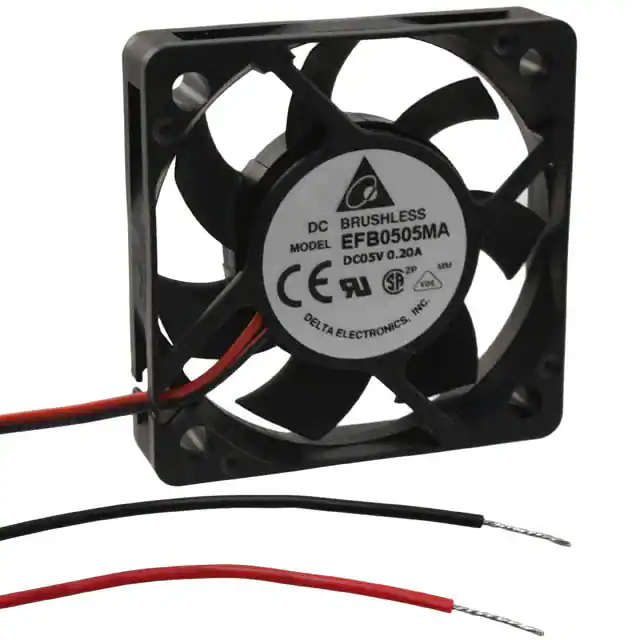

EFB0505MAFAN AXIAL 50X10MM BALL 5VDC WIRE |
1,530 |
|
Datasheet |
EFB | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 9.2 CFM (0.258m³/min) | 0.113 in H2O (28.1 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 650 mW | 4500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.057 lb (25.85 g) |
|
|
CFM-4015B-1135-415DC AXIAL FAN, 40 MM SQUARE, 15 M |
304 |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 15.10mm | Tubeaxial | Auto Restart | 41.5dB(A) | 3.6 W | 13500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109R0648H402FAN AXIAL 60X25MM 48VDC WIRE |
381 |
|
Datasheet |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.92 W | 3800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
4142/MF40202V1-1000U-A99FAN AXIAL 40X20MM VAPO 24VDC |
271 |
|
Datasheet |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.9 CFM (0.249m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | 20.00mm | Tubeaxial | Auto Restart | 25.5dB(A) | 770 mW | 7000 RPM | cURus, TUV | 2 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.064 lb (29.03 g) |
|
G4020H12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
113 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 20.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.062 lb (28.12 g) |
|
|
04028DA-12R-AAF-0FAN AXIAL 40X28MM 12VDC WIRE |
978 |
|
Datasheet |
04028DA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.6 CFM (0.577m³/min) | 2.990 in H2O (744.8 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart | 62.8dB | 10.2 W | 22000 RPM | - | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

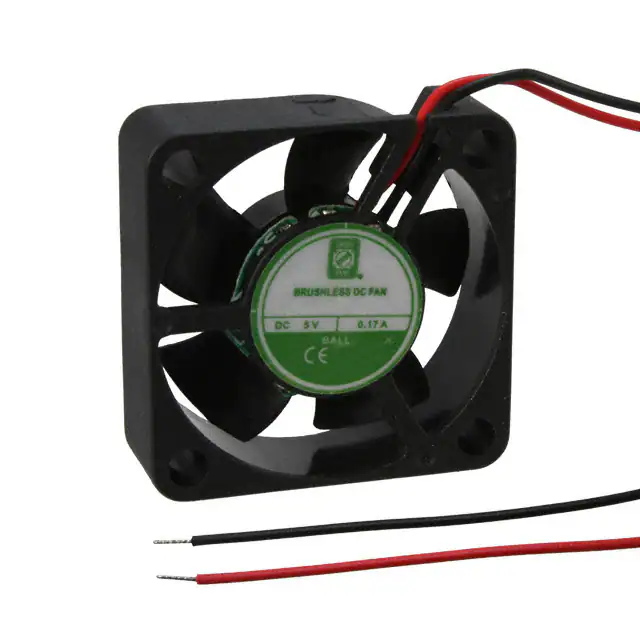

OD3010-05HBFAN AXIAL 30X10.2MM 5VDC WIRE |
4,440 |
|
Datasheet |
OD3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 5.0 CFM (0.140m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 10.20mm | Tubeaxial | - | 30.2dB(A) | - | 11000 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|

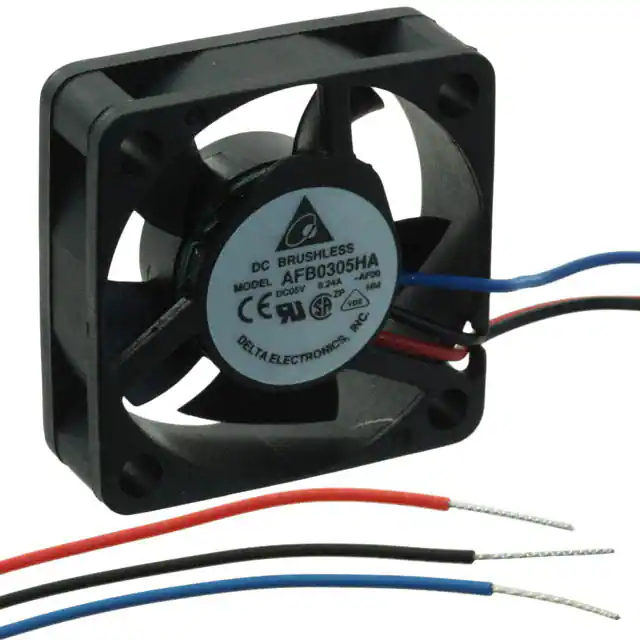

AFB0305HA-AF00FAN AXIAL 30X10MM BALL 5VDC WIRE |
2,080 |
|
Datasheet |
AFB | Bulk | Not For New Designs | 5VDC | Square - 30mm L x 30mm H | 3.5 CFM (0.098m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 800 mW | 9000 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.024 lb (10.89 g) |
|
DC0702512U2B-2T0FAN AXIAL 70X25MM 12VDC WIRE |
127 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 3.24 W | 5500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FAD1-06025CBKW12-AFAN AXIAL 60X25MM 12VDC WIRE |
156 |
|
Datasheet |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 31.5 CFM (0.882m³/min) | 0.445 in H2O (110.8 Pa) | Ball | 25.00mm | Tubeaxial | - | 42.7dB(A) | 3.84 W | 6000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.137 lb (62.14 g) |
|
MR4020M12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
354 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 29.8dB(A) | - | 8000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.053 lb (24.04 g) |
|
MR4020E24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
344 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 20.00mm | Tubeaxial | Auto Restart | 39.1dB(A) | - | 11000 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.053 lb (24.04 g) |
