| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G1238E48B2-FSR-WSFAN AXIAL 120X38MM 48VDC WIRE |
4,686 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMD4806PTBX-A.(2).U.GNFAN AXIAL 60X25MM 48VDC WIRE |
4,134 |
|
Datasheet |
PMD | Bulk | Obsolete | 48VDC | Square - 60mm L x 60mm H | 40.0 CFM (1.12m³/min) | 0.640 in H2O (159.4 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 46.0dB(A) | 5.4 W | 7600 RPM | - | 2 Wire Leads | - | - | - |
|
|
17000206AFAN AXIAL 24VDC CR1224UB-Y51 |
1,613 |
|
Datasheet |
- | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 133.4 CFM (3.74m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 32.30mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.4dB(A) | 7.68 W | 3200 RPM | CE, cUL, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.47 lb (213.19 g) |
|
|
17000208AFAN AXIAL 12VDC CR1212UB-Y51 |
2,664 |
|
Datasheet |
- | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 133.4 CFM (3.74m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 32.30mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.4dB(A) | 6.12 W | 3200 RPM | CE, cUL, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.47 lb (213.19 g) |
|

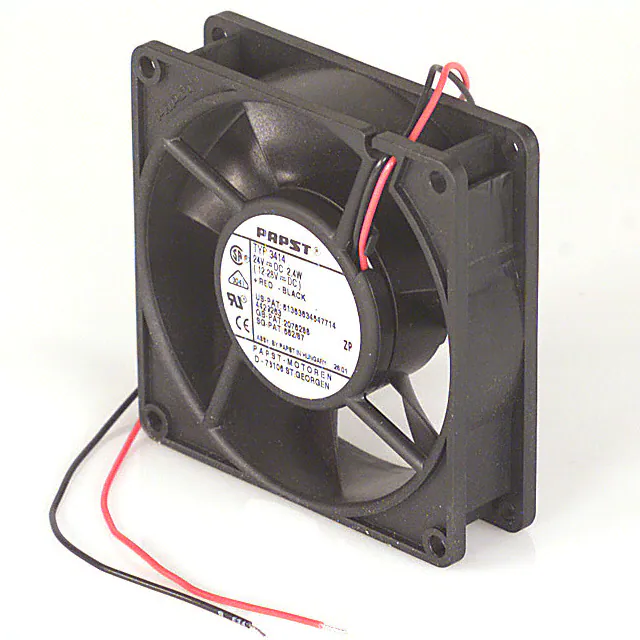

3414FAN AXIAL 92X25.4MM 24VDC WIRE |
3,482 |
|
Datasheet |
3400 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 49.0 CFM (1.37m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 36.0dB(A) | 2.6 W | - | - | 2 Wire Leads | - | - | 0.31 lb (140.61 g) |
|
|
3414LFAN AXIAL 92X25.4MM 24VDC WIRE |
4,418 |
|
Datasheet |
3400 | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 36.0 CFM (1.01m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 27.0dB(A) | 1.4 W | - | - | 2 Wire Leads | - | - | 0.31 lb (140.61 g) |
|
DC0602512W2B-2T0FAN AXIAL 60X25MM 12VDC WIRE |
2,644 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 55.4 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 6.48 W | 9800 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.126 lb (57.15 g) |
|
|
DC0602512V2B-2T0FAN AXIAL 60X25MM 12VDC WIRE |
2,968 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 5.76 W | 7500 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.126 lb (57.15 g) |
|
|
DC0602512U2B-2T0FAN AXIAL 60X25MM 12VDC WIRE |
1,908 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 5.4 W | 6800 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.126 lb (57.15 g) |
|
|
PF92252B1-1000U-S9924VDC FAN 92X25MM TACH/PWM |
3,634 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 46.1dB(A) | 4.92 W | 4500 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|
|
CFM-A238BJ-238-564-20DC AXIAL FAN, 120 MM SQUARE, 38 |
3,449 |
|
Datasheet |
CFM-A2BJ | Box | Active | 24VDC | Square - 120mm L x 120mm H | 180.0 CFM (5.04m³/min) | 0.550 in H2O (137.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.4dB(A) | 19.92 W | 3800 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PF38281B1-1000U-Q9HFAN AXIAL 38X28MM 12VDC WIRE |
1,345 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 18.1 CFM (0.507m³/min) | 1.540 in H2O (383.6 Pa) | Ball | 28.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 51.8dB(A) | 3.78 W | 16000 RPM | CCC, CE, cURus, TUV | 4 Wire Leads | - | - | - |
|
|
PF38281BX-1000U-Q9H12VDC FAN 38X28MM ALARM/PWM |
3,376 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control | 57.0dB(A) | 6.84 W | 20000 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF80252B3-1000U-F9924VDC FAN 80X25MM TACH |
3,847 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 42.5dB(A) | 2.4 W | 4200 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF80252B1-1000U-F9924VDC FAN 80X25MM TACH |
4,109 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.5dB(A) | 3.72 W | 4800 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF80252B2-1000U-F9924VDC FAN 80X25MM TACH |
4,002 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 56.0 CFM (1.6m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.0dB(A) | 3.24 W | 4500 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
GB0504ADV1-8.B2471.GNFAN BLOWER 40X8MM VAPO 5VDC WIRE |
2,683 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 5VDC | Square/Rounded - 40mm L x 40mm H | - | - | Vapo-Bearing™ | 8.00mm | Blower | - | - | - | - | CUR, TUV, UL | 2 Wire Leads | - | - | - |
|
|
9GE0412J301FAN AXIAL 40X28MM 12VDC WIRE |
4,409 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.4 CFM (0.683m³/min) | 1.378 in H2O (343.2 Pa) | Ball | 28.00mm | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 7.8 W | 15000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.122 lb (55.34 g) |
|
|
9GE0412J3D01FAN AXIAL 40X28MM 12VDC WIRE |
4,996 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 24.4 CFM (0.683m³/min) | 1.378 in H2O (343.2 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Sensor | 56.0dB(A) | 7.8 W | 15000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.122 lb (55.34 g) |
|
|
9GE0412G3D01FAN AXIAL 40X28MM 12VDC WIRE |
2,752 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 21.2 CFM (0.594m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 5.64 W | 13000 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.122 lb (55.34 g) |
