| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9BD12SD6-1FAN BLOWER 76X20MM 12VDC WIRE |
2,609 |
|
Datasheet |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 10.2 CFM (0.286m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 20.00mm | Blower | Locked Rotor Sensor | 43.0dB(A) | 3.36 W | 4500 RPM | cURus, TUV | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
|
UB5U3-500BThermal Products |
4,147 |
|
Datasheet |
UB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 0.636 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | 3.00mm | Blower | Auto Restart, Speed Sensor (Tach) | 25.6dB(A) | 360 mW | 9500 RPM | CE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP58 - Dust Protected, Waterproof | - |
|

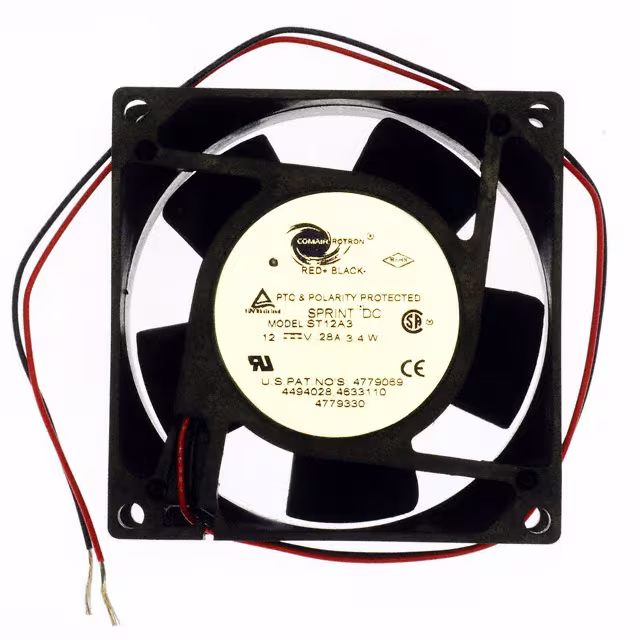

19032107AFAN AXIAL 80X32MM 12VDC ST12A3 |
3,909 |
|
Datasheet |
Sprint | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Sleeve | 32.00mm | Tubeaxial | - | 40.9dB(A) | 3.4 W | 3400 RPM | - | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
OD9225-48HHBIP68FAN AXIAL 92X25MM 48VDC WIRE |
2,105 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 38.0dB | 4.3 W | 3300 RPM | cURus, TUV | 2 Wire Leads | 5 ~ 149°F (-15 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.211 lb (95.71 g) |
|
|
OD9225-48LBIP68FAN AXIAL 92X25MM 48VDC WIRE |
1,796 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.0 CFM (0.896m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 27.0dB | 1.9 W | 2100 RPM | cURus, TUV | 2 Wire Leads | 5 ~ 149°F (-15 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.211 lb (95.71 g) |
|
|
OD9225-48MBIP68FAN AXIAL 92X25MM 48VDC WIRE |
1,668 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 35.0 CFM (0.980m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 30.0dB | 2.4 W | 2500 RPM | cURus, TUV | 2 Wire Leads | 5 ~ 149°F (-15 ~ 65°C) | IP68 - Dust Tight, Waterproof | 0.211 lb (95.71 g) |
|
|
DC1203824H2B-3T3FAN 120X38MM 24VDC TACH MOLEX 22 |
1,953 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 114.7 CFM (3.21m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 9.6 W | 2600 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
PE92254B1-000U-A99FAN AXIAL 92X25MM 48VDC WIRE |
3,759 |
|
Datasheet |
PE | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 47.0dB(A) | 6 W | 4500 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.228 lb (103.42 g) |
|
|
PE92254B3-000U-A99FAN AXIAL 92X25MM 48VDC WIRE |
3,937 |
|
Datasheet |
PE | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 43.0dB(A) | 4.95 W | 3900 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.228 lb (103.42 g) |
|
|
SG40281BX-000U-A99FAN AXIAL 40X28MM 12VDC |
3,408 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DC0923812U2B-2T0FAN AXIAL 92X38MM 12VDC WIRE |
4,229 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 67.0dB(A) | 30 W | 7000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.441 lb (200.00 g) |
|
|
DC0923812H2B-2T0FAN AXIAL 92X38MM 12VDC WIRE |
1,920 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 123.6 CFM (3.46m³/min) | 1.120 in H2O (279.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 14.4 W | 6000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.441 lb (200.00 g) |
|
|
GFC0412DS-DU49FAN AXIAL DUAL 40X56MM 12VDC |
3,917 |
|
Datasheet |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 35.9 CFM (1.01m³/min) | 3.985 in H2O (992.6 Pa) | Ball | 56.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.5dB(A) | 22.2 W | 23000 Front, 17400 Rear | CE, cURus, TUV | 4 Wire Leads per Fan | 14 ~ 140°F (-10 ~ 60°C) | - | 0.183 lb (83.01 g) |
|
|
B1232H12B1-BSR-CCFAN BLOWER 120X32MM 12VDC WIRE |
4,824 |
|
Datasheet |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 28.0 CFM (0.784m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 32.00mm | Blower | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 2800 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.705 lb (319.78 g) |
|
9G0912A2011FAN AXIAL 92X32MM 12VDC WIRE |
3,368 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.2 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 6.96 W | 4300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0912A2D01FAN AXIAL 92X32MM 12VDC WIRE |
1,369 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.2 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 6.96 W | 4300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0912A2D011FAN AXIAL 92X32MM 12VDC WIRE |
3,742 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.2 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 6.96 W | 4300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0924S2D011FAN AXIAL 92X32MM 24VDC WIRE |
1,602 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 4.56 W | 3500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
9G0912S2D011FAN AXIAL 92X32MM 12VDC WIRE |
3,784 |
|
Datasheet |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.7 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 4.56 W | 3500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0924A2D011FAN AXIAL 92X32MM 24VDC WIRE |
1,117 |
|
Datasheet |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Sensor | 44.0dB(A) | 7.2 W | 4300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.375 lb (170.1 g) |
