| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1203824V2B-BT4FAN 120X38MM 24VDC PWM/TACH MOLE |
1,647 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 19.2 W | 3200 RPM | CE, cURus | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC1203824W2B-BT4FAN 120X38MM 24VDC PWM/TACH MOLE |
2,420 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 37.2 W | 4200 RPM | CE, cURus | 4 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
DC0923812L2B-3T0FAN AXIAL 92X38MM 12VDC WIRE |
2,163 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 97.0 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 6 W | 4300 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.441 lb (200.00 g) |
|
|
DC0803848V2B-3T0FAN 80X38MM 48VDC TACH |
2,554 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 129.6 W | 9000 RPM | CE, cURus | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0923824L2B-2T0FAN 92X38MM 24VDC |
1,280 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 97.1 CFM (2.72m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 12 W | 4300 RPM | CE, cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
BFB1212HH-F00FAN BLOWER 120X32MM 12VDC WIRE |
1,739 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.5 CFM (0.910m³/min) | 1.063 in H2O (264.8 Pa) | Ball | 32.00mm | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 13.2 W | 2800 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.508 lb (230.42 g) |
|

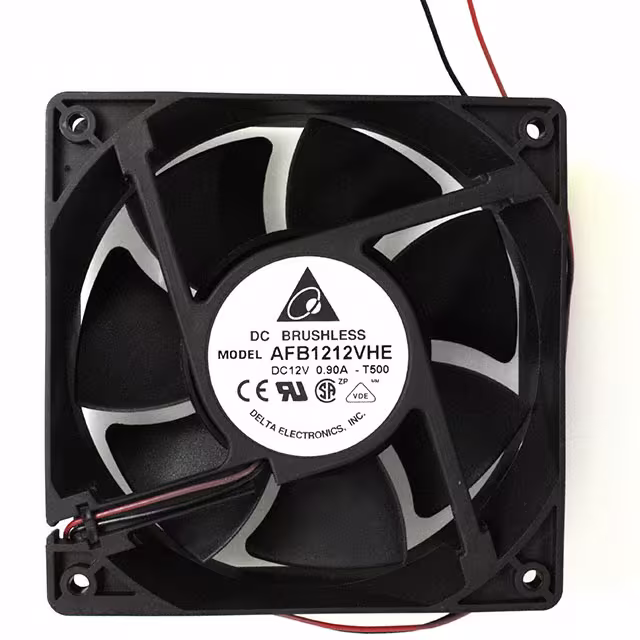

AFB1212VHE-T500FAN AXIAL 120X38MM 12VDC WIRE |
3,855 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 129.9 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 7.2 W | 3200 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | IP55 - Dust Protected, Water Resistant | 0.565 lb (256.28 g) |
|
|
MS8038H48B1+6-FHRFAN AXIAL 80X38MM 48VDC WIRE |
1,059 |
|
Datasheet |
MS8038-H | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 120.5 CFM (3.37m³/min) | 1.550 in H2O (385.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 77.0dB(A) | - | 10000 RPM | - | 4 Wire Leads | - | - | 0.391 lb (177.35 g) |
|
MR1238E24B1-FSRFAN AXIAL 120X38MM 24VDC WIRE |
4,732 |
|
Datasheet |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 261.0 CFM (7.31m³/min) | 1.325 in H2O (330.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 67.9dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.838 lb (380.11 g) |
|
|
DC0923824U2B-BT0FAN 92X38MM 24VDC PWM/TACH |
3,481 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 145.6 CFM (4.08m³/min) | 1.460 in H2O (363.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 60 W | 7000 RPM | CE, cURus | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0803824V2B-2T2FAN 80X38MM 24VDC MOLEX 22-01-10 |
2,209 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 66.0dB(A) | 64.8 W | 9000 RPM | CE, cURus | 2 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
OD9238-24HHBXCFAN AXIAL 92X38MM 24VDC WIRE |
3,602 |
|
Datasheet |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | 38.00mm | Tubeaxial | Auto Restart | - | - | - | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
OD9238-12HHBXCFAN AXIAL 92X38MM 12VDC WIRE |
2,385 |
|
Datasheet |
OD9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 174.0 CFM (4.87m³/min) | 1.700 in H2O (423.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 68.0dB | 42 W | 8000 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
OD9238-48HHBXCFAN AXIAL 92X38MM 48VDC WIRE |
4,118 |
|
Datasheet |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | - | - | Ball | 38.00mm | Tubeaxial | Auto Restart | - | - | - | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9WP0812H4D01FAN AXIAL 80X25MM 12VDC WIRE |
4,436 |
|
Datasheet |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.56 W | 4500 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | IP68 - Dust Tight, Waterproof | 0.287 lb (130.18 g) |
|
|
CFM-9238BF-280-585-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,827 |
|
Datasheet |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 13.68 W | 8000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-9238BF-195-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,828 |
|
Datasheet |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.8dB(A) | 21.6 W | 9500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

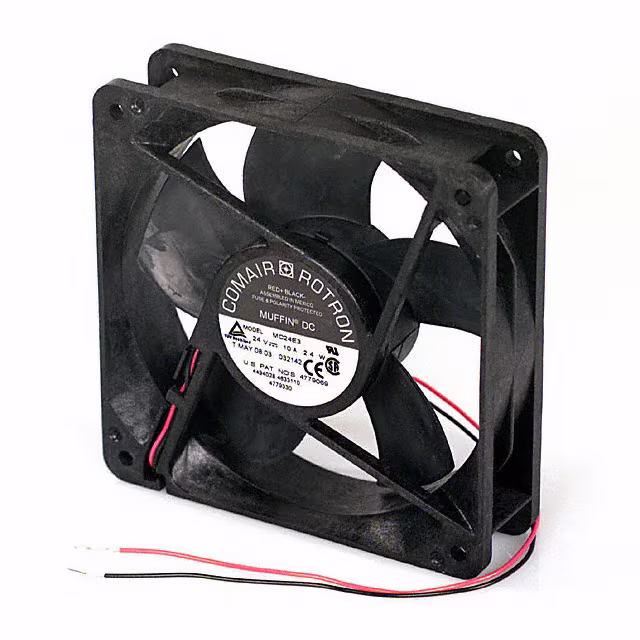

19032142AFAN AXIAL 120X32MM 24VDC MC24E3 |
1,658 |
|
Datasheet |
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 60.0 CFM (1.68m³/min) | 0.132 in H2O (32.9 Pa) | Sleeve | 32.00mm | Tubeaxial | - | 39.7dB(A) | 2.4 W | 2170 RPM | - | 2 Wire Leads | - | - | 0.529 lb (239.95 g) |
|

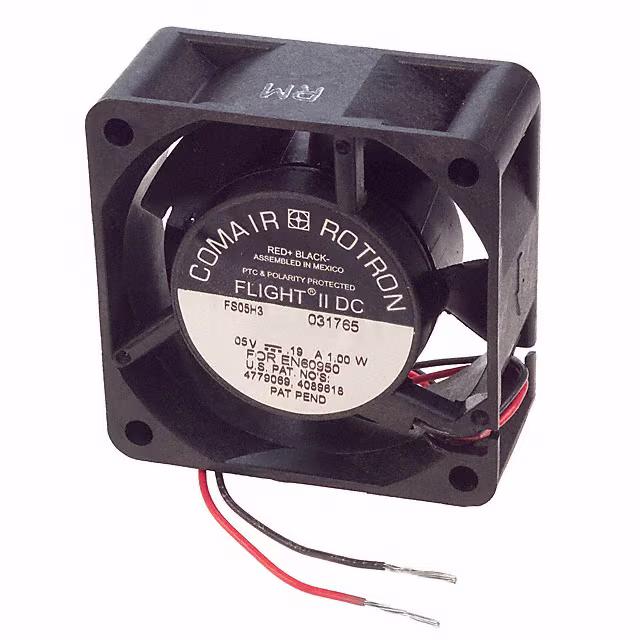

19031765AFAN AXIAL 60X25MM BALL 5V FS05H3 |
1,807 |
|
Datasheet |
Flight II 60 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.145 in H2O (36.1 Pa) | Ball | 25.00mm | Tubeaxial | - | 28.5dB(A) | 1 W | 3500 RPM | - | 2 Wire Leads | - | - | 0.243 lb (110.22 g) |
|
|
DC1203824L2B-BT0FAN 120X38MM 24VDC PWM/TACH |
3,061 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 212.6 CFM (5.95m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 51.84 W | 4600 RPM | CE, cURus | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
