| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109BM12MA2-1FAN BLOWER 97.2X33MM 12VDC WIRE |
3,379 |
|
Datasheet |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection | 43.5dB(A) | 3.12 W | 2700 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
|
109BM24GA2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
2,177 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 28.9 CFM (0.809m³/min) | 1.129 in H2O (281.0 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection | 51.5dB(A) | 7.44 W | 3800 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
|
109BM24MA2-1FAN BLOWER 97.2X33MM 24VDC WIRE |
3,750 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.2mm L x 94.5mm H | 20.5 CFM (0.574m³/min) | 0.478 in H2O (119.1 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection | 43.5dB(A) | 3.6 W | 2700 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.386 lb (175.09 g) |
|
|
DC0603848J2B-3T3FAN 60X38MM 48VDC TACH MOLEX 22- |
3,216 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 32.64 W | 9000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0603848I2B-3T3FAN 60X38MM 48VDC TACH MOLEX 22- |
3,833 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 24.96 W | 8000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0603848L2B-3T3FAN 60X38MM 48VDC TACH MOLEX 22- |
4,519 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 48 W | 10000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0402824L2B-3T1FAN 40X28MM 24VDC TACH COMPUTER |
2,094 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 13.8 CFM (0.386m³/min) | 0.460 in H2O (114.6 Pa) | Ball | 28.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 3.36 W | 8000 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
19031175AFAN AXIAL 120.1X25.6MM FT24B3 |
3,912 |
|
Datasheet |
Flight II 120 | - | Obsolete | 24VDC | Square - 120.1mm L x 120.1mm H | 90.0 CFM (2.52m³/min) | 0.211 in H2O (52.6 Pa) | Ball | 25.60mm | Tubeaxial | - | 42.9dB(A) | 4 W | 2940 RPM | - | 2 Wire Leads | - | - | 0.441 lb (200.03 g) |
|
|
9G0848G1011FAN AXIAL 80X38MM 48VDC WIRE |
4,282 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 13 W | 6300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0848H1011FAN AXIAL 80X38MM 48VDC WIRE |
4,672 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 9.6 W | 5700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0848G1D01FAN AXIAL 80X38MM 48VDC WIRE |
1,516 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 13 W | 6300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0848G1D011FAN AXIAL 80X38MM 48VDC WIRE |
4,563 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 13 W | 6300 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
|
9G0848H1D01FAN AXIAL 80X38MM 48VDC WIRE |
1,267 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 9.6 W | 5700 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.375 lb (170.1 g) |
|
DC1203812M2B-3T0FAN AXIAL 120X38MM 12VDC WIRE |
3,648 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 9 W | 2900 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.508 lb (230.42 g) |
|
|
DC1203812H2B-3T0FAN AXIAL 120X38MM 12VDC WIRE |
1,440 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 136.0 CFM (3.81m³/min) | 0.540 in H2O (134.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 9.6 W | 3200 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.508 lb (230.42 g) |
|
19031157AFAN AXIAL 60X25MM 24VDC FS24B3 |
3,257 |
|
Datasheet |
Flight II 60 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 25.00mm | Tubeaxial | - | 33.9dB(A) | 1.9 W | 4927 RPM | - | 2 Wire Leads | - | - | 0.243 lb (110.22 g) |
|

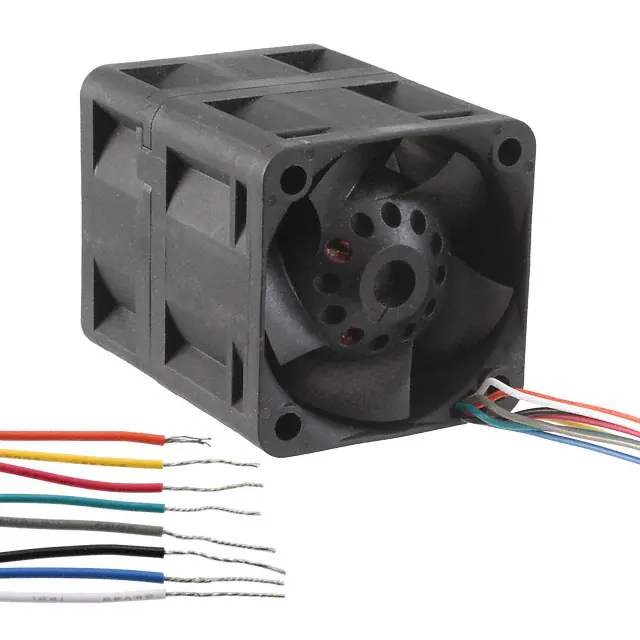

GFC03812HG-DV46FAN AXIAL DUAL 38X48MM 12VDC |
2,967 |
|
Datasheet |
GFC | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 26.4 CFM (0.739m³/min) | 3.866 in H2O (963.0 Pa) | Ball | 48.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 18.24 W | 21700 Front, 20000 Rear | cURus, TUV | 4 Wire Leads per Fan | 14 ~ 158°F (-10 ~ 70°C) | - | 0.167 lb (75.75 g) |
|
|
DC0923824V2B-3T0FAN 92X38MM 24VDC TACH |
4,061 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 72.0dB(A) | 70.8 W | 8000 RPM | CE, cURus | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0923848V2B-2T0FAN 92X38MM 48VDC |
2,408 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 166.4 CFM (4.66m³/min) | 1.910 in H2O (475.7 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 72.0dB(A) | 141.6 W | 8000 RPM | CE, cURus | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0603824M2B-3T0FAN 60X38MM 24VDC TACH |
2,854 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 67.0 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 33.12 W | 12000 RPM | CE, cURus | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
