| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VF60384B1-1000U-Q9H48VDC FAN 60X38MM ALARM/PWM |
2,192 |
|
Datasheet |
VF | Box | Active | 48VDC | Square - 60mm L x 60mm H | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control | 60.9dB(A) | 12.72 W | 18300 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
19044013AFAN 80X32MM 12VDC ST12B3-E2 |
4,523 |
|
Datasheet |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | - | Ball | 32.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 40.9dB(A) | 3.4 W | 3400 RPM | UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
9CRE0412J50140X56MM 12V,COUNTER ROTATING,LOW |
3,039 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 56.00mm | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | cURus, TUV | 3 Wire Leads | - | - | - |
|

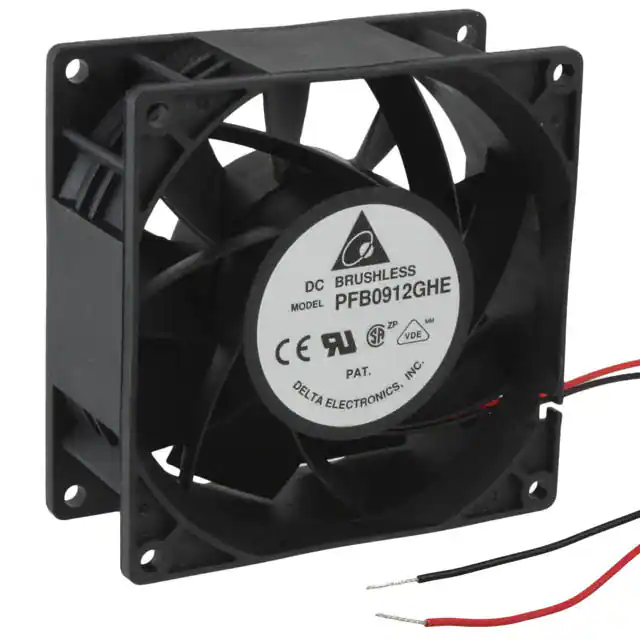

PFB0912GHEFAN AXIAL 92X38MM 12VDC WIRE |
4,628 |
|
Datasheet |
PFB | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 129.3 CFM (3.62m³/min) | 1.015 in H2O (252.8 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 60.5dB(A) | 14.64 W | 6000 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.553 lb (250.84 g) |
|
|
412/2P-097FAN AXIAL 40X20MM 12VDC WIRE |
1,021 |
|
Datasheet |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | - | Sintec | 20.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 800 mW | 6000 RPM | - | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
FFB1312VHE-F00FAN AXIAL 127X38MM 12VDC WIRE |
2,224 |
|
Datasheet |
FFB | Tray | Obsolete | 12VDC | Square - 127mm L x 127mm H | 160.0 CFM (4.48m³/min) | 0.504 in H2O (125.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 15.84 W | 3050 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.1 lbs (499.0 g) |
|
FFB1312EHE-F00FAN AXIAL 127X38MM 12VDC WIRE |
3,055 |
|
Datasheet |
FFB | Bulk | Obsolete | 12VDC | Square - 127mm L x 127mm H | 200.0 CFM (5.60m³/min) | 0.799 in H2O (199.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.5dB(A) | 32.88 W | 3850 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.1 lbs (499.0 g) |
|
|
12038VA-12N-EAE-0DC AXIAL FAN |
3,606 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-12M-EAE-0DC AXIAL FAN |
3,866 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-24L-EAE-0DC AXIAL FAN |
3,513 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12038VA-48L-EA-00DC AXIAL FAN |
4,968 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4394LFAN AXIAL 119X32MM 24VDC TERM |
1,301 |
|
Datasheet |
4300 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 56.0 CFM (1.57m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 30.0dB(A) | 1.2 W | - | CE, CSA, UL, VDE | 2 Terminals | - | - | 0.5 lb (226.8 g) |
|
|
CFM-9238BF68-165-535-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
2,600 |
|
Datasheet |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 8.4 W | 6500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
CFM-9238BF68-265-535-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
4,099 |
|
Datasheet |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 10.8 W | 6500 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9GA0848P2S0011FAN AXIAL 80X32MM 48VDC WIRE |
3,696 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 86.5 CFM (2.42m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 10.56 W | 9700 RPM | CSA, TUV, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.287 lb (130.18 g) |
|
DC0405612U2B-3T0FAN AXIAL 40X56MM 12VDC WIRE |
1,184 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | 56.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 69.0dB(A) | 20.64 W | 21000 RPM | CE, cURus, TUV | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.045 lb (20.41 g) |
|
|
CFM-9238BF68-280-585DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,830 |
|
Datasheet |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart | 58.5dB(A) | 16.8 W | 8000 RPM | CE, cURus, TUV | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
3312MFAN AXIAL 92X32MM 12VDC WIRE |
4,599 |
|
Datasheet |
3300 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 40.0 CFM (1.12m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 34.0dB(A) | 1.7 W | 2600 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | 0.419 lb (190.06 g) |
|
19030768AFAN AXIAL 79.8X41.8MM 24V SD24B5 |
4,504 |
|
Datasheet |
Sprite | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 41.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 47.6dB(A) | 3 W | 3500 RPM | UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.1 lbs (500.0 g) |
|

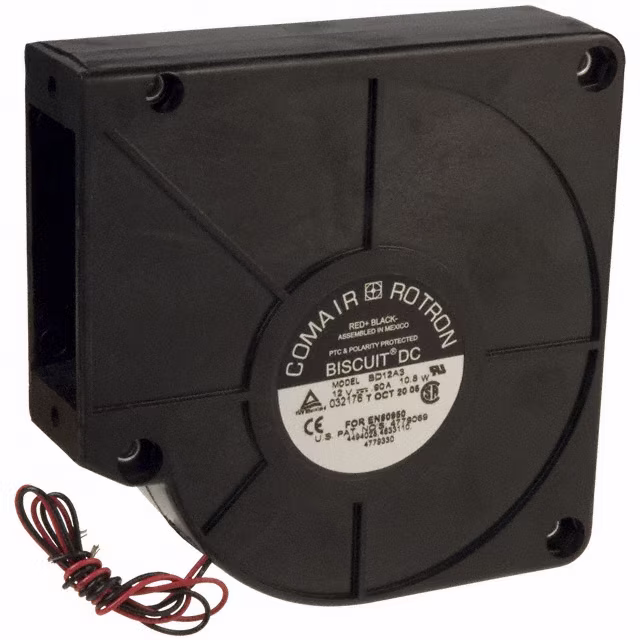

19032176AFAN BLOWER 120.7X31MM 12V BD12A3 |
3,726 |
|
Datasheet |
Biscuit | - | Obsolete | 12VDC | Square/Rounded - 120.7mm L x 120.7mm H | 26.0 CFM (0.728m³/min) | 0.870 in H2O (216.7 Pa) | Sleeve | 31.00mm | Blower | - | 51.2dB(A) | 10.8 W | 3040 RPM | CE, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.619 lb (280.77 g) |
