| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSI1225H12B1-BBRFAN IMP MTRZD 120X25.8MM 12VDC |
1,838 |
|
Datasheet |
MSI1225 | Box | Active | 12VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 25.80mm | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 54.0dB(A) | - | 3300 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.356 lb (161.48 g) |
|
|
MSI1225H12B2-BBRFAN IMP MTRZD 120X25.8MM 12VDC |
3,102 |
|
Datasheet |
MSI1225 | Box | Active | 12VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 25.80mm | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 54.0dB(A) | - | 3300 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.356 lb (161.48 g) |
|
|
MSI1225H24B1-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
1,000 |
|
Datasheet |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 25.80mm | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 54.0dB(A) | - | 3300 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.356 lb (161.48 g) |
|
|
MSI1225H24B2-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
2,691 |
|
Datasheet |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 25.80mm | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 54.0dB(A) | - | 3300 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.356 lb (161.48 g) |
|
|
MSI1225L24B1-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
1,458 |
|
Datasheet |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | - | - | Ball | 25.80mm | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | - | - | - | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.356 lb (161.48 g) |
|
|
MSI1225L24B2-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
2,218 |
|
Datasheet |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | - | - | Ball | 25.80mm | Motorized Impellers | Auto Restart, Locked Rotor Sensor | - | - | - | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.356 lb (161.48 g) |
|
19030723AFAN AXIAL 119.1X39.1MM WD12M3 |
1,716 |
|
Datasheet |
Whisper XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 57.0 CFM (1.60m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 39.10mm | Tubeaxial | - | 30.3dB(A) | 1.2 W | 1675 RPM | - | 2 Wire Leads | - | - | 1.4 lbs (635.0 g) |
|

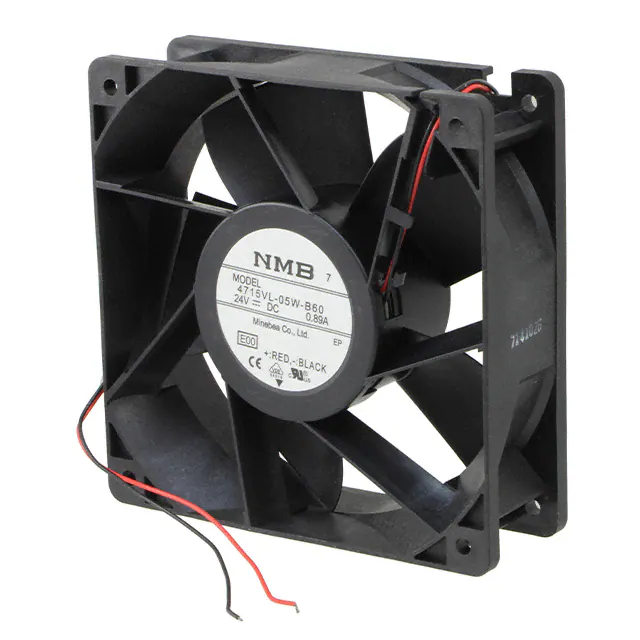

4715VL-05W-B60-E00FAN AXIAL 120X38MM 24VDC WIRE |
4,928 |
|
Datasheet |
4715VL | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 38.00mm | Tubeaxial | - | 59.5dB(A) | 17.8 W | 5000 RPM | CE, UL, VDE | 2 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.816 lb (370.13 g) |
|
MQ1238H12B1+6-FSRFAN AXIAL 120X38MM 12VDC WIRE |
2,491 |
|
Datasheet |
MQ1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 65.0dB(A) | - | 5000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.772 lb (350.17 g) |
|
4715SL-07W-B79-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
4,670 |
|
Datasheet |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | 38.40mm | Tubeaxial | Locked Rotor Sensor | 62.3dB | 39.8 W | 5100 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
|
4715SL-07W-B79-D50FAN AXIAL 119X38.4MM 48VDC WIRE |
2,880 |
|
Datasheet |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | 38.40mm | Tubeaxial | Speed Sensor (Tach) | 62.3dB | 39.8 W | 5100 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
1-NPT/603-1325FAN AXL 120X38MM 12VDC RECT CONN |
4,051 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 29.4 W | 5200 RPM | CE, CSA, UL, VDE | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
|
1-NPT/603-1549FAN AXL 120X38MM 12VDC RECT CONN |
3,390 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 15 W | 4100 RPM | CE, CSA, UL, VDE | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | 0.728 lb (330.22 g) |
|
|
PEAD1A238BH MF00PEAD1A238BH MF00 |
3,309 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17001158AFAN AXIAL 48VDC MSD48B3E2X-E3 |
1,378 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.1dB(A) | 7.2 W | 3000 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
17001161AFAN AXIAL 48VDC MSD48K3E2X-E3 |
3,963 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.8dB(A) | 10.6 W | 3400 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
17001220AFAN AXIAL 24VDC MSD24B3-E3 |
2,679 |
|
Datasheet |
Muffin XP | Box | Active | 24VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | - | Ball | 38.10mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 7 W | 3000 RPM | CE, cUL, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
GE80254B3-000U-AC9FAN 80X25MM 48VDC IP56 53CFM |
4,509 |
|
Datasheet |
GE | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GE92254B3-000U-AC9FAN AXIAL 92X25MM 48VDC WIRE |
1,509 |
|
Datasheet |
GE | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | - | 43.0dB(A) | 4.08 W | 3900 RPM | - | 2 Wire Leads | - | IP56 - Dust Protected, Water Resistant | 0.253 lb (114.76 g) |
|
4294HFAN AXIAL 119X38MM 24VDC TERM |
1,017 |
|
Datasheet |
4200 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 49.0dB(A) | 5.3 W | - | CE, CSA, UL, VDE | 2 Terminals | - | - | 0.63 lb (285.76 g) |
