| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6820PL-05W-B39-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
3,868 |
|
Datasheet |
6820PL | Box | Obsolete | 24VDC | Round - 172mm Dia | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Sensor | 55.0dB | 13.2 W | 3150 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-05W-B39-D50FAN AXIAL 172X50.8MM 24VDC WIRE |
4,285 |
|
Datasheet |
6820PL | Box | Obsolete | 24VDC | Round - 172mm Dia | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | 50.80mm | Tubeaxial | Speed Sensor (Tach) | 55.0dB | 13.2 W | 3150 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-05W-B49-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
4,823 |
|
Datasheet |
6820PL | Box | Obsolete | 24VDC | Round - 172mm Dia | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Sensor | 58.0dB | 15.8 W | 3350 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B19-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
2,260 |
|
Datasheet |
6820PL | Box | Obsolete | 48VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Sensor | 50.0dB | 8.64 W | 2550 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B19-D50FAN AXIAL 172X50.8MM 48VDC WIRE |
3,830 |
|
Datasheet |
6820PL | Box | Obsolete | 48VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.371 in H2O (92.5 Pa) | Ball | 50.80mm | Tubeaxial | Speed Sensor (Tach) | 50.0dB | 8.64 W | 2550 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B29-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,370 |
|
Datasheet |
6820PL | Box | Obsolete | 48VDC | Round - 172mm Dia | 200.0 CFM (5.60m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Sensor | 53.0dB | 11 W | 2850 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B29-D50FAN AXIAL 172X50.8MM 48VDC WIRE |
4,361 |
|
Datasheet |
6820PL | Box | Obsolete | 48VDC | Round - 172mm Dia | 200.0 CFM (5.60m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 50.80mm | Tubeaxial | Speed Sensor (Tach) | 53.0dB | 11 W | 2850 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B39-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
2,696 |
|
Datasheet |
6820PL | Box | Obsolete | 48VDC | Round - 172mm Dia | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | 50.80mm | Tubeaxial | Locked Rotor Sensor | 55.0dB | 13 W | 3150 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B39-D50FAN AXIAL 172X50.8MM 48VDC WIRE |
3,399 |
|
Datasheet |
6820PL | Box | Obsolete | 48VDC | Round - 172mm Dia | 225.0 CFM (6.30m³/min) | 0.562 in H2O (140.0 Pa) | Ball | 50.80mm | Tubeaxial | Speed Sensor (Tach) | 55.0dB | 13 W | 3150 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B49-D50FAN AXIAL 172X50.8MM 48VDC WIRE |
3,907 |
|
Datasheet |
6820PL | Box | Obsolete | 48VDC | Round - 172mm Dia | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 50.80mm | Tubeaxial | Speed Sensor (Tach) | 58.0dB | 15.8 W | 3350 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.8 lbs (816.5 g) |
|
MSI1225H12B1+6-BBRFAN IMP MTRZD 120X25.8MM 12VDC |
4,057 |
|
Datasheet |
MSI1225 | Box | Active | 12VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 25.80mm | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 3300 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.356 lb (161.48 g) |
|
|
5910PL-07W-B10-L00FAN AXIAL 172X25.4MM 48VDC WIRE |
4,337 |
|
Datasheet |
5910PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 170.0 CFM (4.76m³/min) | 0.305 in H2O (75.9 Pa) | Ball | 25.40mm | Tubeaxial | - | 54.1dB | 10.6 W | 2500 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.1 lbs (500.0 g) |
|
|
BFB1624H-R00FAN BLOWER 159X40MM 24VDC WIRE |
4,963 |
|
Datasheet |
BFB | Bulk | Active | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 61.8 CFM (1.73m³/min) | 1.387 in H2O (345.5 Pa) | Ball | 40.00mm | Blower | Locked Rotor Sensor | 56.5dB(A) | 17.16 W | 2200 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 1.3 lbs (589.7 g) |
|
17001167AFAN AXIAL 48VDC MDD48K1E2X-E3 |
2,808 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 125.0 CFM (3.50m³/min) | - | Ball | 39.12mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 7.7 W | 3650 RPM | CE, cUL, UL | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | IP68 - Dust Tight, Waterproof | - |
|
|
9GV1212J102FAN AXIAL 120X38MM 12VDC WIRE |
2,149 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 36 W | 6400 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
|
9GV1212J1021FAN AXIAL 120X38MM 12VDC WIRE |
1,321 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 36 W | 6400 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
|
3412NHH-379DC TUBEAXIAL FAN |
3,158 |
|
Datasheet |
3412 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 60.1 CFM (1.68m³/min) | - | Ball | 25.00mm | Tubeaxial | - | 39.0dB(A) | 2.7 W | 3250 RPM | CSA, VDE, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
9GV1248J102FAN AXIAL 120X38MM 48VDC WIRE |
2,829 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 36 W | 6400 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
|
9GV1248J1021FAN AXIAL 120X38MM 48VDC WIRE |
3,671 |
|
Datasheet |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 36 W | 6400 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|

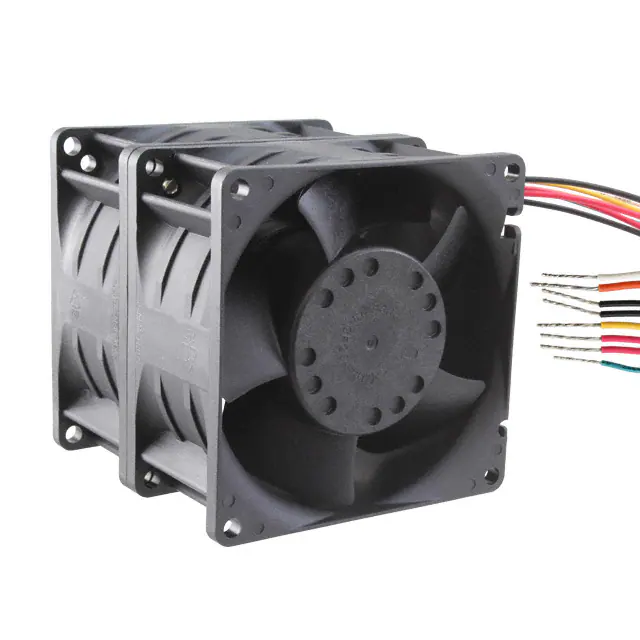

GFC0812DW-DV55FAN AXIAL DUAL 80X80MM 12VDC |
4,871 |
|
Datasheet |
GFC | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 165.3 CFM (4.63m³/min) | 3.990 in H2O (993.9 Pa) | Ball | 80.00mm | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.7dB(A) | 69.9 W | 12000 Front, 10500 Rear | CE, cURus, TUV | 4 Wire Leads per Fan | 14 ~ 158°F (-10 ~ 70°C) | - | 0.904 lb (410.05 g) |
