Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Capacitance | Tolerance | Current | DC Resistance (DCR) (Max) | Operating Temperature | Voltage - Rated | Insertion Loss | Temperature Coefficient | Ratings | Mounting Style | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2499-003-X5W0-502PCAP FEEDTHRU 5000PF 500V AXIAL |
1,265 |
|
Datasheet |
2499 | Axial, Bushing | Bulk | Active | 5000 pF | 0%, +100% | 20 A | - | -55°C ~ 85°C | 500V | 30dB @ 100MHz | X5W | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
|
|
2499-003-X7W0-103ZCAP FEEDTHRU 0.01UF 250V AXIAL |
3,697 |
|
Datasheet |
2499 | Axial, Bushing | Bulk | Active | 10000 pF | -20%, +80% | 20 A | - | -55°C ~ 125°C | 250V | - | X7W | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - | 12-28 |
|
|
2499-540-X7W0-502ZCAP FEEDTHRU 5000PF 500V AXIAL |
1,693 |
|
Datasheet |
2499 | Axial, Bushing | Bulk | Active | 5000 pF | -20%, +80% | 10 A | - | -55°C ~ 125°C | 500V | - | X7W | - | - | 0.236" Dia x 0.610" L (6.00mm x 15.50mm) | - | - |
-Series.jpg)
|
SFJEC0500225MX1CAP FEEDTHRU 2.2UF 20% 50V AXIAL |
4,375 |
|
Datasheet |
SFJE | Axial, Bushing | Bulk | Obsolete | 2.2 µF | ±20% | 15 A | - | -55°C ~ 125°C | 50V | - | X7R | - | - | 0.386" Dia x 0.370" L (9.80mm x 9.40mm) | - | 1/4-28 |
|
|
SFJEL0500225MX0CAP FEEDTHRU 2.2UF 20% 50V AXIAL |
3,795 |
|
Datasheet |
SFJE | Axial, Bushing | Bulk | Obsolete | 2.2 µF | ±20% | 15 A | - | -55°C ~ 125°C | 50V | - | X7R | - | - | 0.386" Dia x 0.370" L (9.80mm x 9.40mm) | - | 1/4-28 |
|
|
SFJEL0500225MX1CAP FEEDTHRU 2.2UF 20% 50V AXIAL |
4,852 |
|
Datasheet |
SFJE | Axial, Bushing | Bulk | Obsolete | 2.2 µF | ±20% | 15 A | - | -55°C ~ 125°C | 50V | - | X7R | - | - | 0.386" Dia x 0.370" L (9.80mm x 9.40mm) | - | 1/4-28 |
|
4300-000LFCAP FEEDTHRU 200V AXIAL |
3,874 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 5 A | - | -55°C ~ 125°C | 200V | 3dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4300-006LFFILTER EMI 15000 PF C TYPE |
3,814 |
|
Datasheet |
4300 | Axial | Bulk | Active | 0.015 µF | - | 5 A | - | -55°C ~ 125°C | - | - | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4300-022LFCAP FEEDTHRU 200V AXIAL |
2,450 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 5 A | - | -55°C ~ 125°C | 200V | 20dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|

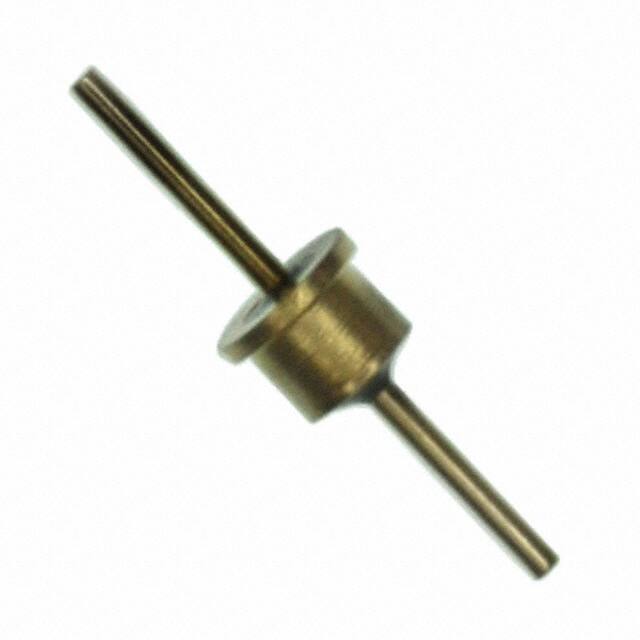

4300-034LFCAP FEEDTHRU 50V AXIAL |
3,810 |
|
Datasheet |
4300 | Axial | Bulk | Active | - | - | 5 A | - | -55°C ~ 125°C | 50V | 45dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4300-681LFCAP FEEDTHRU 200V AXIAL |
2,697 |
|
Datasheet |
4300 | Axial | Tray | Active | - | - | 5 A | - | -55°C ~ 125°C | 200V | - | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4306-003LFCAP FEEDTHRU 500PF 200V AXIAL |
1,057 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 500 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 35dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-004LFCAP FEEDTHRU 5000PF 100V AXIAL |
4,194 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 5000 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 100V | 25dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-006LFCAP FEEDTHRU 25PF 200V AXIAL |
4,800 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 25 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 10dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-008LFCAP FEEDTHRU 1000PF 200V AXIAL |
2,418 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 1000 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 20dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-009LFCAP FEEDTHRU 1500PF 200V AXIAL |
4,691 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 1500 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 22dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-010LFCAP FEEDTHRU 0.01UF 50V AXIAL |
3,201 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 10000 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 50V | 35dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-013LFCAP FEEDTHRU 10PF 200V AXIAL |
4,934 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 10 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 5dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-014LFCAP FEEDTHRU 100PF 200V AXIAL |
2,065 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 100 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 3dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-015LFCAP FEEDTHRU 2700PF 100V AXIAL |
2,524 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 2700 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 100V | 25dB @ 100MHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
