Feed Through Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Capacitance | Tolerance | Current | DC Resistance (DCR) (Max) | Operating Temperature | Voltage - Rated | Insertion Loss | Temperature Coefficient | Ratings | Mounting Style | Size / Dimension | Height (Max) | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1609993-8CAP FEEDTHRU 0.1UF 130V AXIAL |
3,021 |
|
Datasheet |
FFD | Axial - Threaded Terminals | Bulk | Obsolete | 0.1 µF | - | 16 A | 8mOhm | -40°C ~ 60°C | 130V | - | - | - | - | 0.787" Dia x 3.701" L (20.00mm x 94.00mm) | - | M4 |
|
B85321-A2405-A630FILTER LC(PI) 2UF TH |
3,458 |
|
Datasheet |
B85321 | Axial - Threaded Terminals | Bulk | Obsolete | - | - | 63 A | - | -40°C ~ 85°C | 600V | - | - | - | Through Hole | - | - | - |
|
1-1609990-1CAP FEEDTHRU 0.033UF 250V AXIAL |
3,228 |
|
Datasheet |
AFC | Axial - Threaded Terminals | Bulk | Obsolete | 0.033 µF | - | 32 A | - | -40°C ~ 60°C | 250V | 48dB @ 100MHz | - | Y2 | - | 0.787" Dia x 1.181" L (20.00mm x 30.00mm) | - | M4 |
|

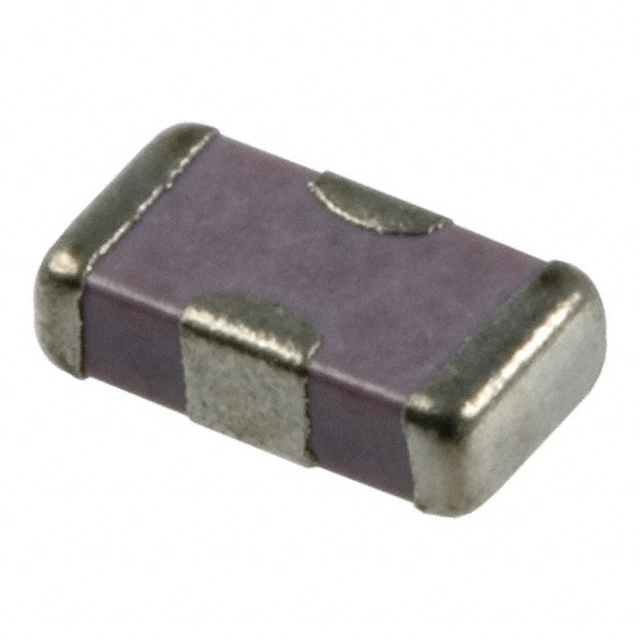

W3H15C4738AT1FCAP FEEDTHRU 0.047UF 50V 0612 |
4,766 |
|
Datasheet |
W3H | 0612 (1632 Metric) | Tape & Reel (TR) | Obsolete | 0.047 µF | -20%, +50% | 5 A | 150mOhm | -55°C ~ 125°C | 50V | - | X7R | - | Surface Mount | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.048" (1.22mm) | - |
|
|
W3H15C1038AT1FCAP FEEDTHRU 0.01UF 50V 0612 |
1,146 |
|
Datasheet |
W3H | 0612 (1632 Metric) | Tape & Reel (TR) | Obsolete | 10000 pF | -20%, +50% | 3 A | 150mOhm | -55°C ~ 125°C | 50V | - | X7R | - | Surface Mount | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.048" (1.22mm) | - |
|
|
W3H11A4718AT1FCAP FEEDTHRU 470PF 100V 0612 |
2,433 |
|
Datasheet |
W3H | 0612 (1632 Metric) | Tape & Reel (TR) | Obsolete | 470 pF | -20%, +50% | 4 A | 150mOhm | -55°C ~ 125°C | 100V | - | C0G, NP0 | - | Surface Mount | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.048" (1.22mm) | - |
|
|
W3H11A1018AT1FCAP FEEDTHRU 100PF 100V 0612 |
3,726 |
|
Datasheet |
W3H | 0612 (1632 Metric) | Tape & Reel (TR) | Obsolete | 100 pF | -20%, +50% | 4 A | 150mOhm | -55°C ~ 125°C | 100V | - | C0G, NP0 | - | Surface Mount | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.048" (1.22mm) | - |
|
2425-001-X5U0-152AALFCAP FEEDTHRU 200V AXIAL |
2,331 |
|
Datasheet |
2425 | Axial, Bushing, 1 Turret Lead | Bulk | Active | - | - | 20 A | - | -55°C ~ 85°C | 200V | - | X5U | - | - | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - | 8-32 |
|
2443-007-X5S0-102MLFCAP FEEDTHRU 1000PF 500V AXIAL |
3,476 |
|
Datasheet |
2443 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 1000 pF | ±20% | - | - | -55°C ~ 85°C | 500V | - | X5S | - | - | 0.312" Dia x 0.886" L (7.92mm x 22.51mm) | - | 1/4"-28 |
|
2443-007-X5W0-502ZLFCAP FEEDTHRU 5000PF 500V AXIAL |
1,391 |
|
Datasheet |
2443 | Axial, Bushing - 2 Hooked Leads | Bulk | Active | 5000 pF | -20%, +80% | - | - | -55°C ~ 85°C | 500V | 30dB @ 100MHz | X5W | - | - | 0.312" Dia x 0.668" L (7.92mm x 16.97mm) | - | 1/4"-28 |
|
2461-000-X7V0-152PLFCAP FEEDTHRU 1500PF 100V AXIAL |
3,527 |
|
Datasheet |
2461 | Axial, Shoulder - No Leads | Bulk | Active | 1500 pF | 0%, +100% | - | - | -55°C ~ 125°C | 100V | - | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
|

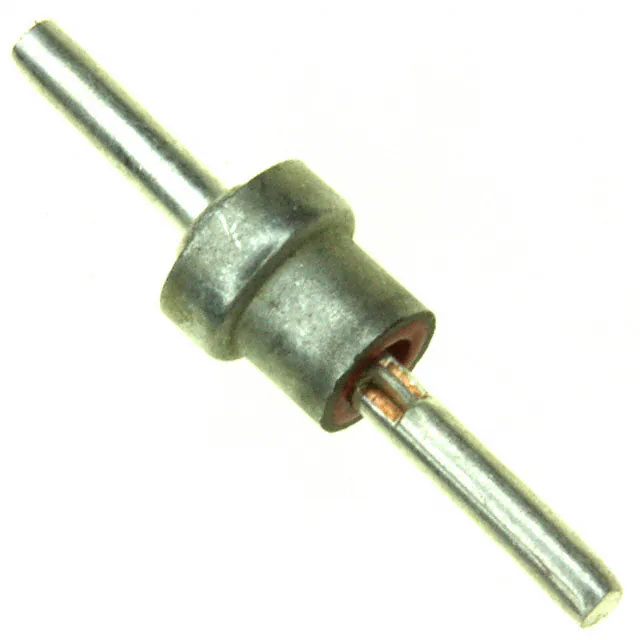

2461-001-X7V0-152PLFCAP FEEDTHRU 1500PF 100V AXIAL |
4,462 |
|
Datasheet |
2461 | Axial, Shoulder | Bulk | Active | 1500 pF | 0%, +100% | 20 A | - | -55°C ~ 125°C | 100V | - | X7V | - | Chassis Mount | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | - |
|
4304-003LFCAP FEEDTHRU 100PF 200V AXIAL |
2,729 |
|
Datasheet |
4304 | Axial, Press Fit | Bulk | Active | 100 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 3dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|

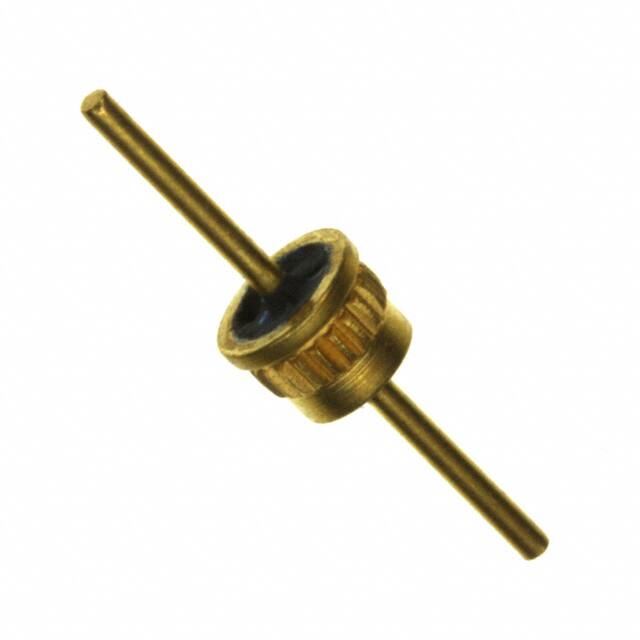

4304-011LFCAP FEEDTHRU 0.05UF 50V AXIAL |
3,261 |
|
Datasheet |
4304 | Axial, Press Fit | Bulk | Active | 0.05 µF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 50V | 45dB @ 100MHz | - | - | - | 0.156" Dia x 0.110" L (3.96mm x 2.79mm) | - | - |
|
4306-005LFCAP FEEDTHRU 50PF 200V AXIAL |
3,120 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 50 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 10dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-018LFCAP FEEDTHRU 50PF 200V AXIAL |
4,814 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | 50 pF | 0%, +100% | 5 A | - | -55°C ~ 125°C | 200V | 10dB @ 1GHz | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4306-681LFCAP FEEDTHRU 200V AXIAL |
1,713 |
|
Datasheet |
4306 | Axial, Press Fit | Bulk | Active | - | - | 5 A | - | -55°C ~ 125°C | 200V | - | - | - | - | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | - | - |
|
4400-008LFCAP FEEDTHRU 200V AXIAL |
1,122 |
|
Datasheet |
4400 | Axial, Bushing | Bulk | Active | - | - | 10 A | - | -55°C ~ 125°C | 200V | 5dB @ 1GHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|
4400-032LFCAP FEEDTHRU 200V AXIAL |
3,470 |
|
Datasheet |
4400 | Axial, Bushing | Bulk | Active | - | - | 10 A | - | -55°C ~ 125°C | 200V | 20dB @ 100MHz | - | - | - | 0.156" Dia x 0.340" L (3.97mm x 8.64mm) | - | 4-40 |
|
4401-014LFCAP FEEDTHRU 200V AXIAL |
4,988 |
|
Datasheet |
4401 | Axial, Bushing | Tray | Active | - | - | 10 A | - | -55°C ~ 125°C | 200V | 3dB @ 100MHz | - | - | - | 0.187" Dia x 0.130" L (4.75mm x 3.31mm) | - | 8-36 |
